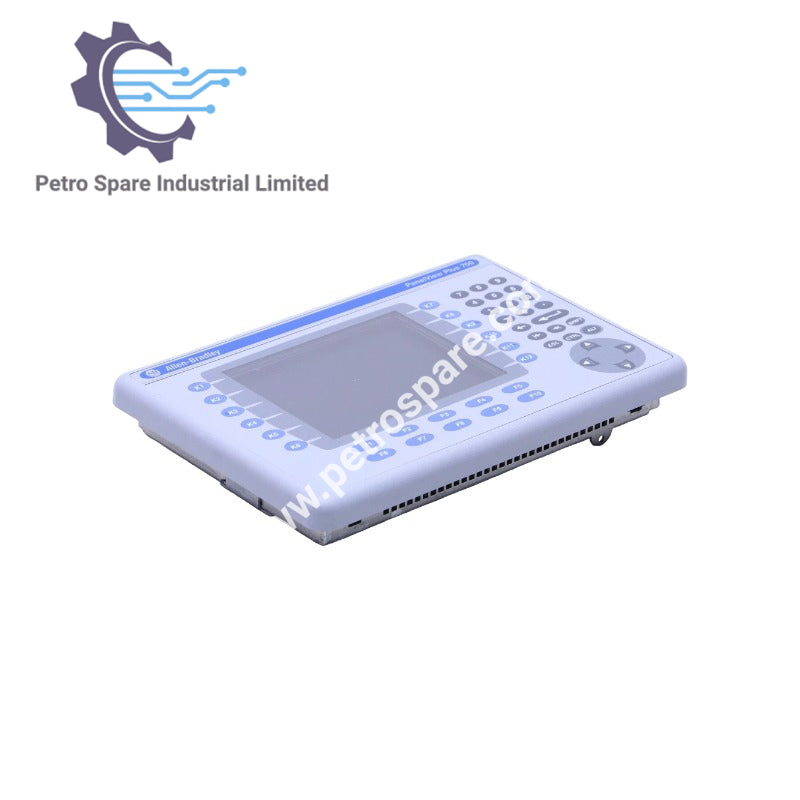

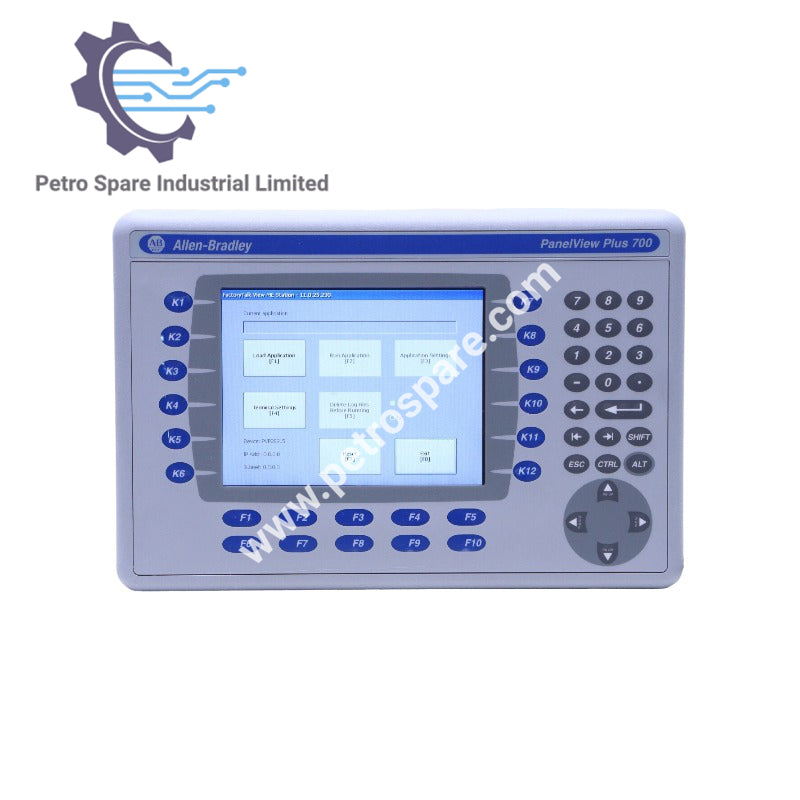

2711P-RDB7C

Product Overview

The Allen‑Bradley 2711P-RDB7C is a display module compatible with PanelView Plus and PanelView Plus 6 700 Touch and Keypad terminals, featuring a 6.5‑inch color active matrix TFT screen with 18‑bit color graphics and support for animations.

General Specifications

• Product Family: PanelView Plus Graphic Terminals
• Description: Display Module
• Compatibility: PanelView Plus 1000 / PanelView Plus 6 Touch terminals

Display Specifications

• Display Type: Color active matrix, thin‑film transistor (TFT) with liquid crystal display (LCD)
• Display Size: 6.5 inches
• Display Area: 132 x 99 mm (5.2 x 3.9 in)
• Resolution: 640 x 480
• Display Colors: 18‑bit color graphics
• Luminance: 300 cd/m²
• Anti‑Glare Overlay: Not included

Input Interface

• Input Interface: Touch / Keypad
• Touch Input: 8‑wire analog resistive
• Touch Interface Lifespan: 1 million actuations
• Actuation Force: 10‑110 g

Weight

• Weight: 2.75 lbs (1.25 kg)

---
