2711-T9C8

Product Overview

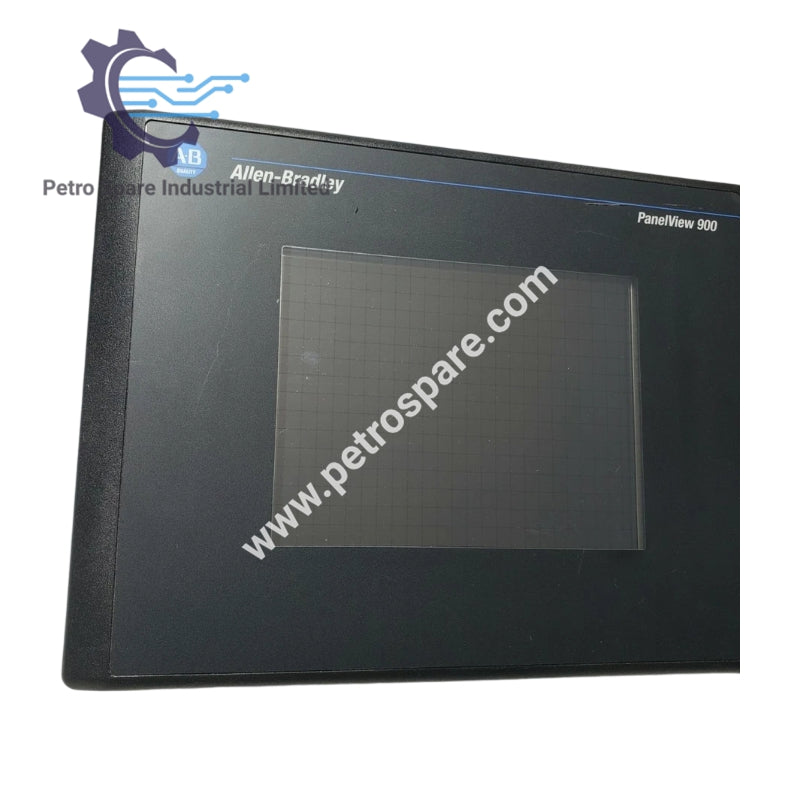

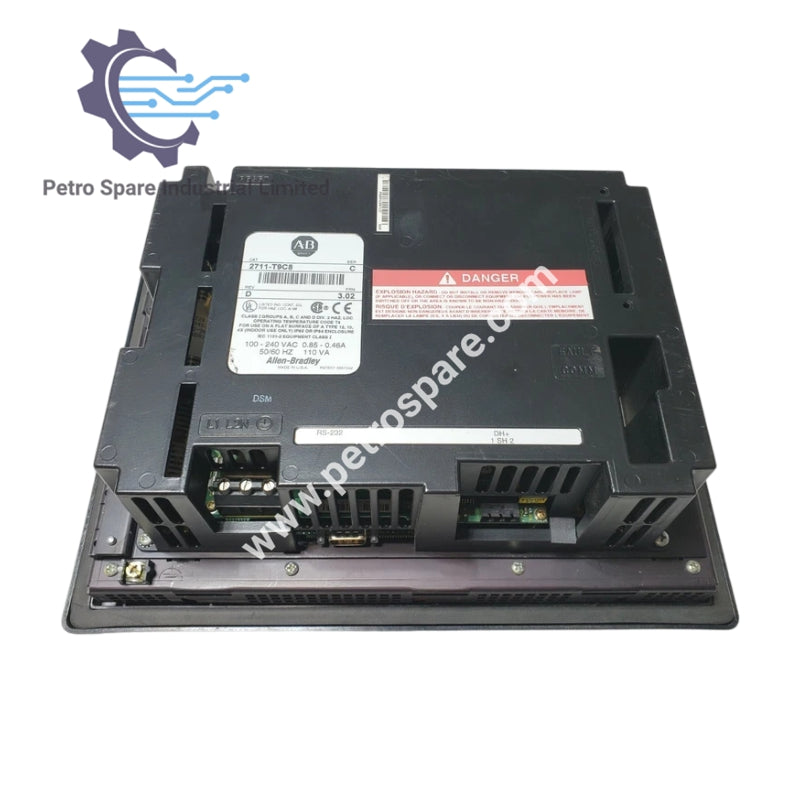

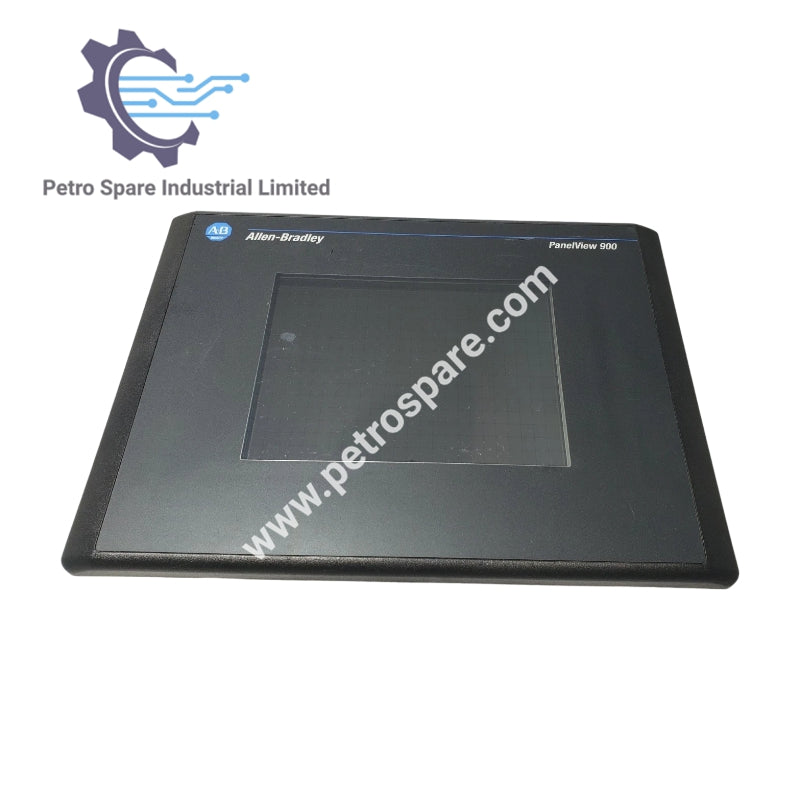

The Allen-Bradley 2711-T9C8 is a PanelView 900 Standard Operator Terminal.

Technical Specifications

Manufacturer: Allen-Bradley
Product Line: PanelView 900
Display Size: 9 in.
Display Type: Active Matrix Thin-Film Resistor (TFT) with CCF backlight
Display Color: Color
Display Resolution: 640 × 480
Display Area: 210 × 131 mm (8.27 × 5.17 in.)

Touchscreen: Analog resistive touchscreen, 384 touch cells (24 × 16 grid), 26 × 30 pixel cell size
Input Type: Touch

Communication Ports: Data Highway Plus (DH+), RS-232 printer interface
Communication Cable: 2711-NC13

Input Voltage Range: 85–264 VAC, 47–63 Hz
Input Power: 120 VAC
Heat Dissipation: 39 W (132 BTU/hr)

Operating Temperature: 0–55 °C (32–131 °F)
Backlight Life: 100,000 hours LED backlight

Application Memory: 240 KB (pre-Series E), 1008 KB (Series E)
Memory: 1008 KB

Weight: 7.00 lbs (3.18 kg)
Series: A, B, C, D, E, F
Lifecycle Status: Discontinued / Obsolete

---
