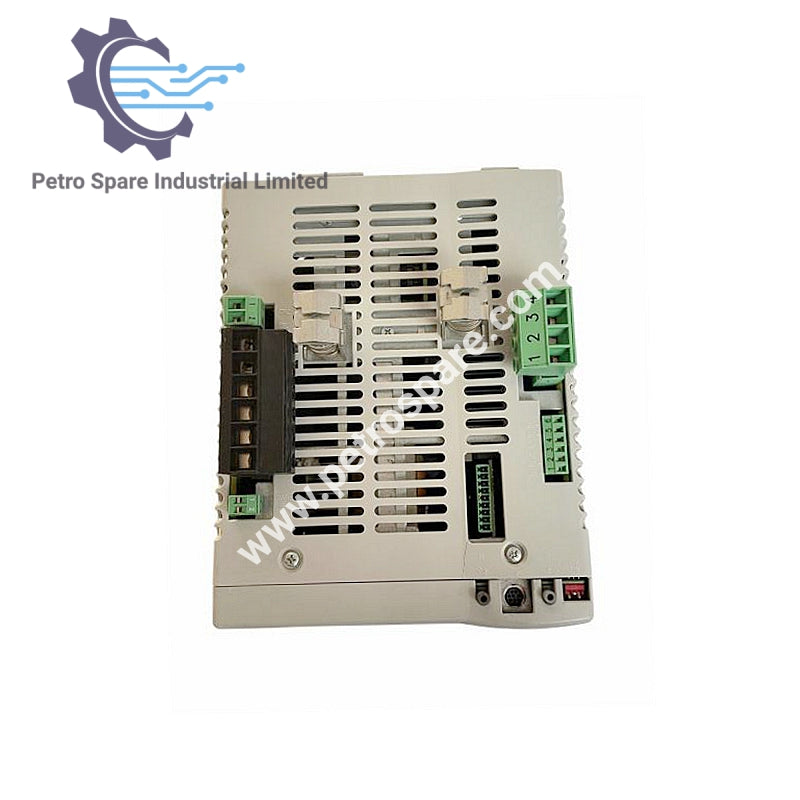

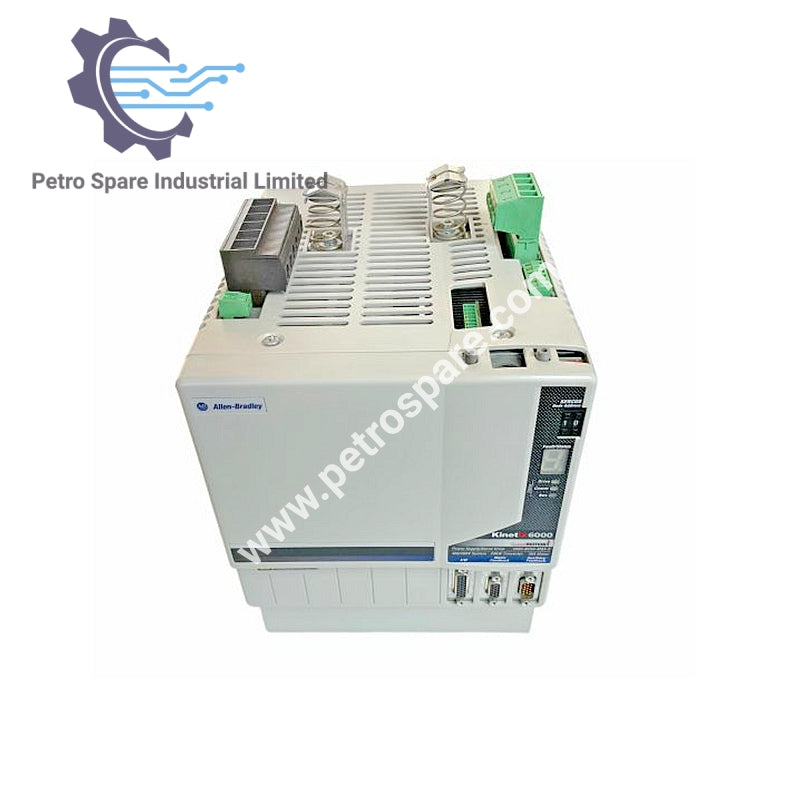

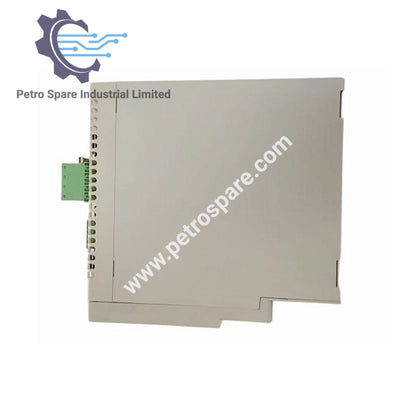

2094-BC04-M03-S

Overview

• Model: 2094-BC04-M03-S

• Type: Multi‑Axis Servo Drive (Integrated Axis Module, IAM 400 V Class)

• Application: Modular servo drive for Kinetix 6000 systems, providing integrated axis control with Safe Torque Off functionality

Electrical Characteristics

• AC Input Voltage Range: 324 … 528 V rms, 3‑phase (nominal 360 … 480 V)

• AC Input Frequency: 47 … 63 Hz

• AC Input Current (nominal rms): 44 A

• AC Input Current (max inrush, 0‑peak): 31.1 A

• DC Input Voltage (Common Bus Follower): 458 … 747 V

• DC Input Current (Common Bus Follower): 41.5 A

• Converter Section Output: 28 kW

• Inverter Section Output Current: 30 A

• Power Dissipation: 94 … 255 W

Performance

• Bandwidth:

  • Velocity Loop: 500 Hz

  • Current Loop: 1300 Hz

• PWM Frequency: 4 kHz

• Axis Control: Integrated Axis Module (IAM)

• Safety Feature: Safe Torque Off

Shunt Specifications

• Internal Shunt Continuous Power: 200 W

• Internal Shunt Peak Power: 22.5 kW

• Internal Shunt Resistor: 28.75 Ω

Mechanical Specifications

• Module Location: Leftmost of the power rail

• Operating Temperature: 0 … 50 °C (32 … 122 °F)

---
