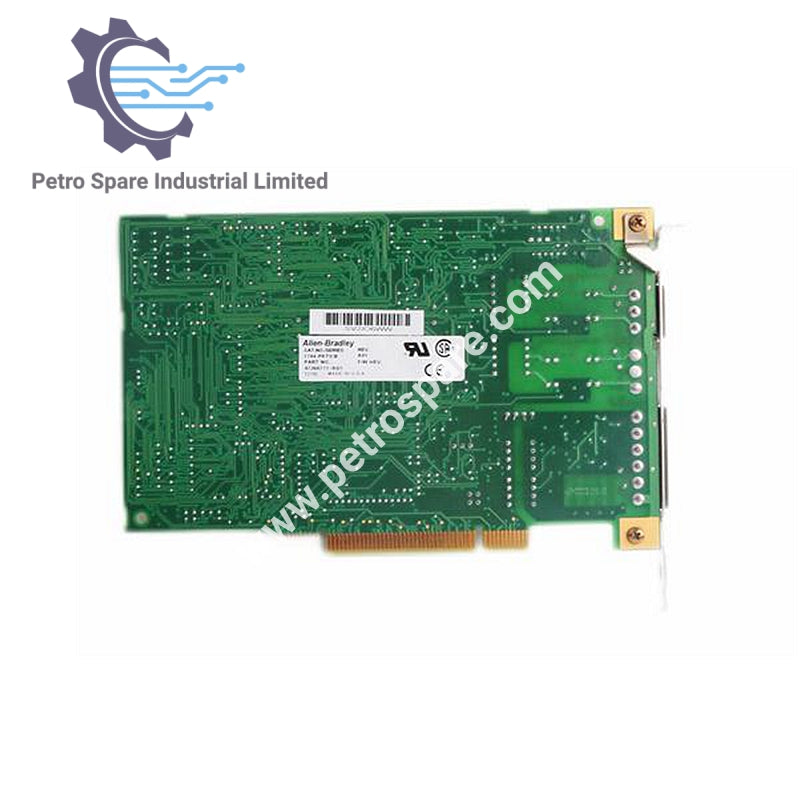

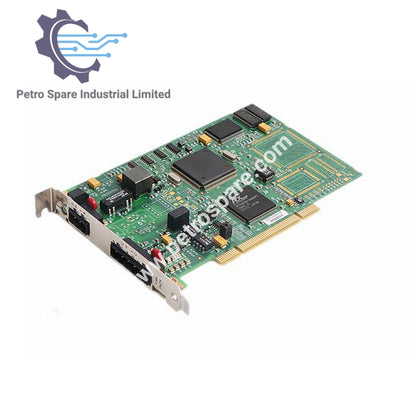

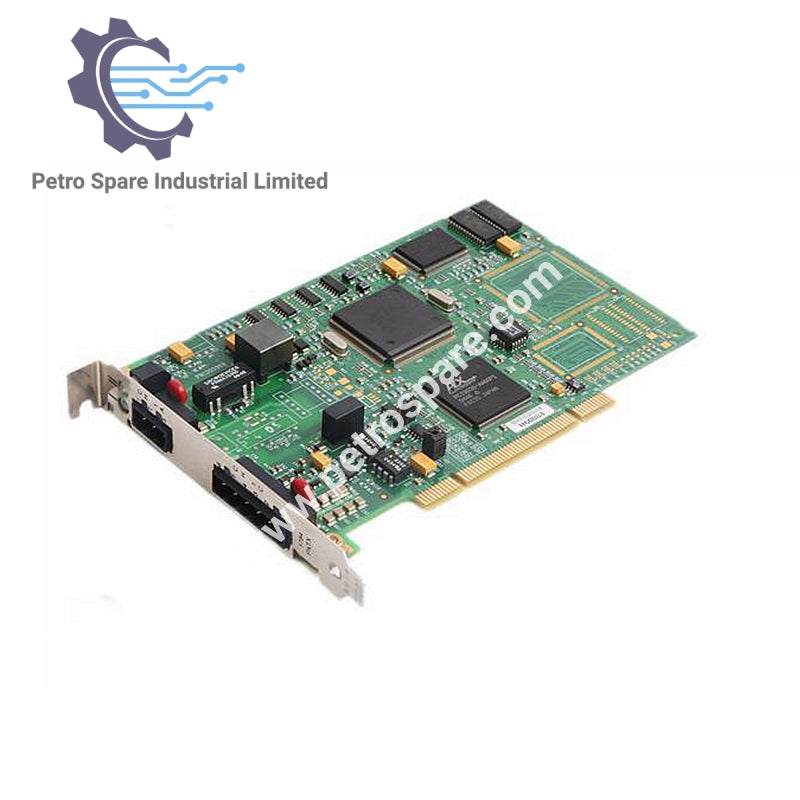

1784-PKTX

Overview

• Model: 1784-PKTX

• Type: Network Interface Card

• Series: Rockwell Allen-Bradley

• Module Type: Bus Communication Card

• Weight: 0.56 lbs (0.26 kg)

Communication Specification

• Protocols Supported: Data Highway Plus (DH+), Remote I/O (RIO), DH-485

• Communication Channels:

  • Channel 1A: DH+ / RIO

  • Channel 1C: DH-485

• Remote I/O Scanner: Supported

• DH+ / RIO Cable & Communication Distance:

  • 10,000 ft (3048 m) @ 57.6K bit/s

  • 5,000 ft (1524 m) @ 115.2K bit/s

  • 2,500 ft (762 m) @ 230.4K bit/s

• DH-485 Cable & Communication Distance:

  • 4,000 ft (1219 m) @ 1200–19,200 bit/s

Hardware Specification

• PCI Compliance: PCI 2.3

• Channels:

  • 1A: 3-pin Phoenix (DH+ & RIO)

  • 1C: 6-pin Phoenix (DH-485)

• Status LEDs: 1 diagnostic/status LED per channel

• Wiring Arm: 1771-WN

• External Power: Not required

• Max. Modules per System: 4

• Coating: Conformal coat

Signal Delay

• Typical AC Signal Delay (Off): 29 ms (±8 ms)

• Typical DC Signal Delay (Off): 30 ms (±7 ms)

---
