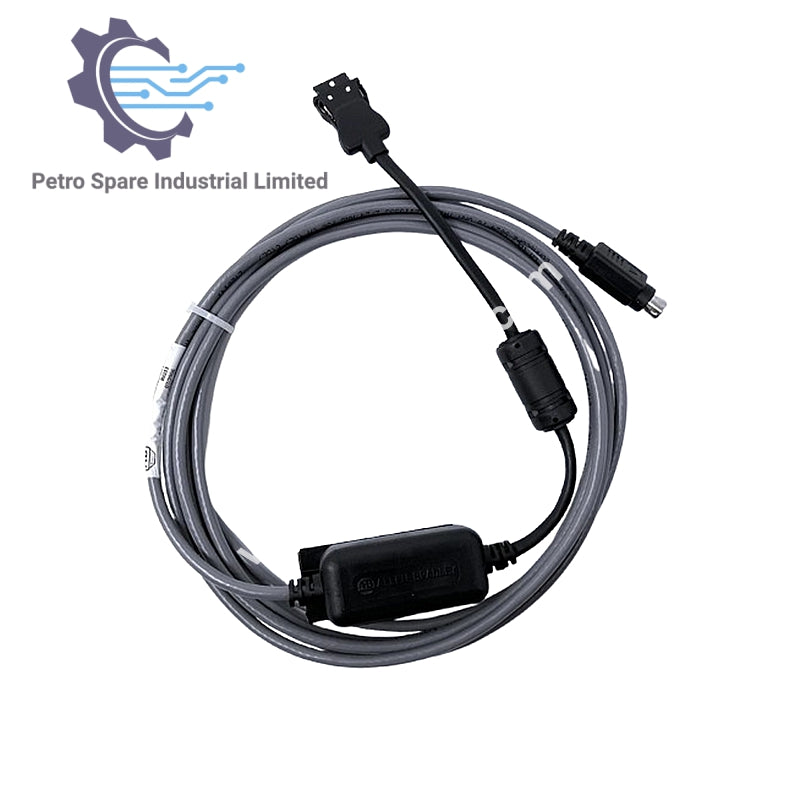

1784-PCM6

Overview

• Model: 1784-PCM6

• Type: DH+ Communication Cable

• Series: Rockwell Allen-Bradley

• Length: 10 ft

• Connector: 8-pin

Communication Specification

• Protocol: Data Highway Plus (DH+)

• Communication Speed: 230 Kbps

• PC Connections: Supported

• Loopback Connector: Not included

Accessories

• Included: 2 wedges (for strain relief and secure connection)

• Function: Prevent accidental disconnection and protect connector/PCMK card

• Installation Note: Wedges use strong adhesive; once attached, they cannot be removed

Environmental & Usage Notes

• Application: Used to connect 1784-PCMK communication cards to a computer

• Enclosure: Open-style cable

---
