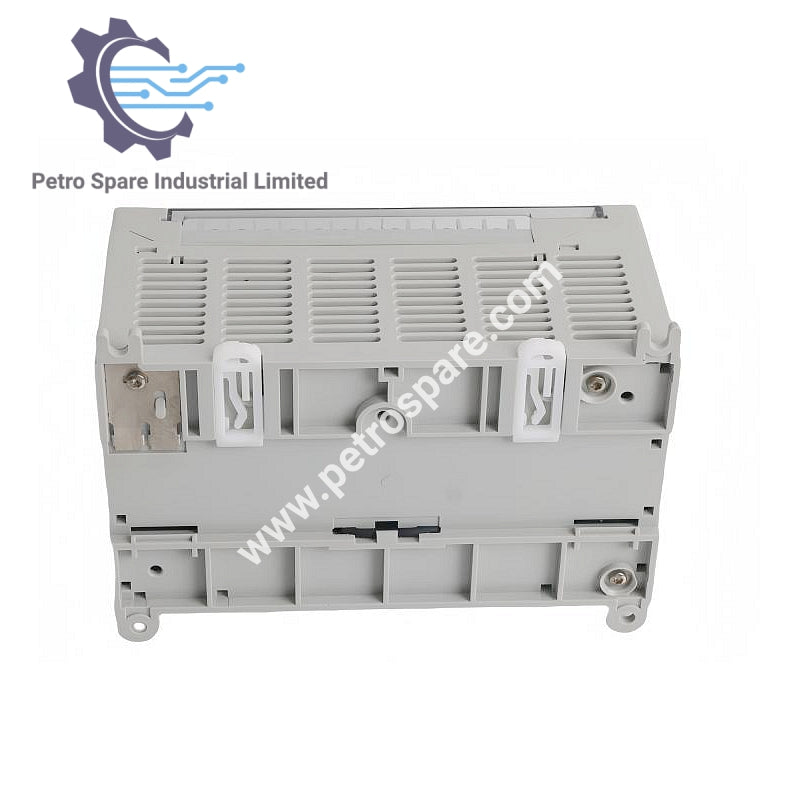

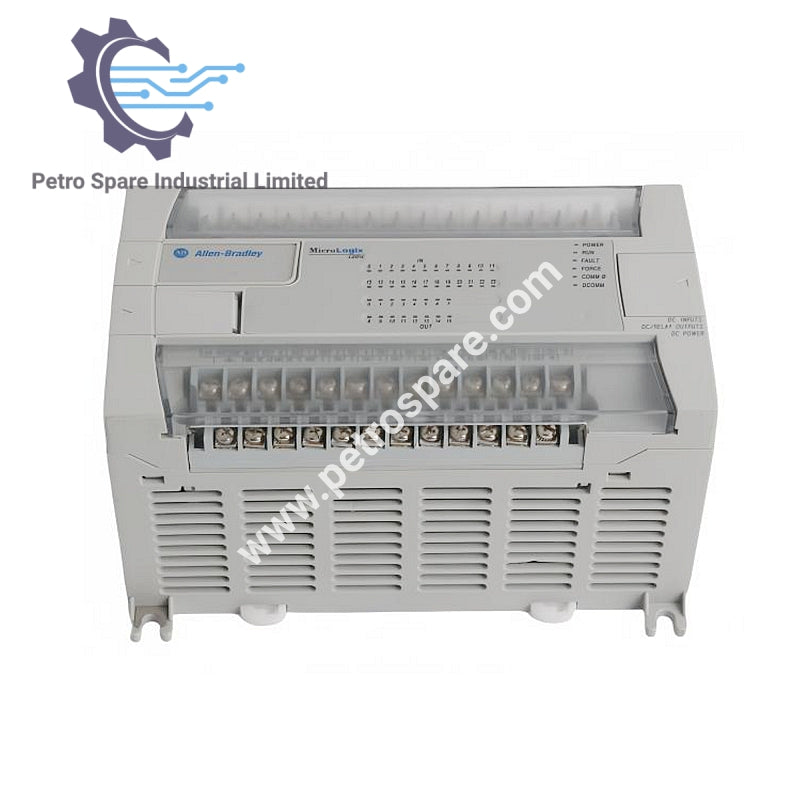

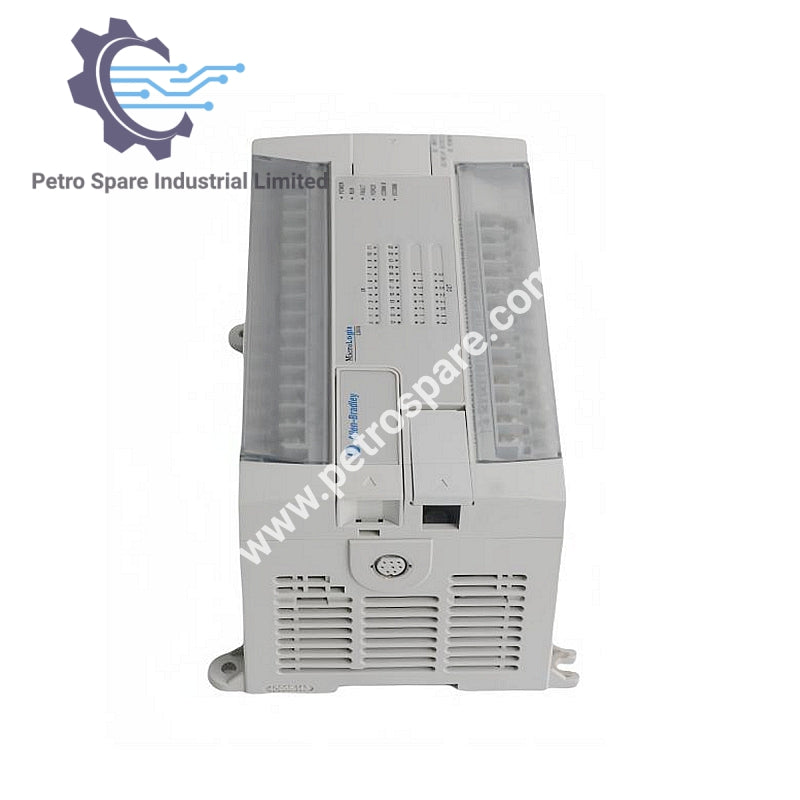

1762-L40BXB

Overview

1762-L40BXB is a MicroLogix 1200 programmable controller from Allen-Bradley, offering mixed I/O, flexible power options, and compact control for industrial automation.

Electrical Specifications

• Power Supply: 24V DC (–15%, +10%), Class 2 SELV

• Input Power: 24V DC

• Power Supply Voltage: 100 to 240V AC

• Power Supply Usage: 82 VA

• Heat Dissipation: 21 Watts

I/O Configuration

• Number of Inputs: 24 total

  • (20) 24V DC

  • (4) Fast 24V DC

• Number of Outputs: 16 total

  • (8) Relay

  • (7) 24V DC FET

  • (1) High-Speed 24V DC FET

• Input Circuit Type: 24V DC Sink/Source

• Output Circuit Type: Relay / FET

• Relay Contact Rating: 24–125V DC; 120–240V AC

• Mechanical Cycles: 20,000,000

• Load Current: 10A minimum

Environmental Ratings

• Ambient Operating Temperature: 0 to 55°C

---
