1761-NET-ENI

Overview

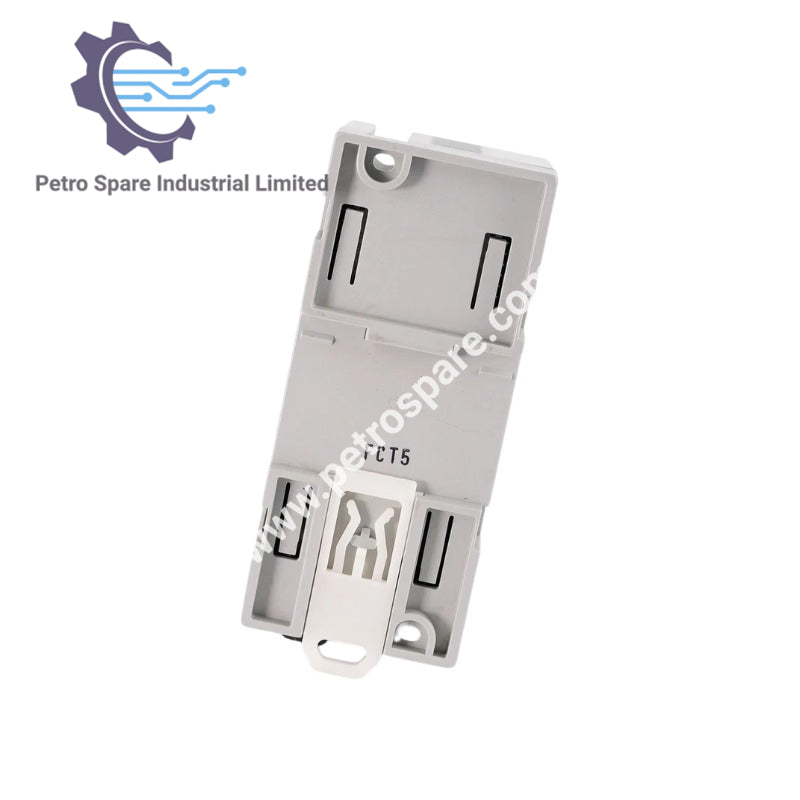

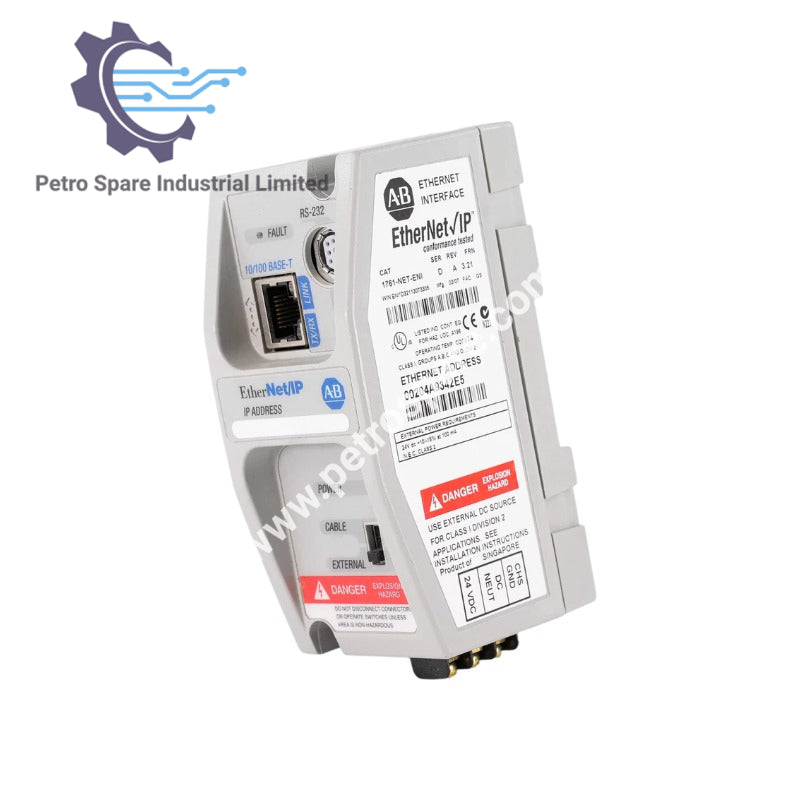

The Allen‑Bradley 1761-NET-ENI is an Ethernet interface module designed for MicroLogix controllers.

Electrical Parameters (Power Supply & Consumption)

• Supply voltage requirement: 24V dc, allowable range 20.4 to 26.4V dc.
• Current draw: 50 mA typical, 100 mA maximum.
• Maximum inrush current: 200 mA.
• Internal isolation withstand voltage: 710V dc for 1 minute.

Mechanical & Environmental Ruggedness (Vibration & Shock)

• Vibration (operating): 10 to 500 Hz, 5.0g acceleration, 0.030 in. peak‑to‑peak displacement, 2 hours per axis.
• Shock (operating): 30g, ±3 shocks per axis.
• Shock (non‑operating): 35g for DIN rail mount, 50g for panel mount, ±3 shocks per axis.

Temperature & Humidity Operating Ranges

• Operating ambient temperature: 0°C to +60°C (+32°F to +140°F).
• Storage temperature: –40°C to +85°C (–40°F to +185°F).
• Relative humidity: 5% to 95%, non‑condensing.

---
