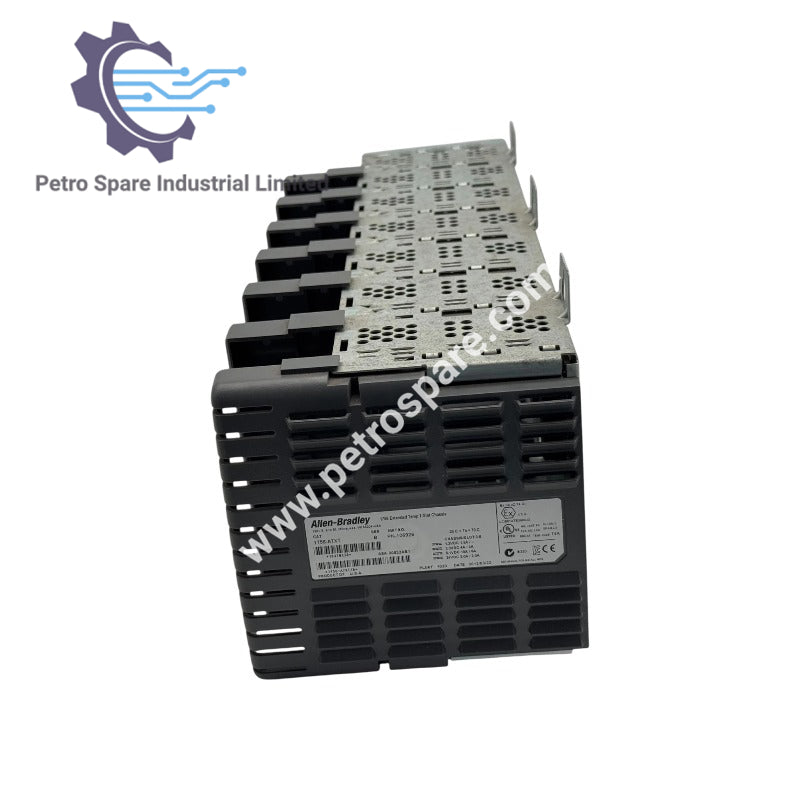

1756-A7XT

Overview

• Product type designation: ControlLogix-XT Chassis
• Model: 1756-A7XT
• Description: 7-slot extended temperature (XT) chassis for ControlLogix systems, designed for harsh environment applications
• Number of slots: 7
• Enclosure type: Open style
• IP rating: IP00
• Temperature code: T4
• Conformal coated: Yes

Power and Backplane

• Power dissipation: 4.5 W
• Backplane current, chassis: 2.8 A

Environmental Specifications

• Operating temperature: -25 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Operating humidity: 5 to 95% (non-condensing)

Physical Specifications

• Weight: 3.00 lbs (1.36 kg)

---
