1734-IM4

Overview

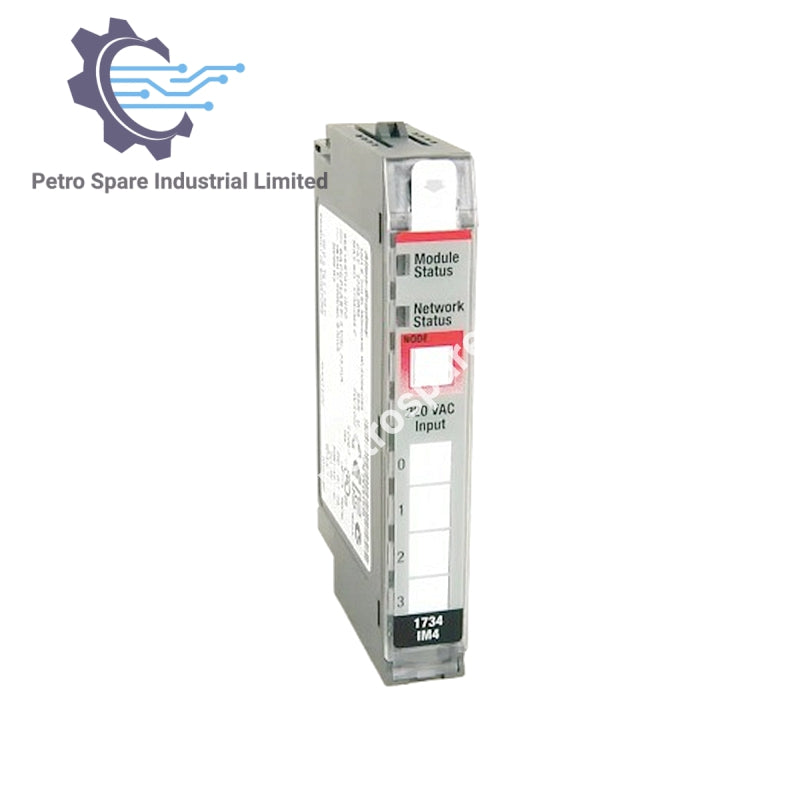

1734-IM4 is an Allen-Bradley POINT I/O input module with 4 nonisolated sinking channels, designed for 220 V AC signal acquisition in distributed control systems.

Identification

• Part number: 1734-IM4

• Type: POINT I/O Input Module

• Inputs: 4 (1 group of 4, nonisolated, sinking)

Electrical Data

• On-state voltage range (min): 159 V AC

• On-state voltage range (nom): 220 V AC

• On-state voltage range (max): 264 V AC

• On-state current (min): 6.2 mA @ 159 V AC, 60 Hz

• On-state current (nom): 8.5 mA @ 220 V AC, 60 Hz

• On-state current (max): 10.2 mA @ 264 V AC, 60 Hz

• Off-state voltage (max): 43 V AC

• Off-state current (max): 2.9 mA

• Input impedance (nom): 22.3 kΩ

Timing

• Delay time: Off to On / On to Off (typical, filtered)

Installation

• Keyswitch position: 8

• Module location: 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS

Power

• POINTBus current (max): 75 mA @ 5 V DC

• Power dissipation (max): 0.80 W @ 264 V AC

---
