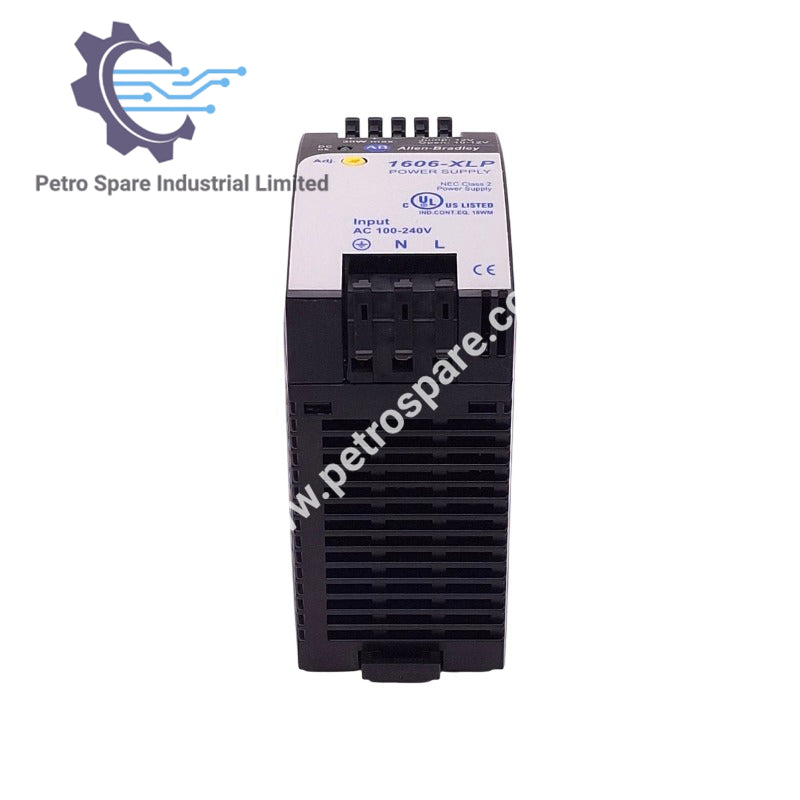

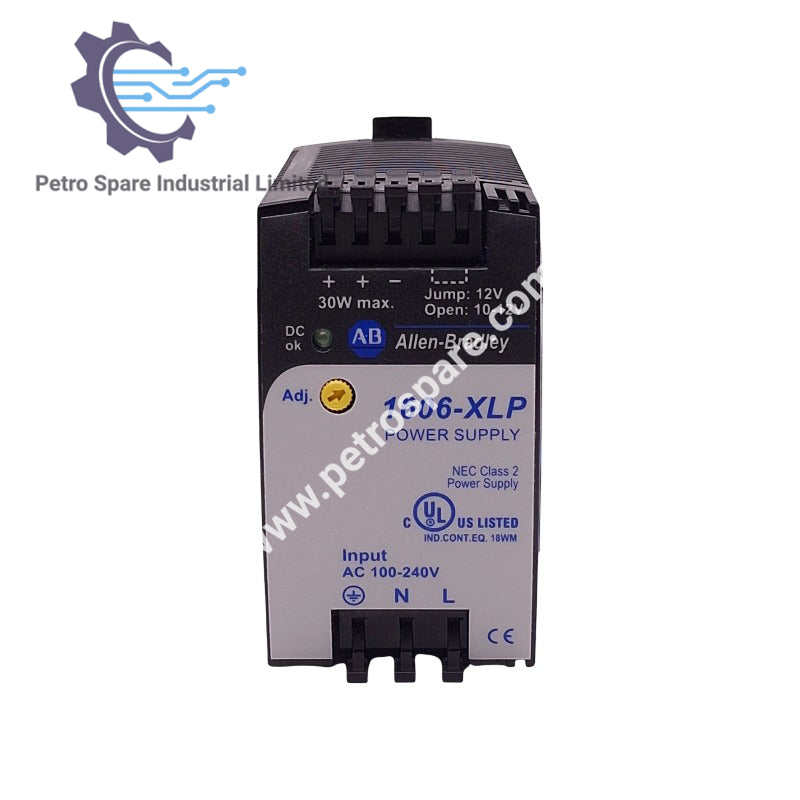

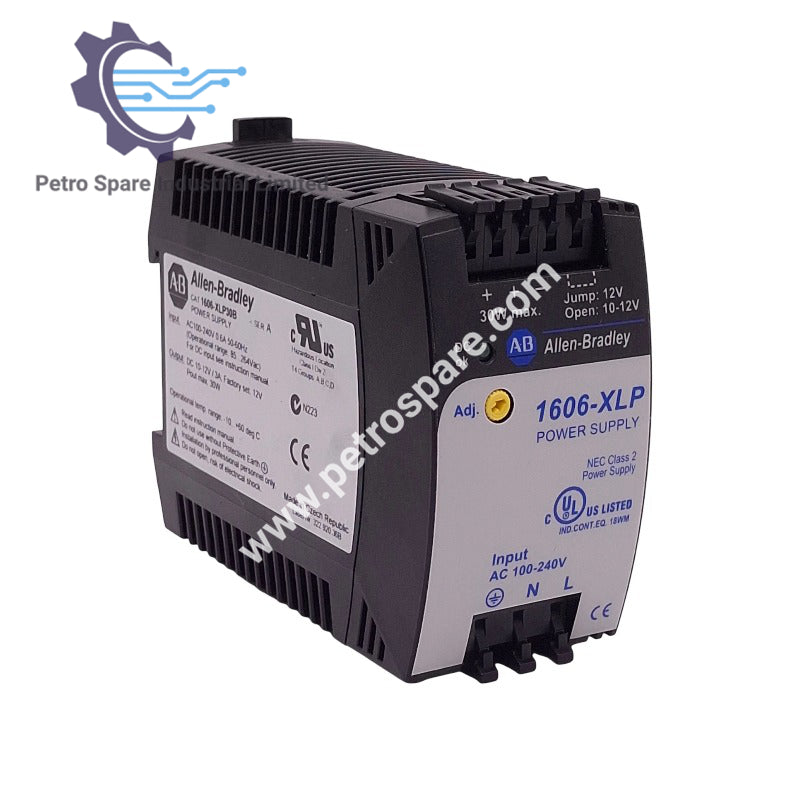

1606-XLP30B

Overview

The Allen‑Bradley 1606-XLP30B is a 30 W single‑phase switched mode power supply for industrial power distribution and protection applications.

Input Specifications

• Input type: AC, 1‑phase.
• Input frequency: 47...63 Hz (nominal 50/60 Hz).
• Input voltage (AC): 100V min, 240V max.
• Input voltage (DC): 85V min, 375V max.
• Nominal current (In): 0.25A.
• Inrush current (max): 18A.
• Nominal voltage (AC, L‑L): 230V.

Output Specifications

• Output voltage (DC): 10V min, 12V max.
• Output current (rated rms): 2.5A.
• Output current: 3A @ 10V DC; 2.5A @ 12V DC.
• Rated power (real): 30W.
• Ripple voltage (P‑P max): 10 mVpp.
• Hold‑up time (min): 18 ms.

Efficiency & Reliability

• Efficiency (min): 84%.
• MTBF (min): 650,000 hours.

Indicator & Mounting

• Indicator type: LED.
• Mounting: DIN‑35 Rail Mount.
• IP rating: IP20.

Temperature Ranges

• Operating temperature: –10°C min, +70°C max.

---
