1606-XLE240EE

Overview

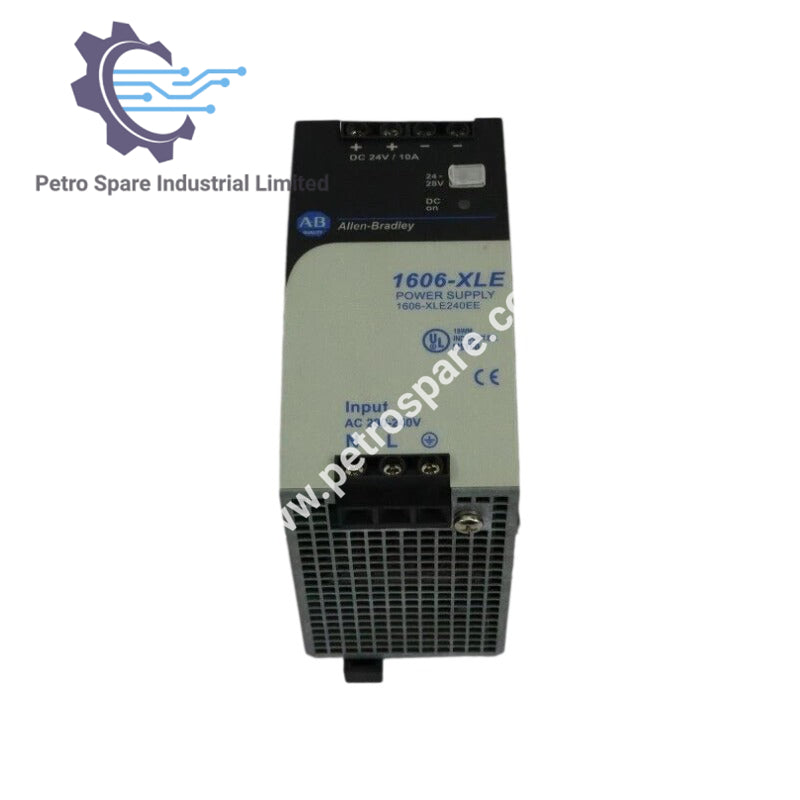

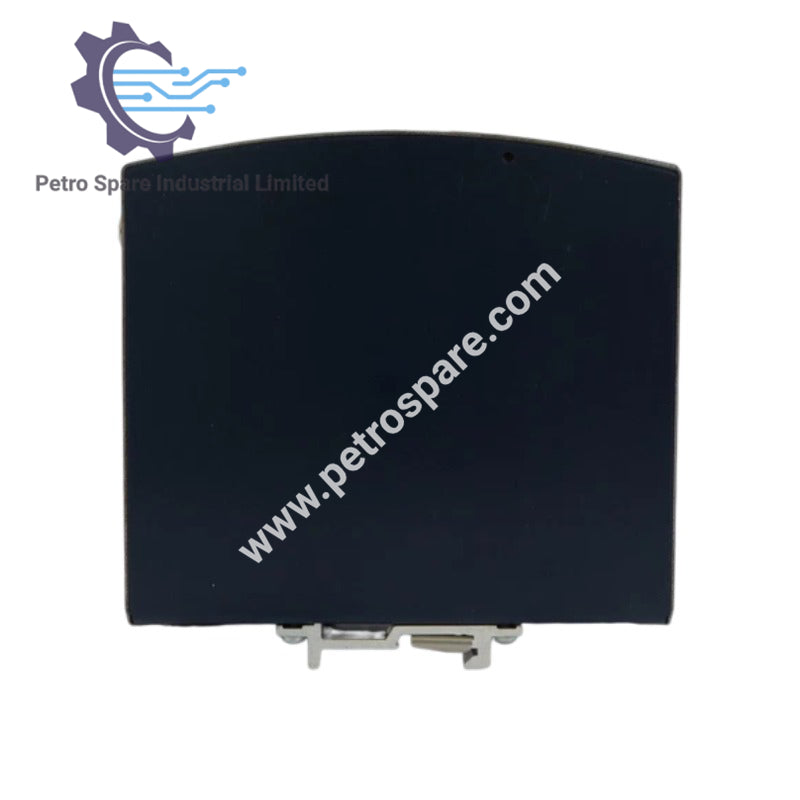

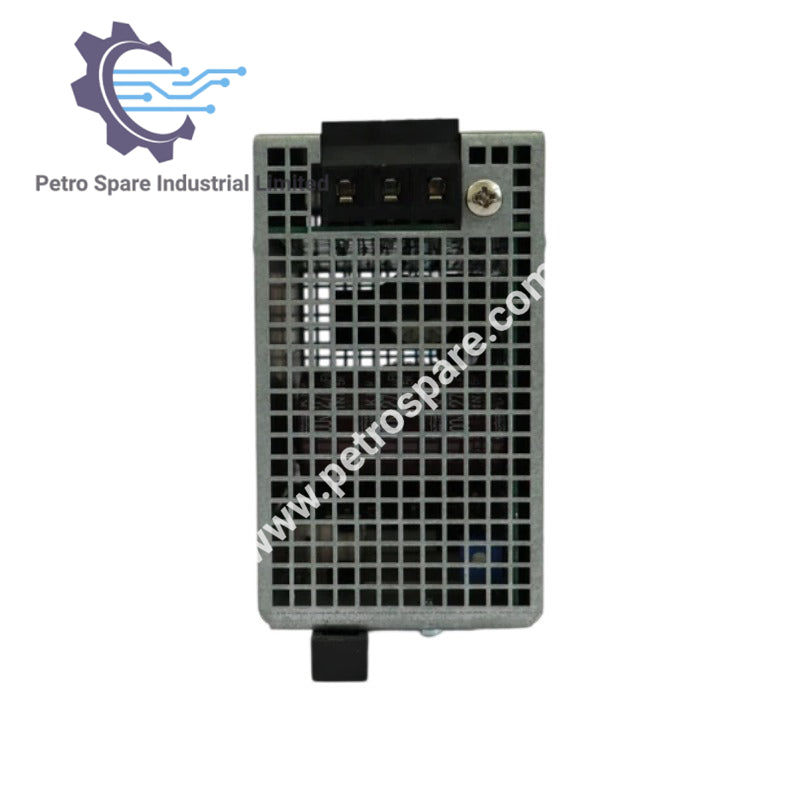

The Allen‑Bradley 1606-XLE240EE is a 240W single‑phase input power supply delivering 24V DC output for industrial applications.

Output Specifications

• Output voltage: 24V DC.
• Adjustment range: 24 – 28V.
• Output current: 10 – 8.6A (ambient <60°C); 12 – 10.3A (ambient <45°C).
• Output power: 240W (ambient <60°C); 288W (ambient <45°C).
• Output ripple: < 50mVpp (20Hz to 20MHz).

Input Specifications

• Input voltage: AC 200‑240V.
• Line frequency: 50‑60Hz ±6%.
• AC input current: typ. 2.2A at 230Vac.
• Power factor: typ. 0.52 at 230Vac.
• AC inrush current: typ. 48A peak.
• DC input: 210‑375Vdc.

Efficiency & Losses

• Efficiency: typ. 91.3% at 230Vac.
• Losses: typ. 23.4W at 230Vac.

Temperature & Derating

• Operating temperature: 0°C to +70°C.
• Derating: 6W/°C from +60°C to +70°C.

Hold‑up Time

• Hold‑up time: typ. 45ms at 230Vac.

Dimensions

• Dimensions: 60 x 124 x 117mm (W x H x D).

---
