AI06

Overview

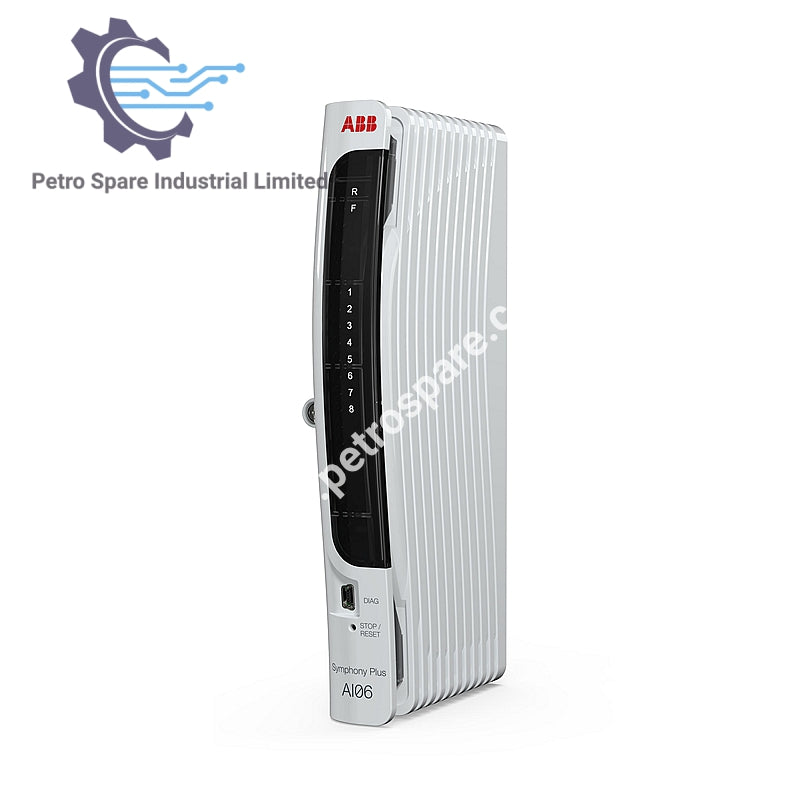

AI06 is an ABB SD Series universal analog input module with 8 channels, supporting high-level signals, millivolt, thermocouple, and RTD inputs for flexible measurement applications.

Identification

• Product ID: AI06

• Type: Analog Input Module

• Signal type: Universal AI (High Level, mV, TC, RTD)

• Form factor: Standard 190 mm

• Mounting: Horizontal row or vertical column

• Life cycle status: Active

Channel & Signal Data

• Number of channels: 8

• Signal specification:

  • High level: 4–20 mA, 0/1–5 VDC, –10/0–10 VDC

  • mV: –100/0–100 mV

  • Thermocouple: Type B, E, J, K, L, N, R, S, T, U, Chinese E, S

  • RTD: 100 Ω Platinum (U.S. & Euro), 120 Ω Nickel, Chinese 53 Ω Copper, 10 Ω Copper

• HART: No

• SOE: No

• Redundancy: No

Reliability

• MTBF (MIL-HDBK-217-FN2): 187,592 h

• MTTR: 1 h

Diagnostics

• Front plate LEDs: STATUS R (Run), F (Fault), 1–8 channel indicators

• Local availability: Mini USB connection on front plate

• Remote availability: HN800 device diagnostics via SPE

Mechanical Data

• Width: 27 mm

• Depth: 106 mm

• Height: 190 mm

• Weight: 240 g

---
