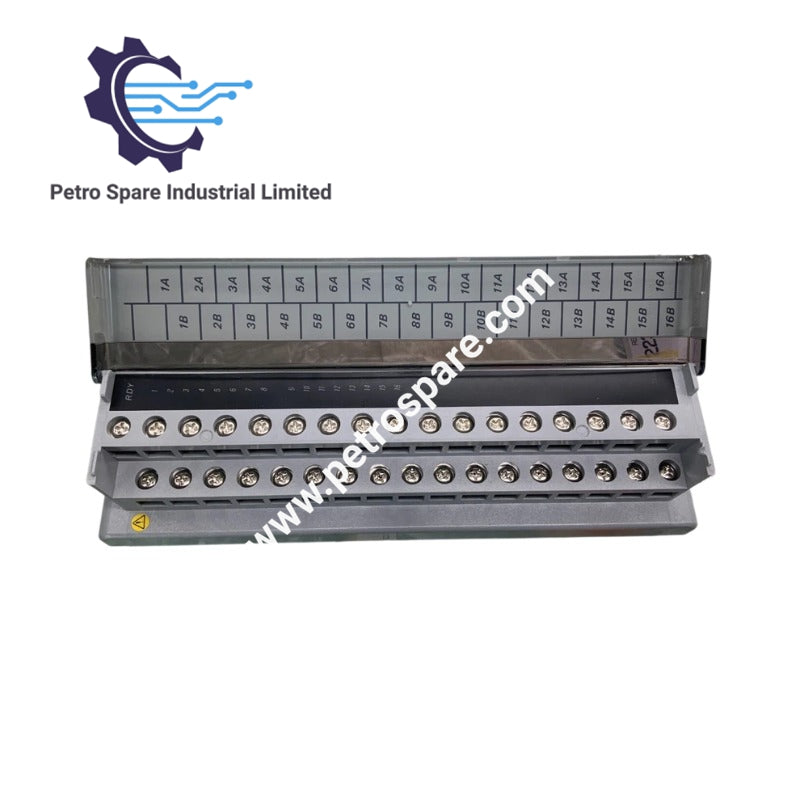

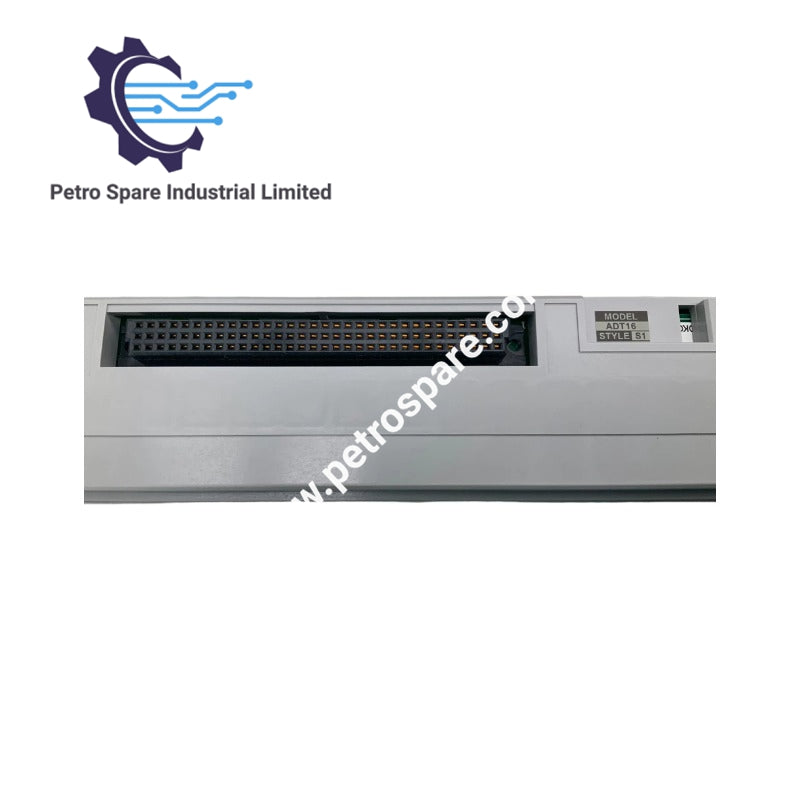

ADT16

Product Overview

ADT16 is a high-density 16-channel analog input module designed for integration within Yokogawa distributed control system platforms such as CENTUM VP and CENTUM CS 3000.

Technical Specifications

• Number of Channels: 16 channels with isolated or non-isolated configuration depending on system baseplate design

• Input Signal Range: 4–20 mA DC or 1–5 V DC standard process signals

• Accuracy: ±0.1% of full scale

• Data Refresh Cycle: 10 ms to 100 ms depending on system configuration

• Input Impedance: 250 Ω for current inputs; ≥1 MΩ for voltage inputs

• Withstand Voltage: 1500 V AC for 1 minute between input and system

• Insulation Resistance: ≥10 MΩ at 500 V DC

• Current Consumption: 300–500 mA at 5 V DC system power

• Operating Temperature: 0 to 50°C

• Operating Humidity: 10% to 90% RH (non-condensing)

• Storage Temperature: −20 to 70°C

• Weight: Approximately 0.3–0.5 kg depending on revision

• System Connection: Dedicated I/O cable or terminal baseplate interface
