57160001-ACT

Overview

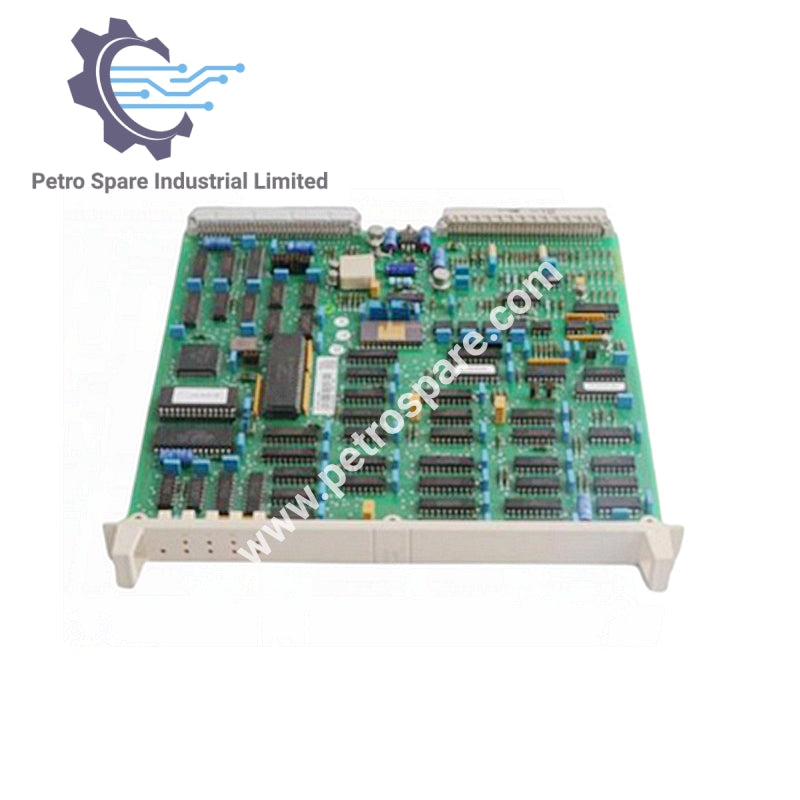

DSDP 140A 57160001-ACT is an ABB pulse counter board used in control systems, supporting pulse input, digital I/O, and analog output functions.

Identification

• Product ID: 57160001-ACT

• Type designation: DSDP 140A

• Catalog description: Pulse counter board

I/O Configuration

• Pulse input: 1

• Digital inputs (DI): 2

• Digital outputs (DO): 4

• Analog output (AO): 1

Signal Characteristics

• Positioning loop input: 3 channels, ±15 mA, max. 80 kHz

• DI/DO voltage: 24 V DC

• AO resolution: 11 bits + sign

• AO range: 0 to +10 V or 0 to ±20 mA

Dimensions & Weight

• Depth/Length: 209.7 mm

• Height: 18 mm

• Width: 225 mm

• Weight: 0.44 kg

Environmental

• RoHS: Compliant with EU Directive 2011/65/EU

• WEEE category: 5 (Small equipment, no external dimension > 50 cm)

• Batteries: 0

---
