1MRK000508-BDr03

Overview

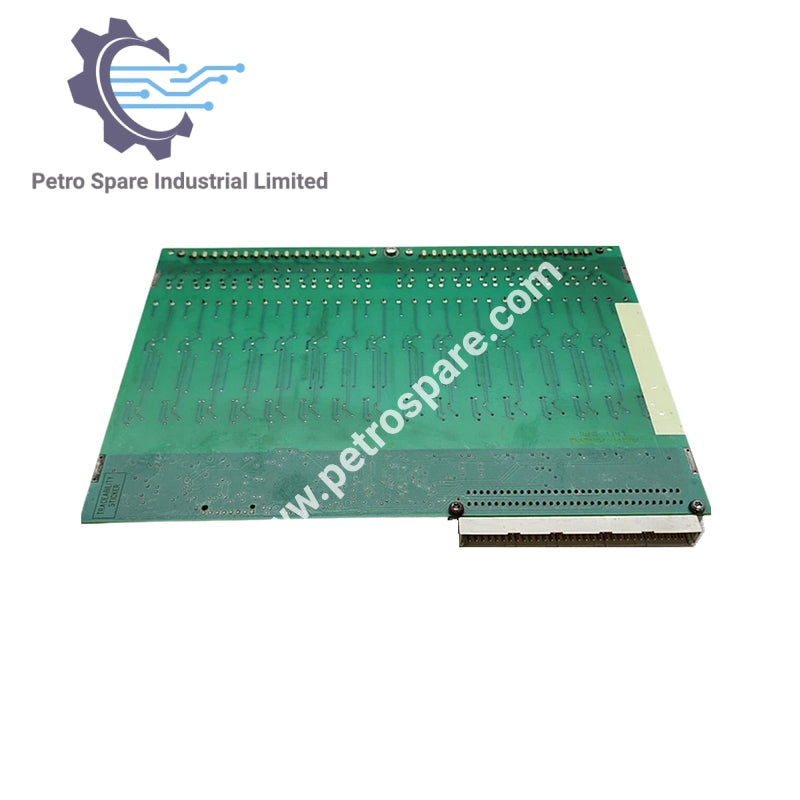

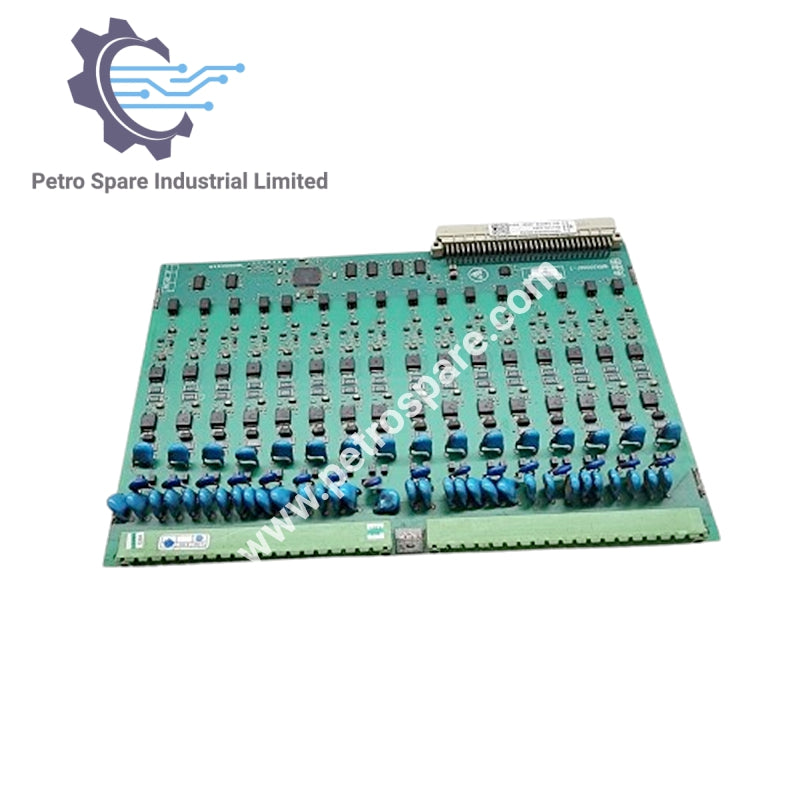

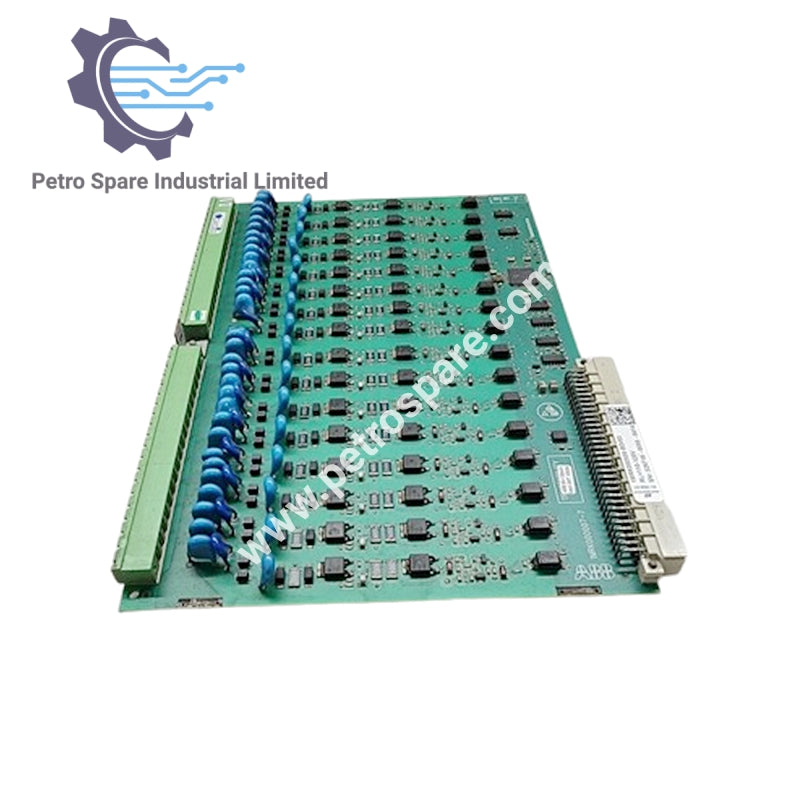

1MRK000508-BDr03 is an ABB control board used in relay protection and control systems, providing binary input signal processing with galvanic isolation.

Identification

• Product ID: 1MRK000508-BDr03

• Designation: Control Board

• Status: Active

Input & Processing

• Channels: 16 binary inputs

• Input voltage: 110–125 V DC

• Current consumption: 50 mA

• Isolation: Galvanic per group

• Response time: ≤5 ms

Dimensions & Weight

• Length: 211 mm

• Width: 133 mm

• Height: 71 mm

• Weight: 0.41 kg

---
