900SP1-0200
Description
Description
Overview

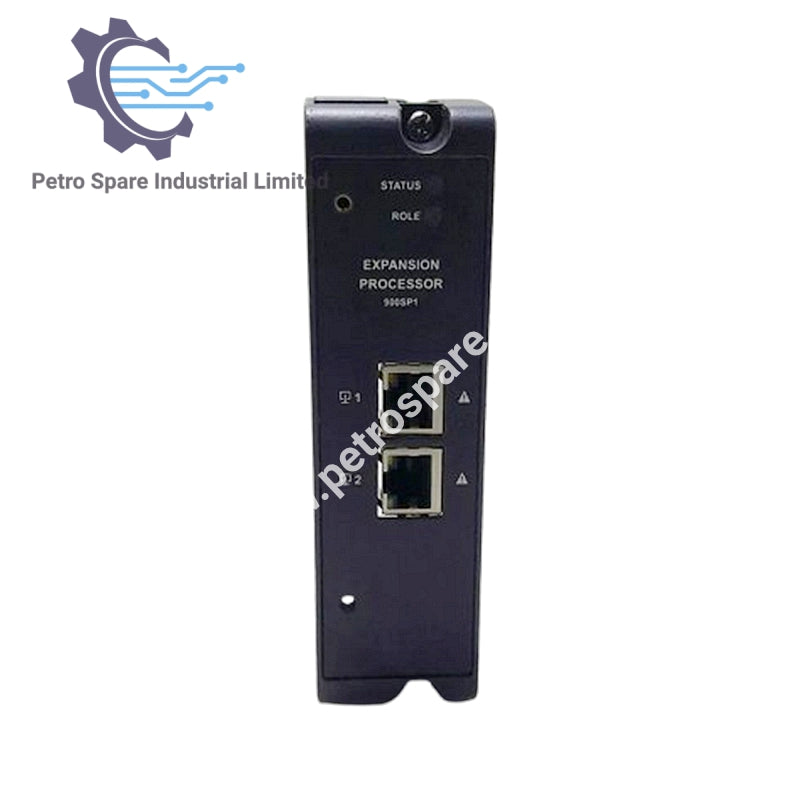

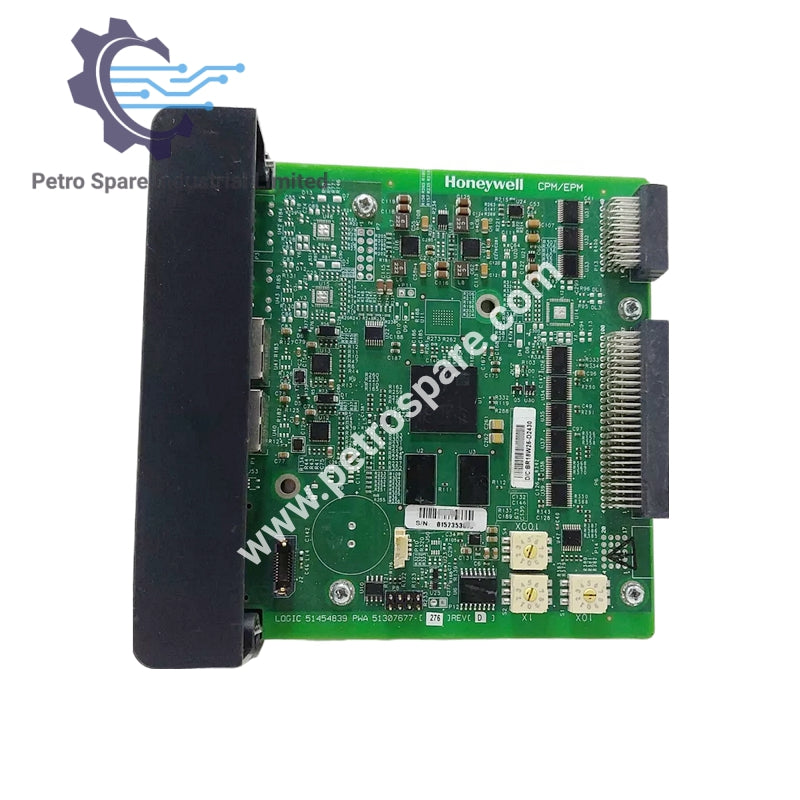

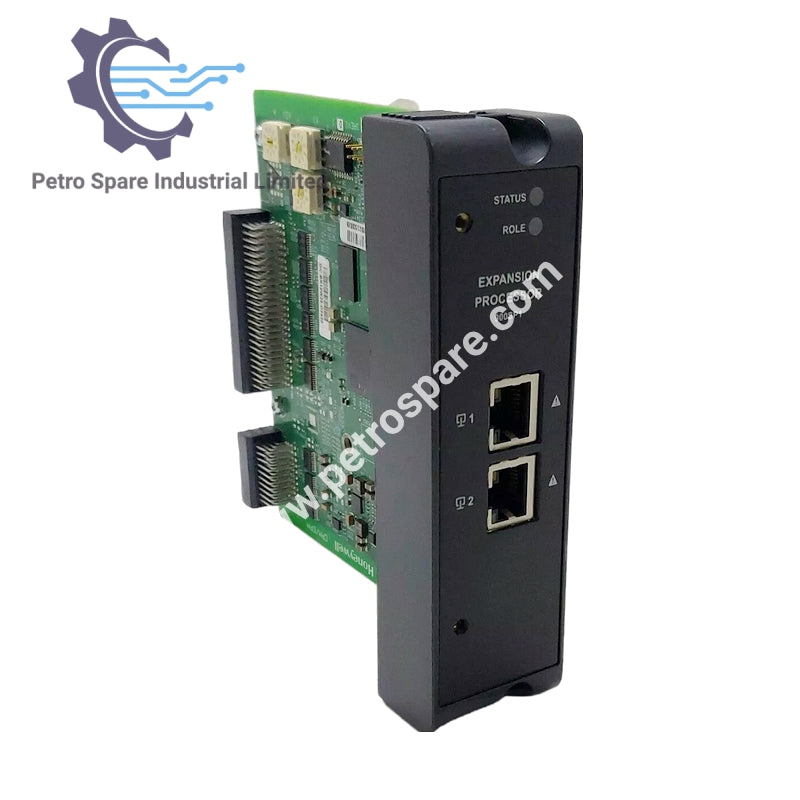

The Honeywell 900SP1-0200 Expansion Processor Module is designed with a dual-core ARM Cortex-A9 processor, offering robust communication and control capabilities for industrial applications.
Hardware Specifications
-
Processor: Dual Core ARM® Cortex™-A9 (32 bit), 667 MHz
-
Rotary Address Switch: Rack address range 1 to 99
-
LED Indicators: 2 LEDs, three-color each, showing EPM status
Communication Capabilities
-
Ethernet Ports: 2
-
Network Connection: Shielded RJ45 connector, auto-crossover
-
Network Port Speed: 10/100BaseTx, auto-detecting
-
Isolation: 1500 Volts RMS for 1 minute, 60 Hz
-
Transient Voltage Suppression: 600W peak pulse power capability at 10×1000μs waveform, repetition rate: 0.01%
-
Diagnostic LEDs on Each Port: Yes
-
Protocols: I/O Communication for EPM Ports 1 & 2
Electrical Specifications
-
Max. Current @ 5V: 520 mA
-
Max. Current @ 24V: 0 mA
-
Heat Dissipation: 2.6W
