8115-DO-DC

Overview

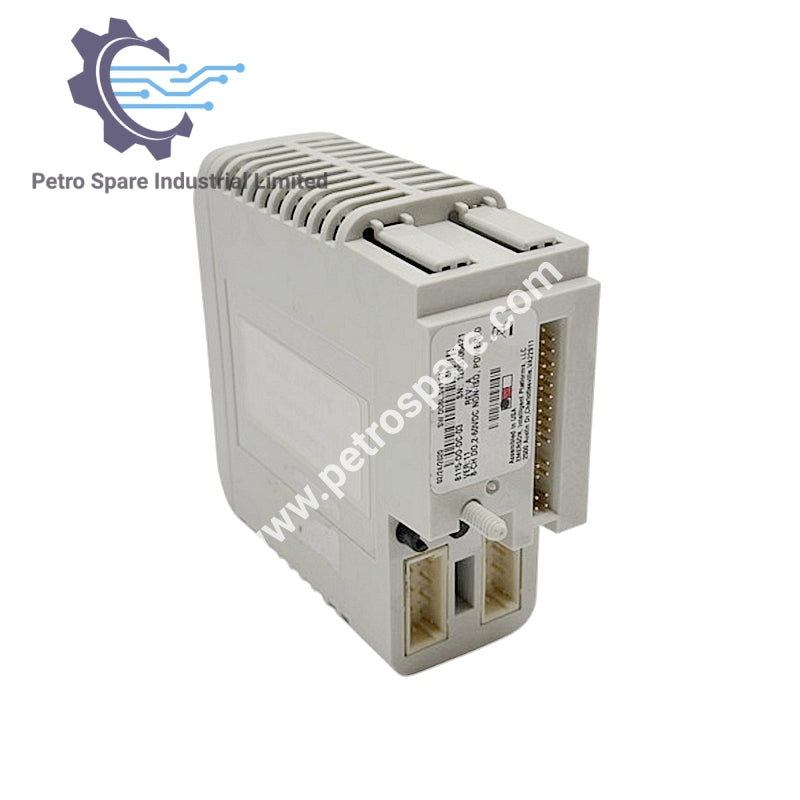

The Eaton MTL 8115-DO-DC is an 8‑Channel Digital Output Module designed for 2–60 V DC non‑isolated sourcing applications. It supports continuous and pulsed output modes with fast response times, making it suitable for industrial automation and control systems.

Output Specifications

• Type: Discrete output

• Voltage Range: 2–60 V DC

• Modes: Continuous or pulsed

• Pulse Width: 2 ms to 130 s

• ON Voltage Drop: ≤ 0.25 V

• OFF Leakage Current: ≤ 1 mA

• Continuous Current (per channel): 1 A

• Switched Current (per channel): 4 A (<100 ms), 6 A (<20 ms)

• Minimum Load Current: Not applicable

• Response Time: 1 ms

Indicators & Diagnostics

• LED Indicators: Power, fault, 8 × channel status

• Line Fault Detection: Not available

Power Supply

• Bussed Field Power Required: 2–60 V DC

• System Power (12 V): 75 mA typical, 125 mA max

Field Circuits

• Type: Non‑arcing

Physical Characteristics

• Module Key Code: B6

• Width: 42 mm

• Weight: 200 g

---
