6GK7443-5DX05-0XE1

Product Overview:

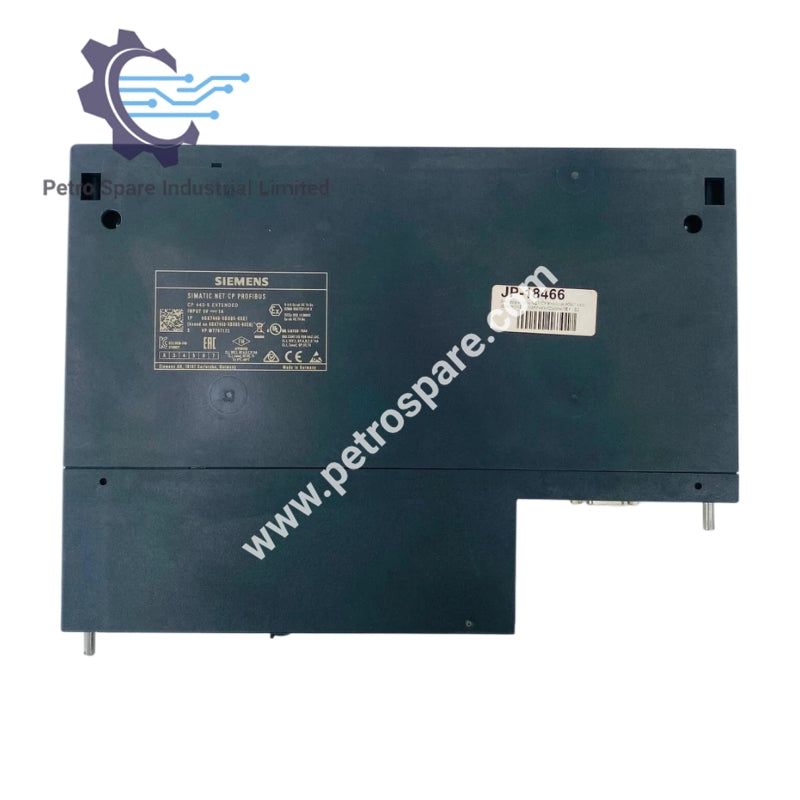

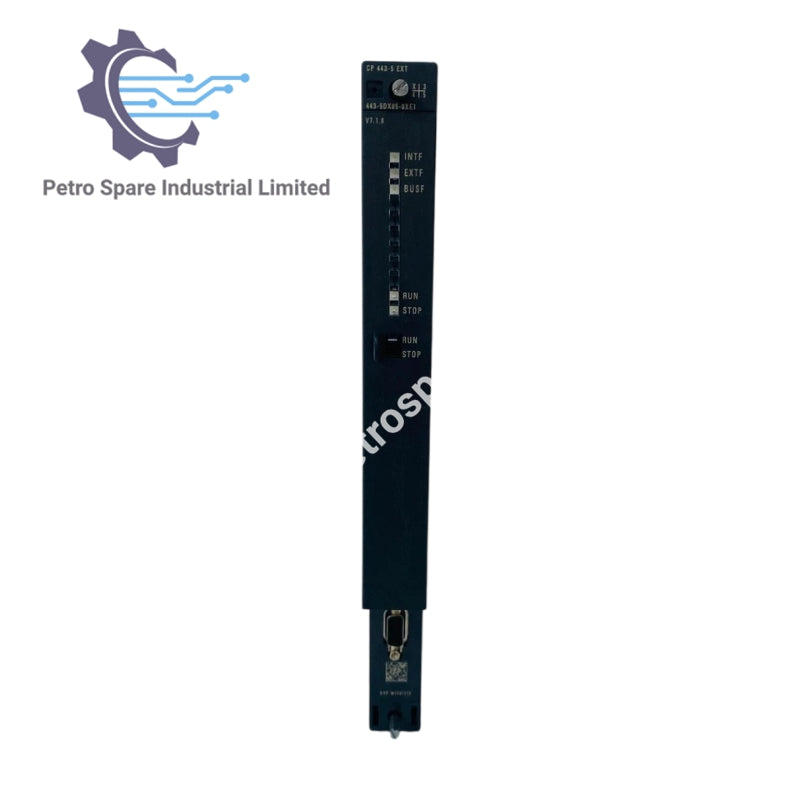

The 6GK7443-5DX05-0XE1 CP 443-5 Extended communication processor is designed for connecting SIMATIC S7-400 systems to PROFIBUS DP networks and supports S5-compatible, PG/OP, and S7 communication with conformal coating protection.

Technical Specifications

• Communication Interface:
1 × PROFIBUS interface with 9-pin Sub-D socket (RS485)

• Transfer Rate:
9.6 kbit/s to 12 Mbit/s according to PROFIBUS standard

• Power Supply:
5 V DC via backplane bus

• Current Consumption:
Typical 0.6 A at 5 V DC

• Power Loss:
3 W

• Environmental Conditions:
Operating temperature: 0 °C to 60 °C
Storage/transport temperature: -40 °C to +70 °C
Maximum humidity: 95% non-condensing at 25 °C
Protection class: IP20

• Design & Dimensions:
Compact S7-400 single-width module
Width: 25 mm
Height: 290 mm
Depth: 210 mm
Net weight: 0.65 kg

---
