6GK7343-1EX30-0XE0

Overview

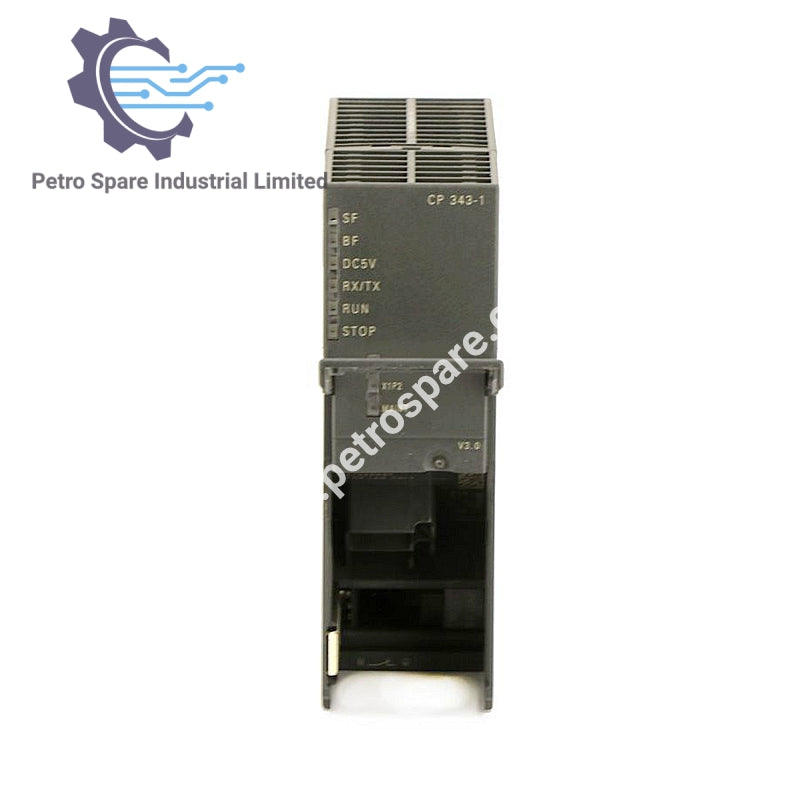

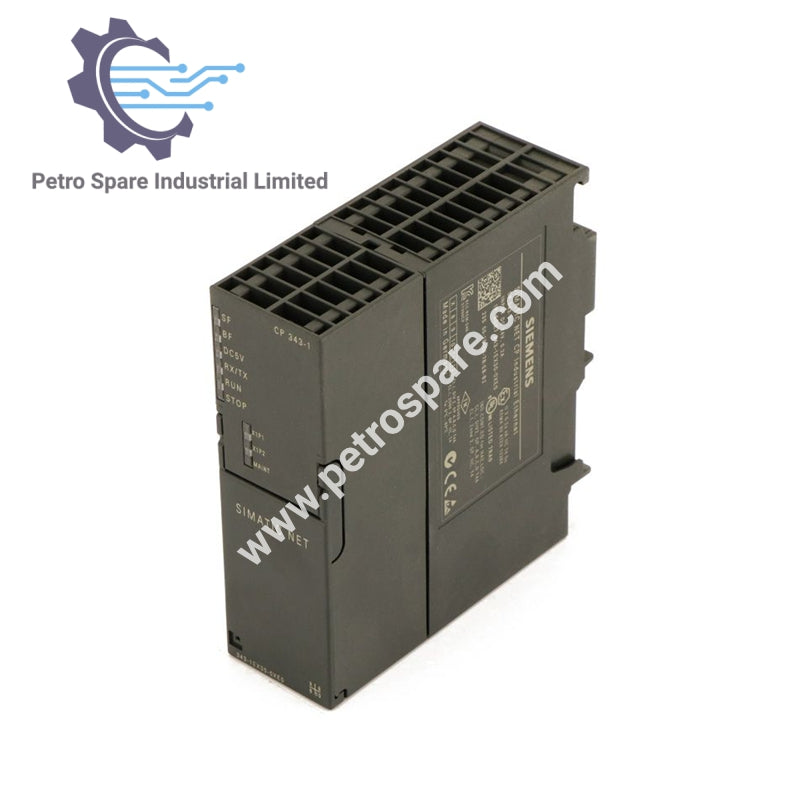

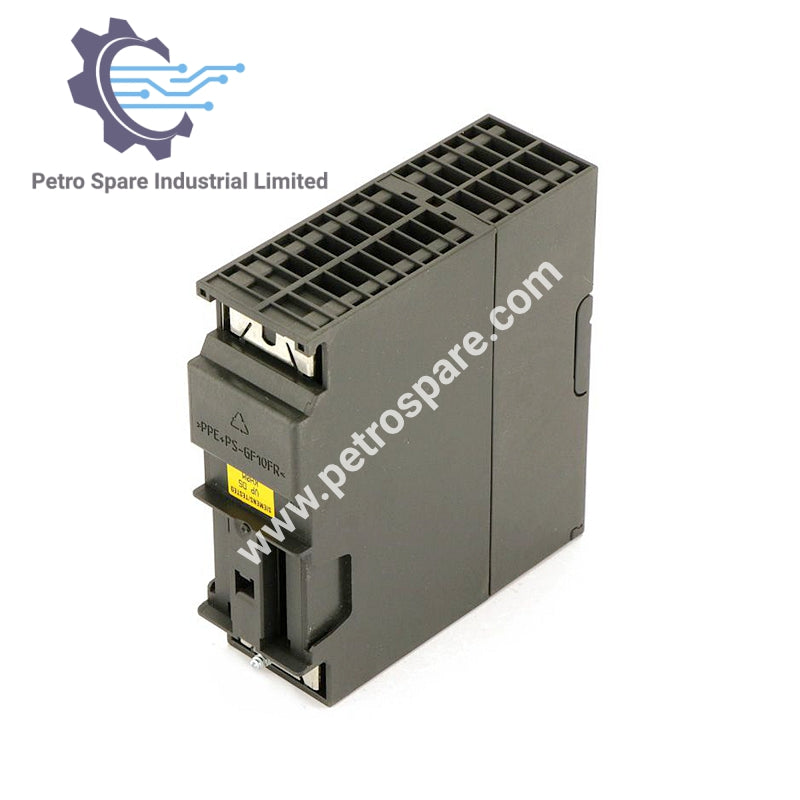

6GK7343-1EX30-0XE0 is a Siemens SIMATIC CP343-1 communications processor for connecting S7-300 to Industrial Ethernet via ISO and TCP/IP. It supports PROFINET IO controller/device, integrated 2-port ERTEC 200 switch, S7 communication, fetch/write, SEND/RECEIVE RFC1006, multicast, DHCP, NTC-CPU sync, diagnostics, and initialization via LAN.

Transfer Rate

• Ethernet speed: 10–100 Mbit/s

Interfaces

• Industrial Ethernet interfaces: 2

• Electrical connections (Ethernet): 2 RJ45 ports

• Power supply connections: 1 (2-pole plugable terminal block)

Ambient Conditions

• Operating temperature (vertical installation): 0–40 °C

• Operating temperature (horizontal busbars): 0–60 °C

• Storage temperature: –40 to +70 °C

• Transport temperature: –40 to +70 °C

• Relative humidity (max.): 95 % @ 25 °C, non-condensing

• Protection class: IP20

---
