6GK7342-5DA03-0XE0

Overview

• Model: 6GK7342-5DA03-0XE0

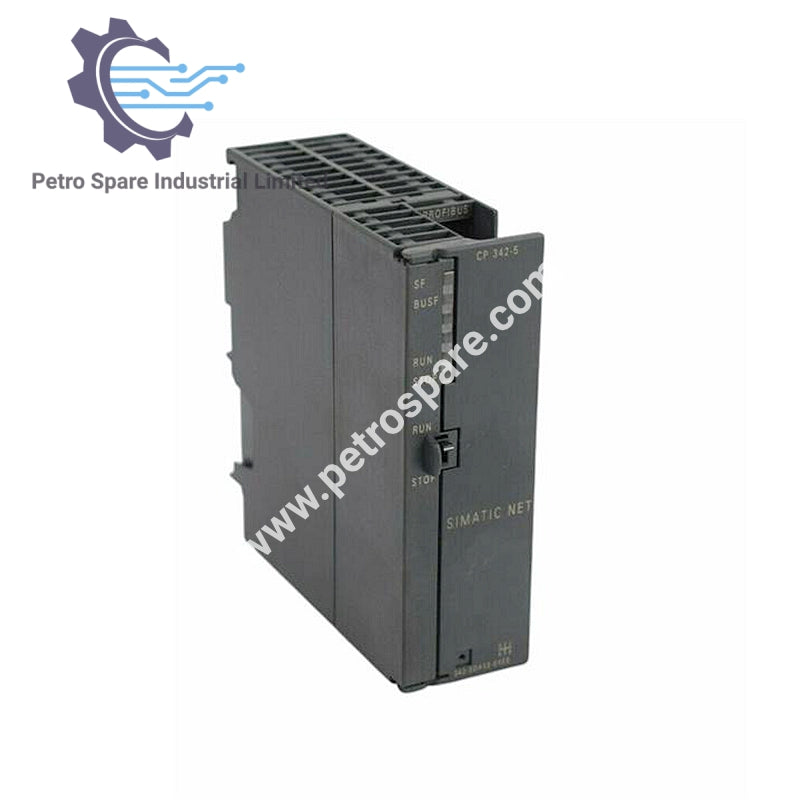

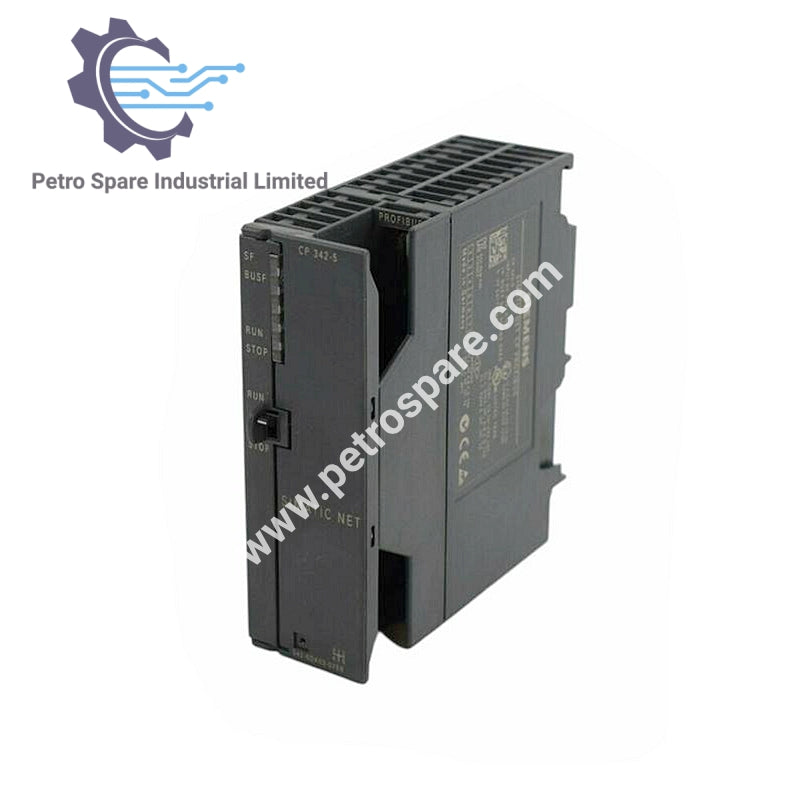

• Type: CP 342‑5 Communication Processor Module

• Application: Connects SIMATIC S7‑300 systems to PROFIBUS DP, S5‑compatible devices, PG/OP, and S7 communication

Interfaces

• Industrial Ethernet Interfaces: 0

• Electrical Connections:

  • PROFIBUS: 1 × 9‑pin Sub‑D socket (RS485)

  • Power Supply: 1 × 4‑pole terminal block

Electrical Characteristics

• Supply Voltage Type: DC

• Supply Voltage (Backplane Bus): 5 V DC

• Supply Voltage (External): 24 V DC (rated), +20% / –15% tolerance

• Current Consumption:

  • 0.15 A typical @ 5 V DC (backplane bus)

  • 0.25 A typical @ 24 V DC (external supply)

• Power Loss: 6.75 W

Environmental Specifications

• Operating Temperature: 0 … 60 °C

• Storage Temperature: –40 … +70 °C

• Transport Temperature: –40 … +70 °C

• Relative Humidity: 95% max @ 25 °C, non‑condensing

• Protection Class: IP20

Mechanical Specifications

• Module Format: Compact S7‑300 single‑width module

• Width: 4.0 cm

• Height: 12.5 cm

• Depth: 12.0 cm

• Net Weight: 0.30 kg

---
