6GK7277-1AA10-0AA0

Overview

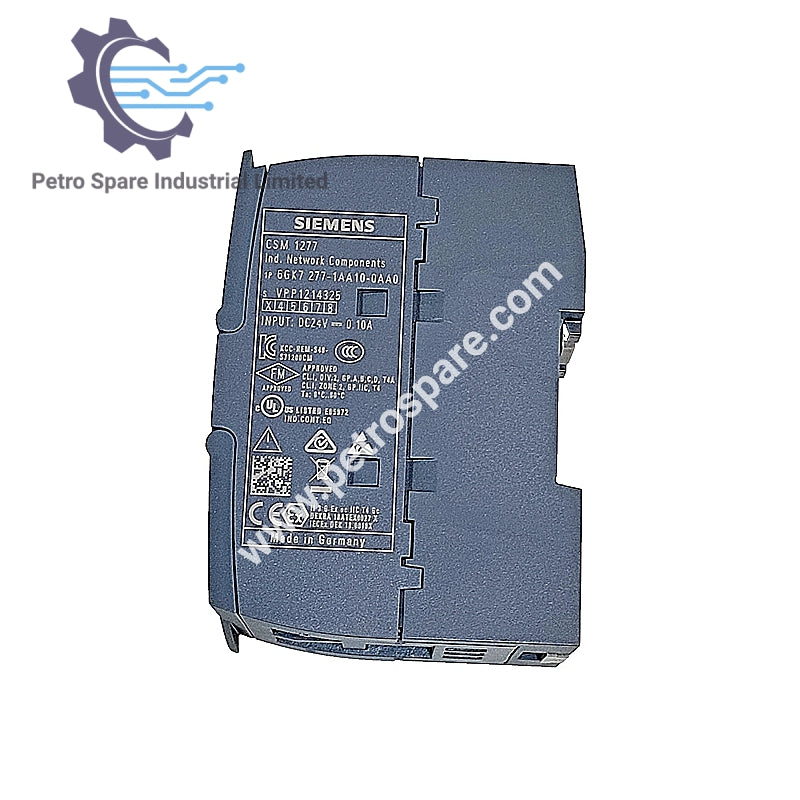

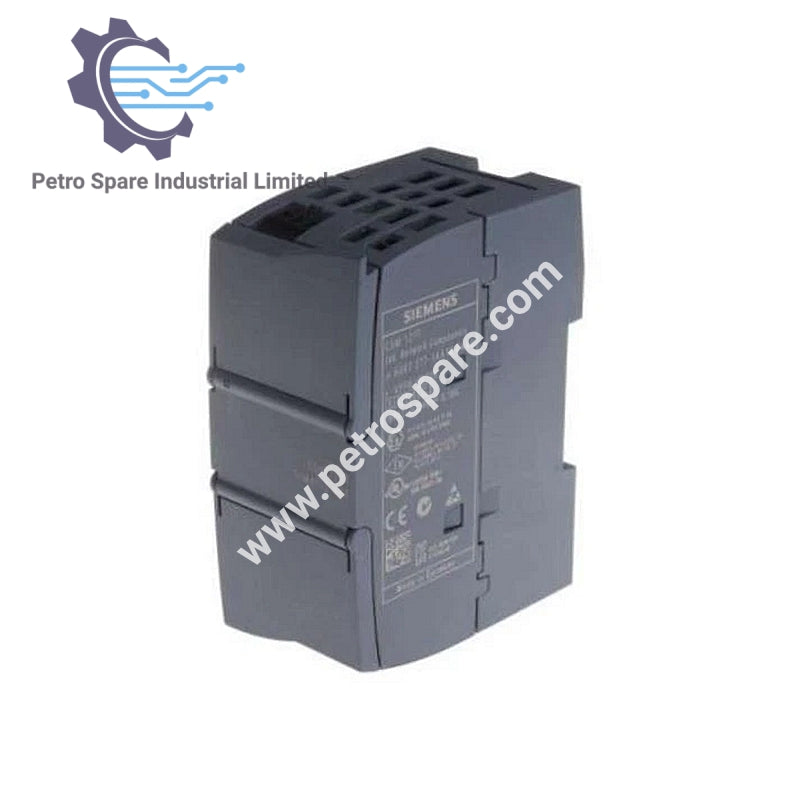

6GK7277-1AA10-0AA0 is a Siemens SIMATIC Compact Switch Module CSM1277 for connecting S7-1200 and up to 3 additional nodes to Industrial Ethernet at 10/100 Mbit/s. It is an unmanaged switch with 4 RJ45 ports, external 24 V DC power supply, LED diagnostics, and includes an electronic equipment manual on CD-ROM.

Transfer Rate

• Ethernet speed: 10 Mbit/s, 100 Mbit/s

Interfaces

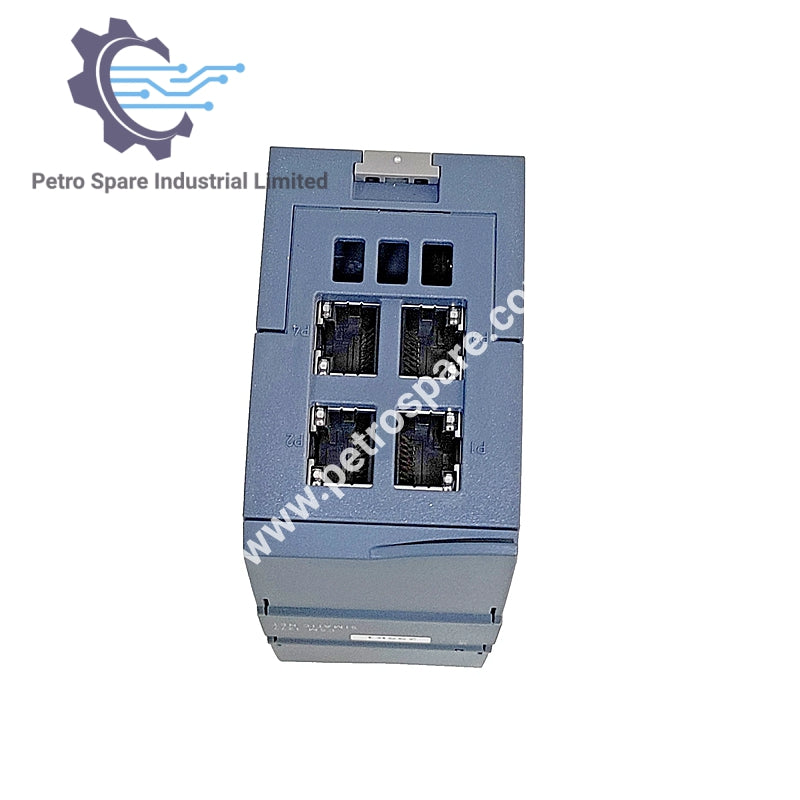

• Network connections: 4 (RJ45)

• SC ports (100 Mbit/s, multimode): 0

• Power supply connections: 1 (3-pole terminal block)

Electrical Data

• Supply voltage (DC): 24 V (rated)

• Voltage range: 19.2–28.8 V

• Current consumption (max.): 0.07 A

• Power loss: 1.6 W

• Fuse protection: 0.5 A / 60 V

Design & Dimensions

• Design: SIMATIC S7-1200 device format

• Width: 45 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: 0.15 kg

---
