6GK5206-2BS00-2AC2

Overview

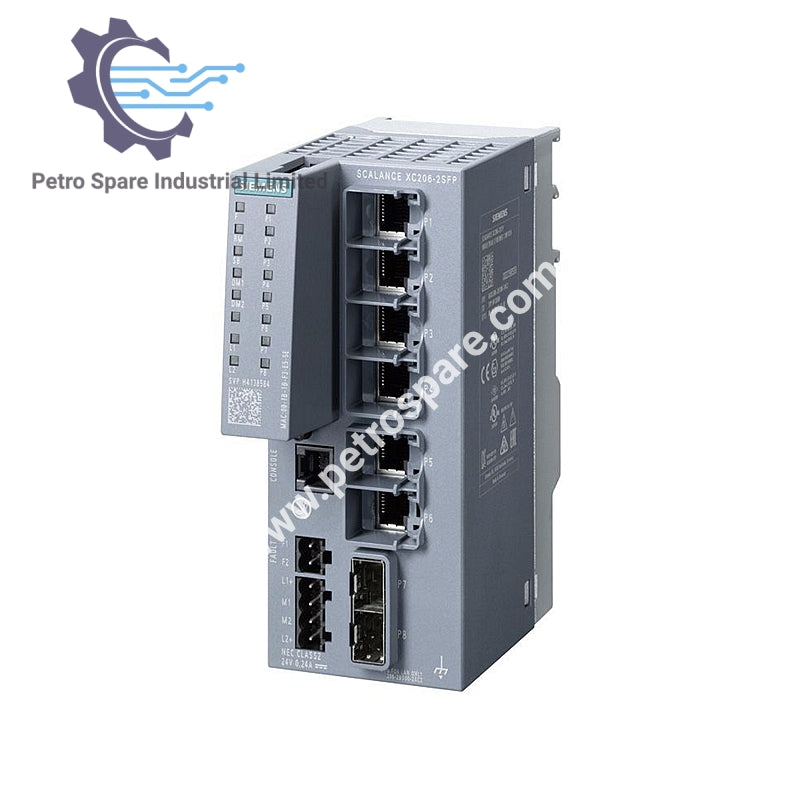

6GK5206-2BS00-2AC2 is a Siemens SCALANCE XC206-2SFP manageable Layer 2 Industrial Ethernet switch, IEC 62443-4-2 certified, with redundancy functions (RSTP, VLAN), PROFINET IO device support, Ethernet/IP compliance, diagnostics LED, redundant power supply, and C-plug slot.

Transfer Rate

• Ethernet speed: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s

Interfaces

• Electrical ports: 6 RJ45 (10/100 Mbit/s, with securing collar)

• Optical ports: 2 SFP (100/1000 Mbit/s plug-in transceiver)

• Operator console: 1 RJ11

• Signaling contact: 1 (2-pole terminal block)

• Power supply: 1 (4-pole terminal block)

• Removable storage: C-PLUG

Signal Inputs/Outputs

• Operating voltage (DC): 24 V

• Operational current (max.): 0.1 A

Environmental Conditions

• Operating temperature: –40 to +70 °C

• Assembly options: DIN rail, S7 mounting rail, wall

---
