6GK5204-2BC10-2AA3

Overview

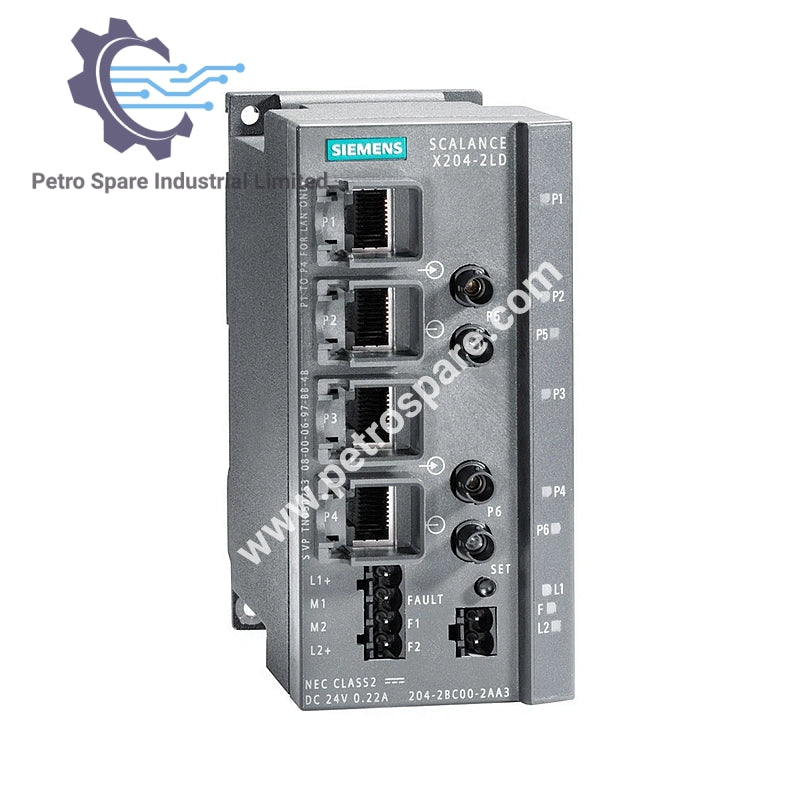

6GK5204-2BC10-2AA3 is a Siemens SCALANCE X204-2LD managed Industrial Ethernet switch with 4x RJ45 ports (10/100 Mbit/s), 2x BFOC singlemode ports (100 Mbit/s), error signal contact with set button, redundant power supply, PROFINET IO device support, integrated redundancy manager, and optional C-plug.

Signal Inputs/Outputs

• Operating voltage (DC): 24 V

• Operational current (max.): 0.1 A

Electrical Data

• Supply voltage (DC external): 24 V

• Voltage range: 18–32 V

• Fuse protection: 0.6 A / 60 V

• Consumed current (max.): 0.265 A

• Active power loss: 6.36 W

Ambient Conditions

• Operating temperature: –40 to +60 °C

• Storage temperature: –40 to +70 °C

• Transport temperature: –40 to +70 °C

• Relative humidity (max.): 95 % @ 25 °C, non-condensing

• Protection class: IP30

Design & Dimensions

• Design: Compact

• Width: 60 mm

• Height: 125 mm

• Depth: 124 mm

• Weight: 0.78 kg

---
