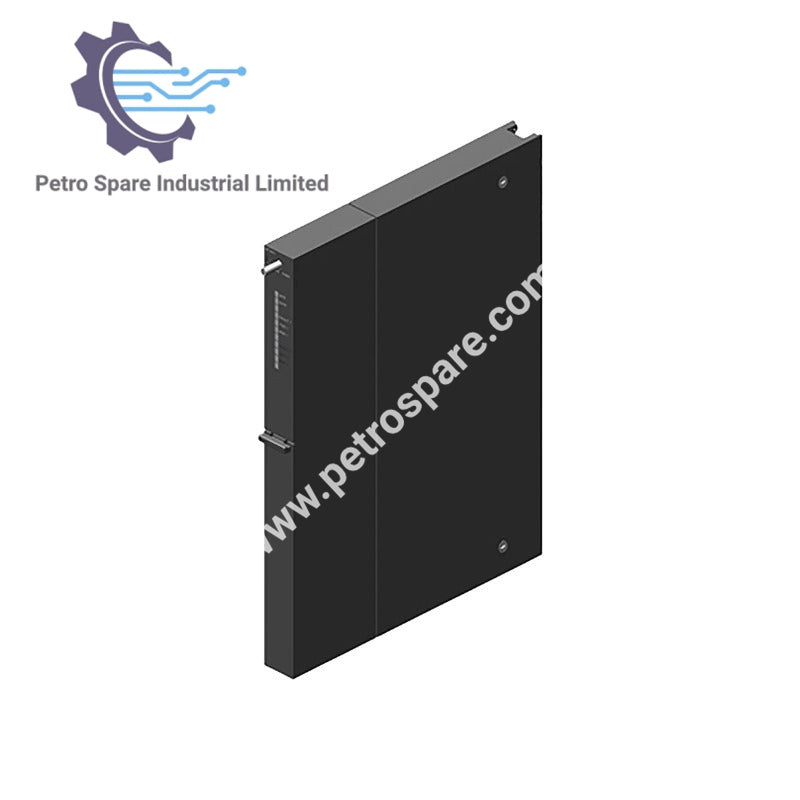

6ES7441-2AA05-0AE0

General Specifications

• Product type designation: Coupling Module CP 441-2
• Order number: 6ES7441-2AA05-0AE0
• Family: SIMATIC S7-400
• Description: Coupling module for point-to-point connections, 2 channels, includes configuration package on CD

Supply Voltage

• Rated value (5 V DC): Yes
• Rated value (24 V DC): Yes

Input Current

• From backplane bus 5 V DC, max.: 300 mA (without interface module)

Power Loss

• Power loss, typical: 2.7 W (incl. 2x20mA TTY module)

Memory Requirements

• Parameters per interface in S7-CPU memory card: 1 to 5 KB
• Message texts per interface: 0 to 55 KB
• Loadable drivers per interface: 0 to 64 KB

Interfaces and Communication

• Number of interfaces: 2 (variable)
• Transmission rate, max.: 115.2 kbit/s
• Transmission rate, min.: 300 bps
• Supported printers: HP-Deskjet, HP-Laserjet, IBM-Proprinter, user-defined

Physical Dimensions

• Width: 25 mm
• Height: 290 mm
• Depth: 210 mm
• Weight: Approx. 580 g (interface modules: 80 g)

---
