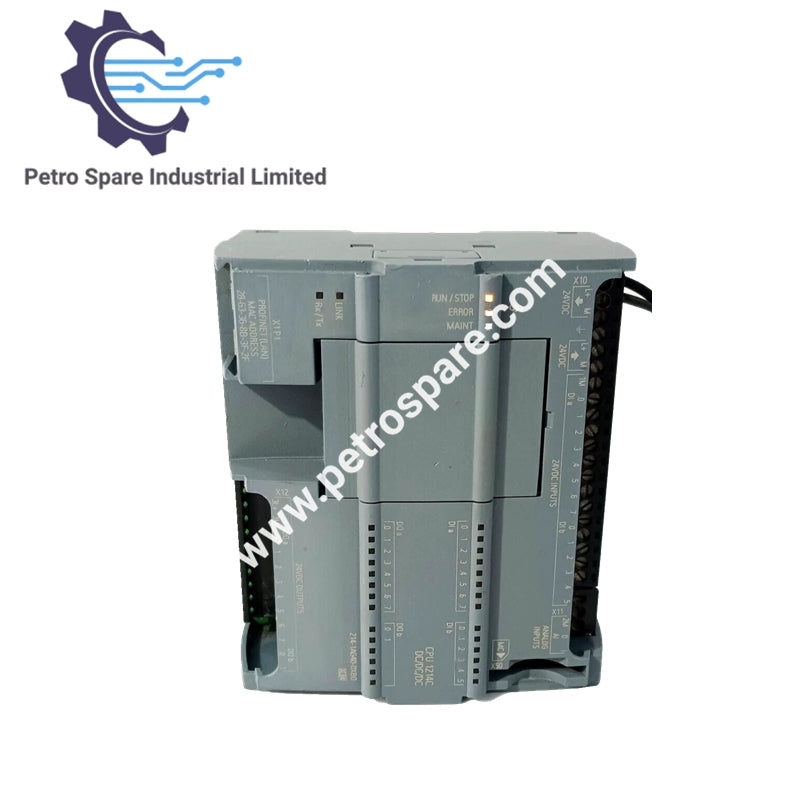

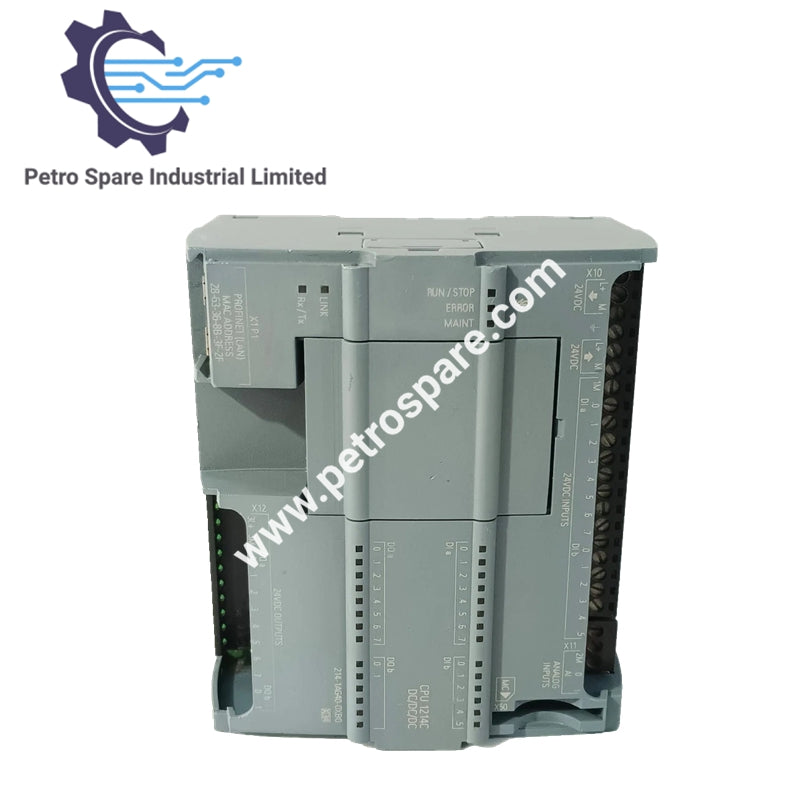

6ES7214-1AG40-0XB0

Product Overview

• Model: 6ES7214-1AG40-0XB0

• Type: SIMATIC S7‑1200 Compact CPU (CPU 1214C, DC/DC/DC)

• Application: Compact controller with onboard digital and analog I/O, designed for scalable automation tasks

Integrated I/O

• Digital Inputs (DI): 14 × 24 V DC

• Digital Outputs (DO): 10 × 24 V DC

• Analog Inputs (AI): 2 × 0 … 10 V DC

Electrical Ratings

• Supply Voltage (DC): 20.4 … 28.8 V DC

• Current Consumption (CPU only): 500 mA

• Current Consumption (max with expansion): 1,500 mA

• Inrush Current (max): 12 A @ 28.8 V

• I²t: 0.5 A²·s

• Output Current (backplane bus): 1,600 mA @ 5 V DC (for SM and CM modules)

• Encoder Supply: 24 V L+ (minus 4 V DC minimum)

• Power Loss (typical): 12 W

Memory

• Work Memory: 150 KB integrated

• Load Memory: 4 MB integrated

• SIMATIC Memory Card: Supported (plug‑in, expandable)

• Backup: Present, maintenance‑free, battery‑free

Mechanical Specifications

• Width: 110 mm

• Height: 100 mm

• Depth: 75 mm

• Weight: Approx. 415 g

---
