6ES7155-5AA01-0AB0

Product Overview

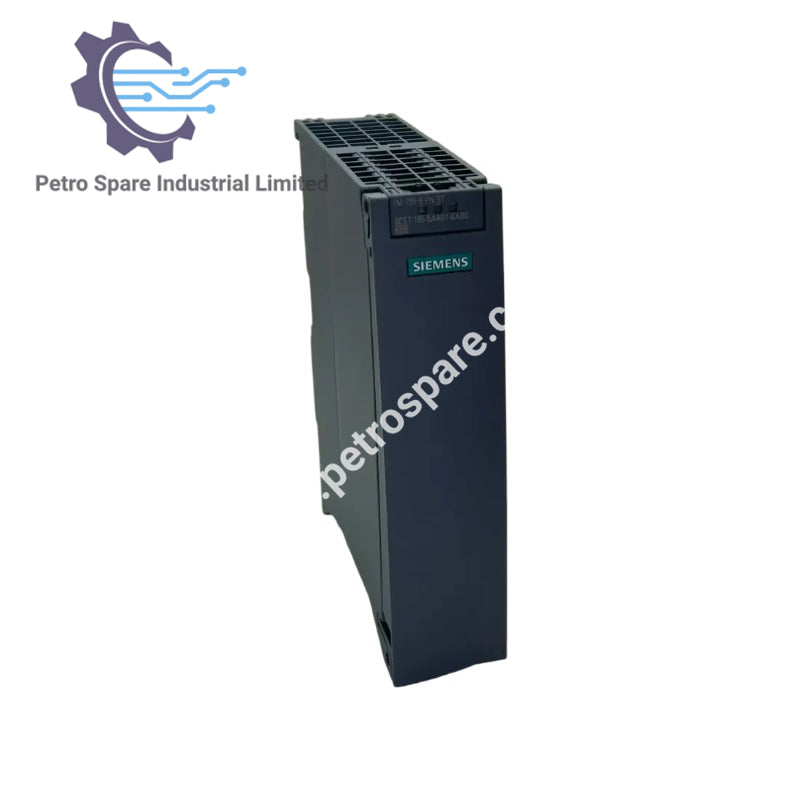

The 6ES7155-5AA01-0AB0 is a SIMATIC ET 200MP PROFINET IO‑Device interface module IM 155‑5 PN ST with firmware version V4.1.0, supporting isochronous mode and I&M data (I&M0 to I&M3).

General Information

• Product Type Designation: IM 155‑5 PN ST
• HW Functional Status: From FS01
• Firmware Version: V4.1.0 (FW update possible)
• Vendor ID: 0x002A
• Device ID: 0X0312
• I&M Data: I&M0 to I&M3
• Hot Swapping: No
• Isochronous Mode: Yes
• Tool Changer: No
• Local Coupling (IO Data): No

Engineering

• STEP 7 TIA Portal: V15 or higher
• STEP 7: Use GSD file
• PROFINET GSD: GSDML V2.3
• Configuration Control via Dataset: Yes

Supply Voltage

• Rated Value: 24V DC
• Permissible Range: 19.2V to 28.8V DC
• Reverse Polarity Protection: Yes
• Short‑circuit Protection: Yes
• Mains Buffering (Voltage Failure): 10 ms

Input Current

• Rated Value (at 24V DC without load): 0.2 A
• Current Consumption (max): 1.2 A
• Inrush Current (max): 9 A
• I²t: 0.09 A²·s

Power

• Infeed Power to Backplane Bus: 14 W
• Power Available from Backplane Bus: 2.3 W
• Power Loss (typ): 4.5 W

Connection Method

• ET‑Connection via BU/BA: No

Physical Specifications

• Width: 35 mm
• Height: 147 mm
• Depth: 129 mm

---
