6ES7138-7FD00-0AB0

Product Overview

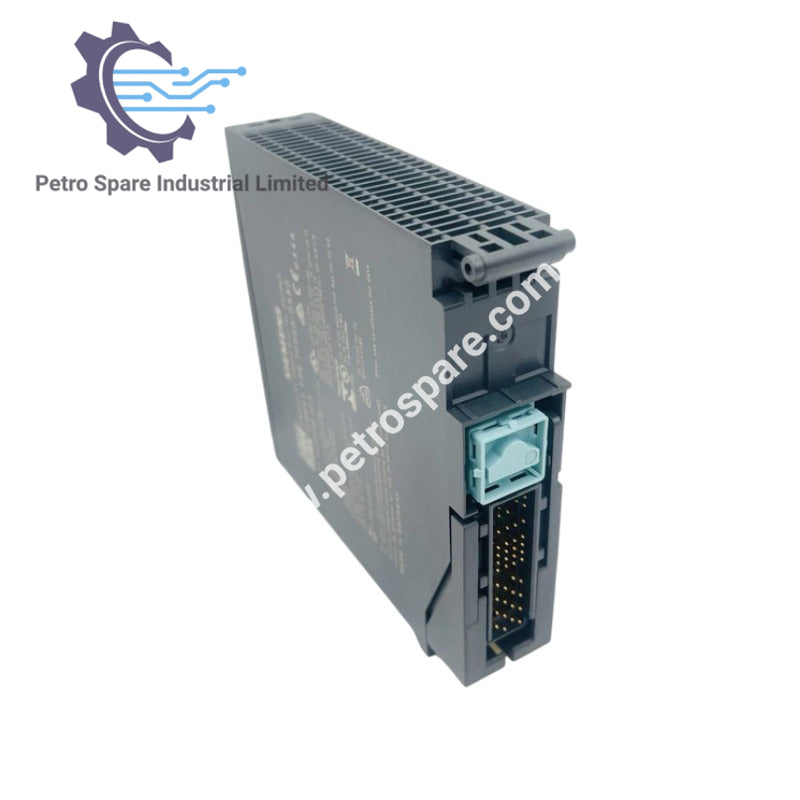

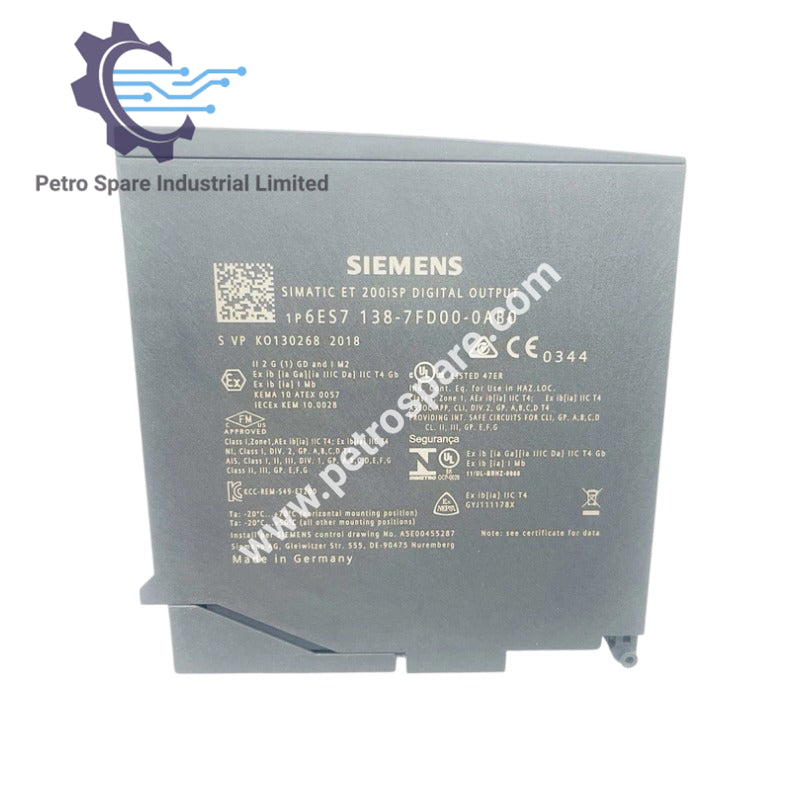

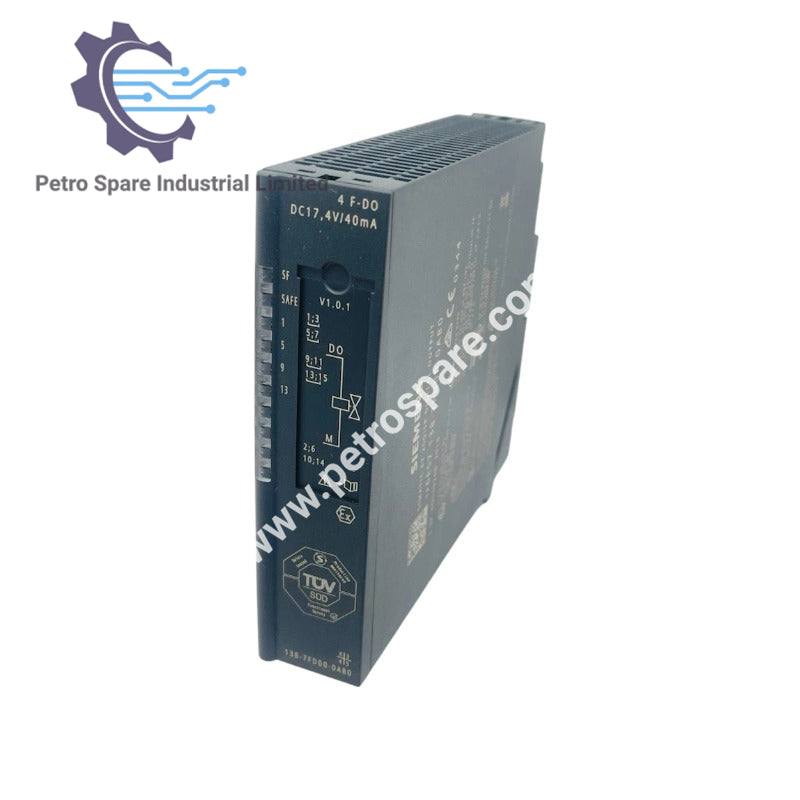

The 6ES7138-7FD00-0AB0 is a SIMATIC ET 200iSP fail‑safe digital output module (4F‑DQ Ex(i) 17.4V DC/40mA) for use in potentially explosive atmospheres.

Installation Type

• Rack Mounting: No
• Front Mounting: Yes
• Rail Mounting: Yes
• Wall Mounting/Direct Mounting: Yes

Supply Voltage

• Type: DC
• Permissible Range: 19.2V to 30V

Input Current

• Current Consumption (typ): 340 mA
• from Load Voltage L+ (without load, max): 510 mA (internal Powerbus)

Power Loss

• Power Loss (max): 5.3 W

Digital Outputs

• Type: Transistor
• Number of Digital Outputs: 4
• Short‑circuit Protection: Yes (response threshold depends on "short‑circuit level" parameter)
• No‑load Voltage Uao: 17.4V DC
• Internal Resistor Ri: 167 Ω
• Load Resistance Range: 270 Ω min, 18 kΩ max
• Voltage Ue (E‑point): 10.7V
• Current Ie (E‑point): 40 mA
• Signal "1" Output Voltage (max): 17.4V
• Permissible Output Voltage (min): 0V

Physical Specifications

• Width: 30 mm
• Height: 129 mm
• Depth: 136.5 mm
• Weight: approx. 285 g

---
