6ES7135-6HB00-0DA1

Overview

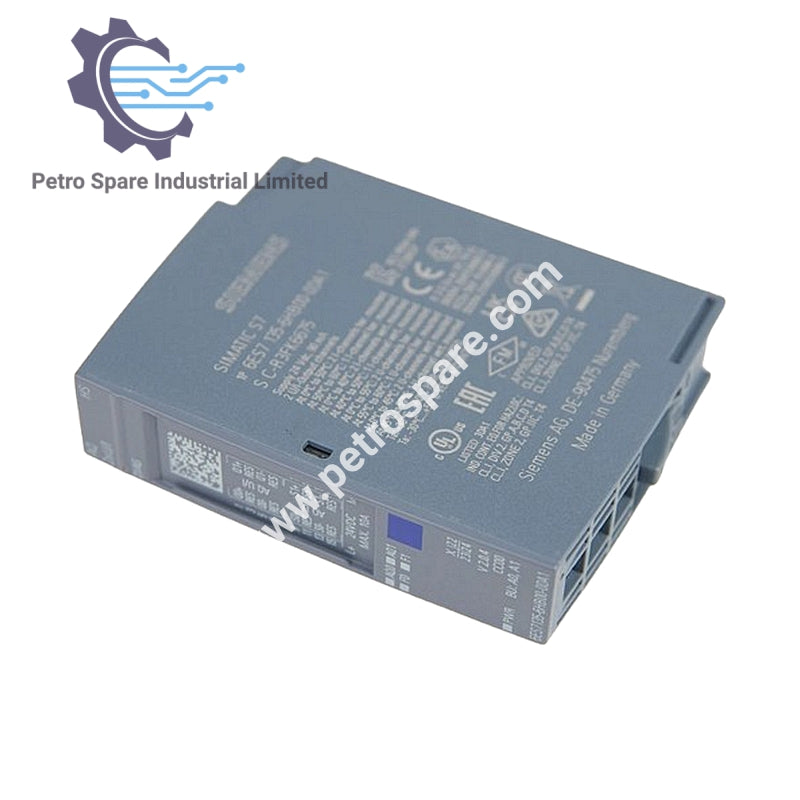

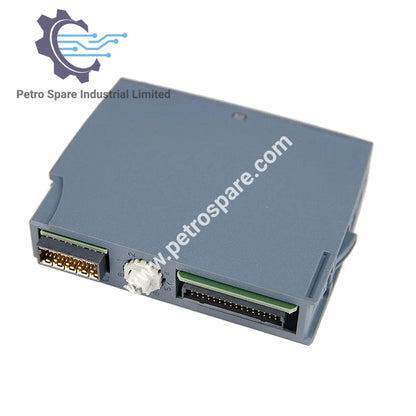

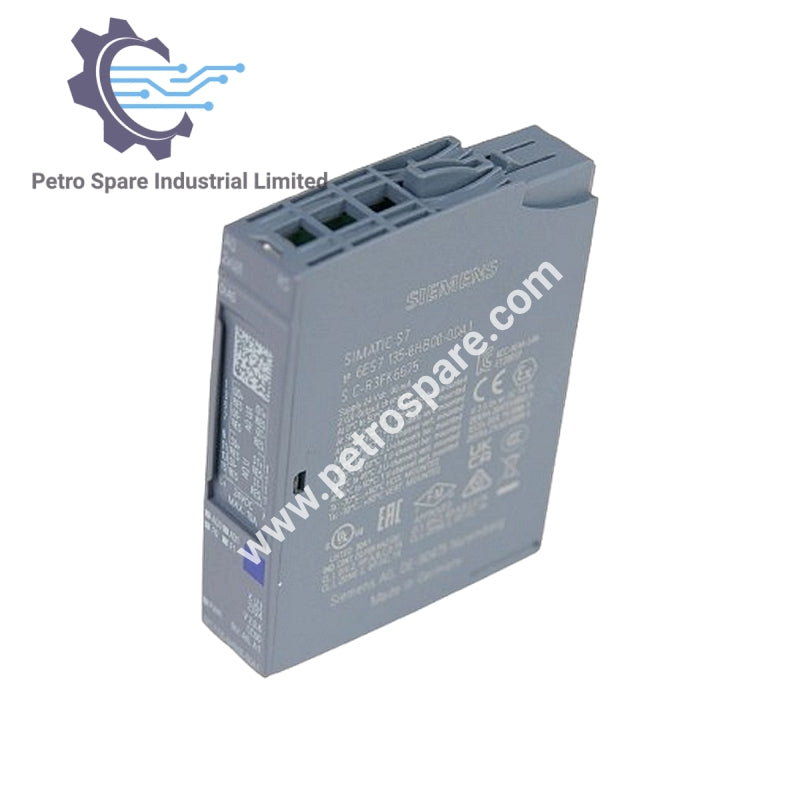

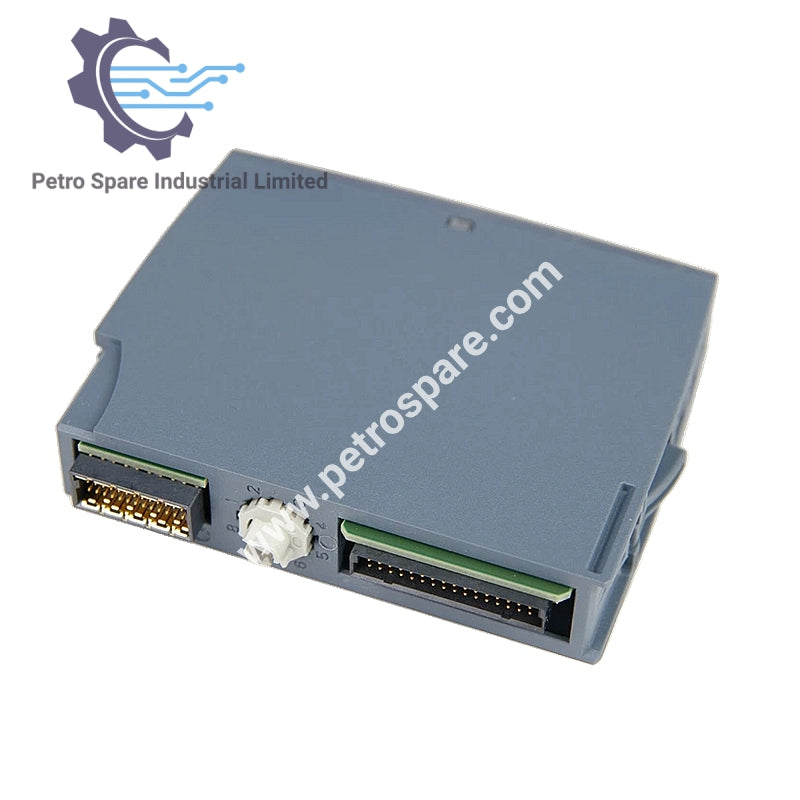

The Siemens 6ES7135-6HB00-0DA1 is an Analog Output Module for the ET 200SP system. It supports CiR (Configuration in RUN), reconfiguration, and calibration during operation, offering flexible and precise analog signal output for industrial automation.

Supply Voltage

• Rated Value (DC): 24 V

• Valid Range: 19.2–28.8 V DC

Input Current

• Rated Consumption: 45 mA (no load)

Power Loss

• Typical: 0.9 W

Address Area

• Per Module: Max. 4 bytes + 1 byte for QI information

• Oversampling Mode: Up to 32 bytes

Analog Outputs

• Number of Outputs: 2

• Voltage Output Protection: Short‑circuit protection

• Max Short‑Circuit Current: 45 mA

• Cycle Time (all channels): Min. 125 µs

• Oversampling Support: Yes

  • Values per cycle: Max. 16

  • Resolution: Min. 45 µs (2 channels), 35 µs (1 channel)

Output Ranges

• Voltage:

  • 0 to 10 V (15 bit)

  • 1 to 5 V (13 bit)

  • −5 to +5 V (15 bit incl. sign)

  • −10 to +10 V (16 bit incl. sign)

• Current:

  • 0 to 20 mA (15 bit)

  • −20 to +20 mA (16 bit incl. sign)

  • 4 to 20 mA (14 bit)

Ambient Conditions

• Horizontal Installation: 0 to 60 °C

• Vertical Installation: 0 to 50 °C

Dimensions

• Width: 15 mm

Physical Characteristics

• Weight: Approx. 31 g

---
