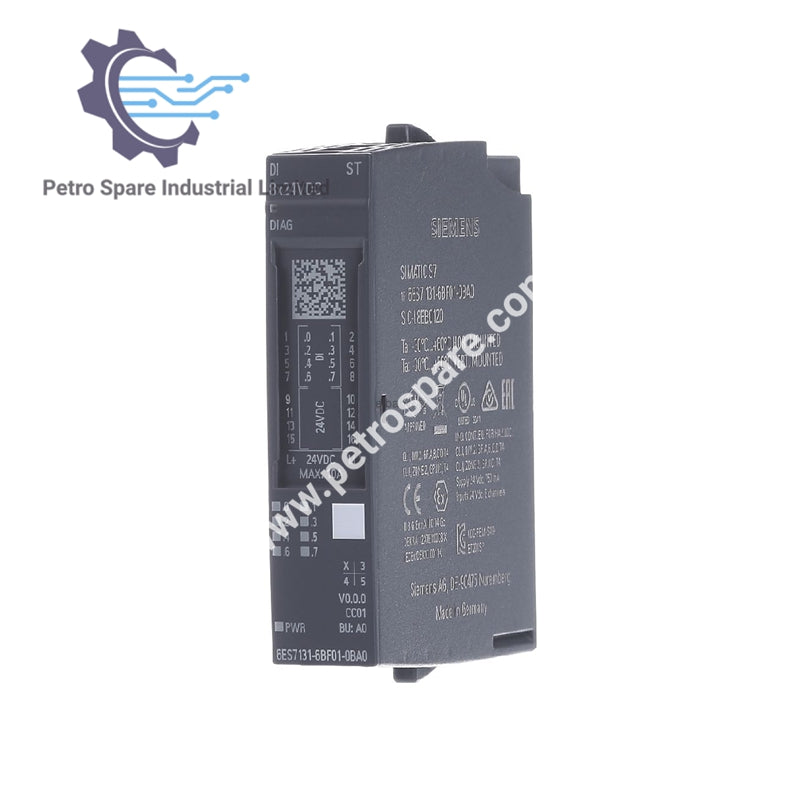

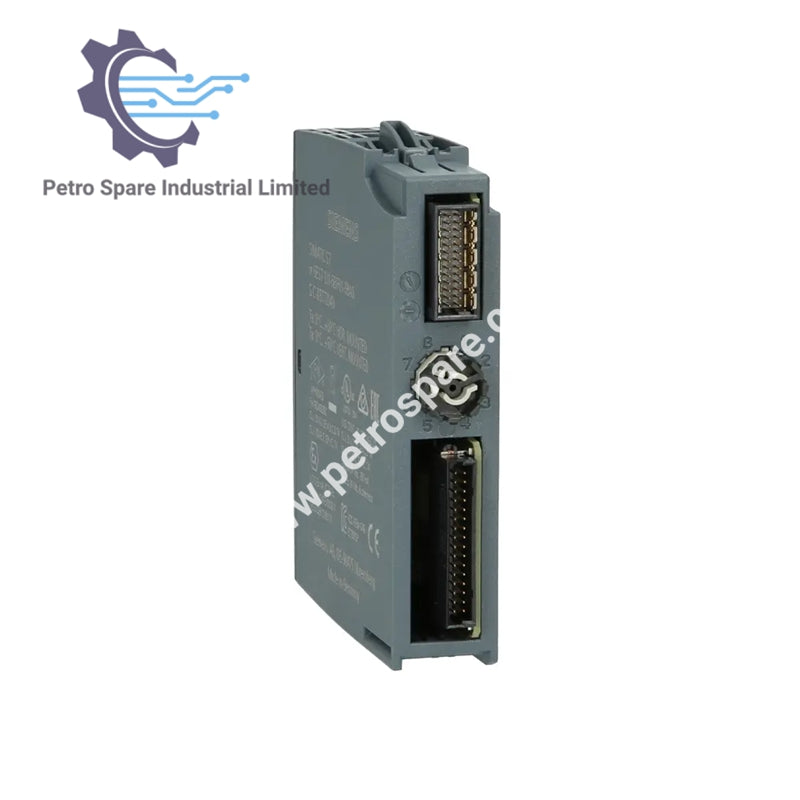

6ES7131-6BF01-0BA0

Product Overview

SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01

Input delay time 0.05–20 ms

Module diagnostics for shortcircuit of sensor supply, wire break, supply voltage

Technical Specifications

• Hardware functional status: From FS02

• Firmware version: V0.0

• FW update possible: No

• Usable BaseUnits: BU type A0

• Color code for module-specific color identification plate: CC01

Product Function

• I&M data: Yes, I&M0 to I&M3

• Isochronous mode: No

Engineering

• STEP 7 TIA Portal configurable/integrated from version V14

• STEP 7 configurable/integrated from version V5.5 SP3 or higher

• PCS 7 configurable/integrated from version V8.1 SP1

• PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher

• PROFINET from GSD version/GSD revision: GSDML V2.3

---
