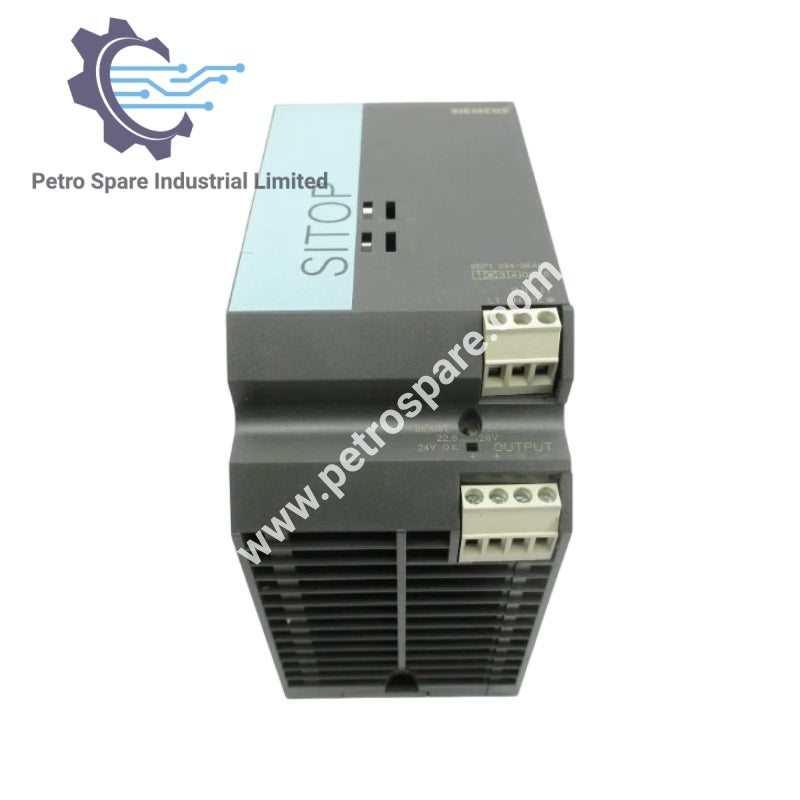

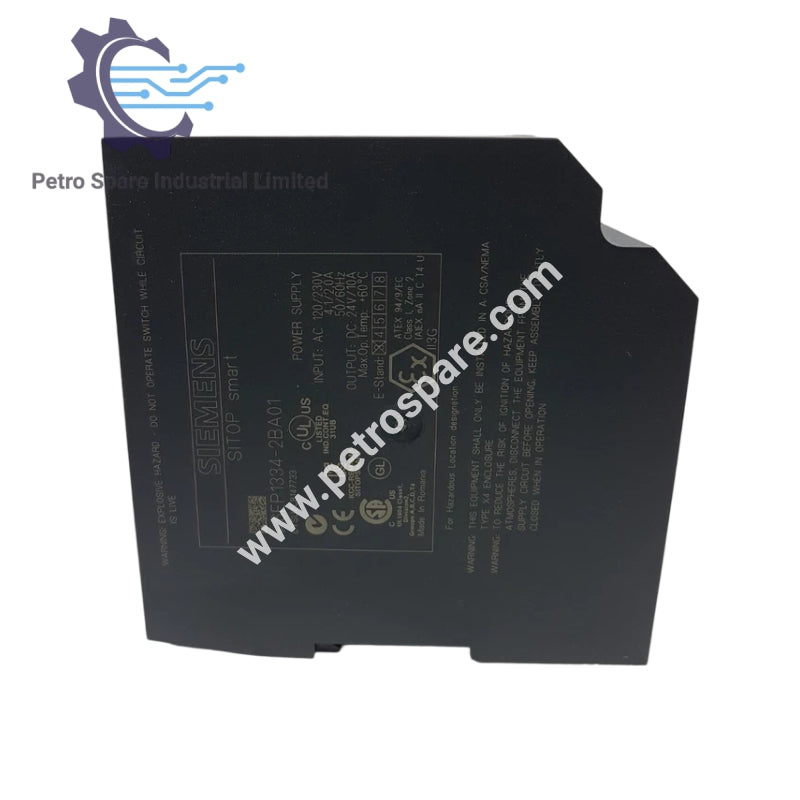

6EP1334-2BA01

Overview

• Model: 6EP1334-2BA01

• Type: Stabilized Power Supply (24 V / 10 A)

• Application: Industrial DC power supply for automation systems, providing reliable regulated output with fast response to load changes

Input Characteristics

• Power Supply Network: 1‑phase AC

• Supply Voltage (AC):

  • Rated value 120 V

  • Rated value 230 V

• Input Voltage Range (AC):

  • 85 … 132 V

  • 170 … 264 V

• Configuration: Selector switch on device

Efficiency & Control

• Efficiency: ~91% (at rated output)

• Power Loss: ~24 W (at rated output)

• Dynamic Mains Compensation: ±0.3% (Vin ±15%)

• Dynamic Load Smoothing: ±1% (50/100/50% load step)

• Load Step Setting Time:

  • 50 → 100%: 0.2 ms (typical)

  • 100 → 50%: 0.2 ms (typical)

Output Characteristics

• Output Voltage (DC, rated): 24 V

• Output Current (DC): 10 A

• Voltage Curve: Controlled, isolated DC

• Voltage Tolerance (static): ±3%

• Mains Compensation (static): 0.1%

• Load Balancing (static): 0.5%

• Residual Ripple (peak‑peak):

  • Max: 150 mV

  • Typical: 50 mV

• Spikes (20 MHz bandwidth, peak‑peak):

  • Max: 240 mV

Environmental Conditions

• Operating Temperature: 0 … 60 °C (natural convection)

• Transport Temperature: –40 … +85 °C

• Storage Temperature: –40 … +85 °C

---
