Overview

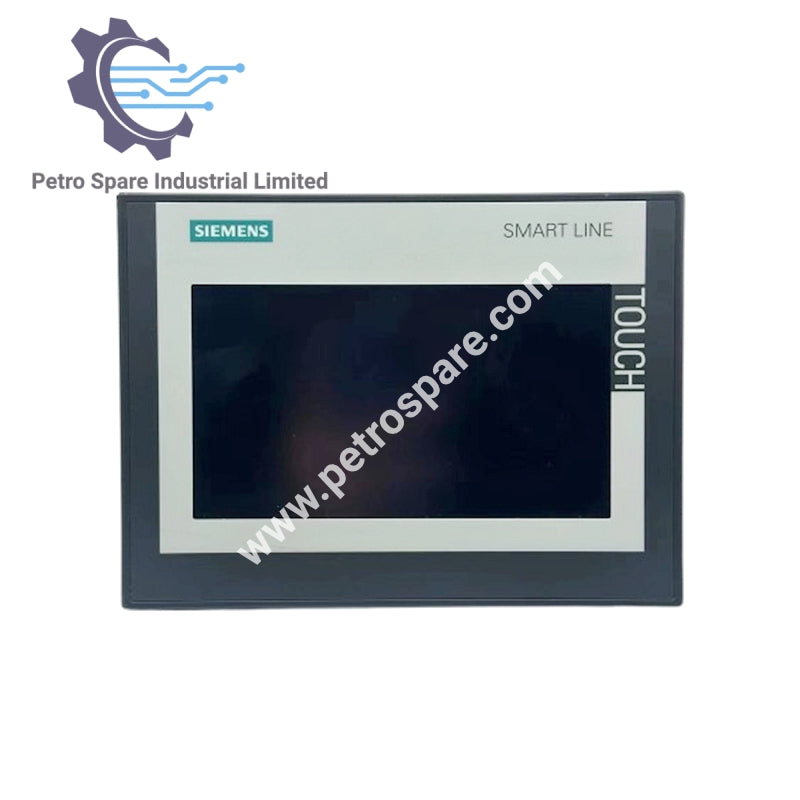

The Siemens 6AV6648-0CC11-3AX0 is a SIMATIC HMI SMART 700 IE V3 panel with a 7" widescreen TFT display, designed for intuitive touch operation and industrial automation applications.
General Information
-
Panel type: SMART Panel
-
Display size: 7" widescreen TFT
-
Number of colors: 65,536
-

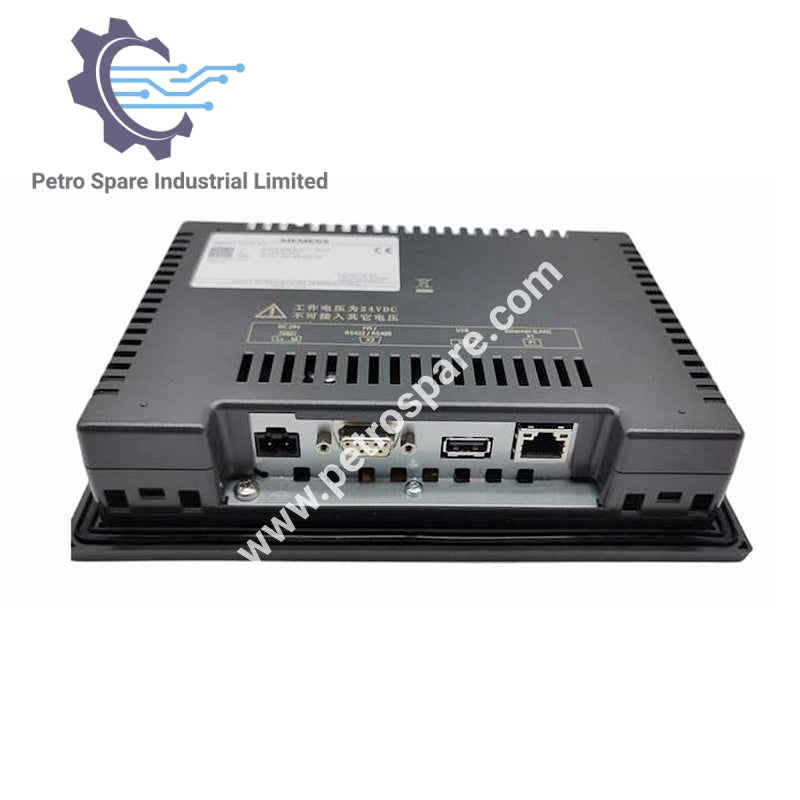

Interfaces: RS422/485, Ethernet (RJ45), host USB type A
-
RTC support: Yes
-
Configuration software: WinCC flexible SMART
-
Compliance: CE certified
Display Specifications
-
Display width: 154.1 mm
-
Display height: 85.9 mm
-
Resolution: 800 × 480 pixels
-
Backlighting MTBF: 20,000 h at 25 °C
-
Backlight dimmable: No
Processor and Memory
-
Processor type: ARM, 600 MHz
-
Flash memory: Yes
-
RAM: Yes
-
User data memory: 8 MB
Audio
-
Buzzer: Yes
-
Speaker: No
Physical Dimensions
-
Housing width: 209 mm
-
Housing height: 155 mm
-
Mounting cutout width: 192 mm
-
Mounting cutout height: 138 mm
-
Overall depth: 39 mm
Weight
-
Weight without packaging: 765 g
