6AV6641-0CA01-0AX1

Overview

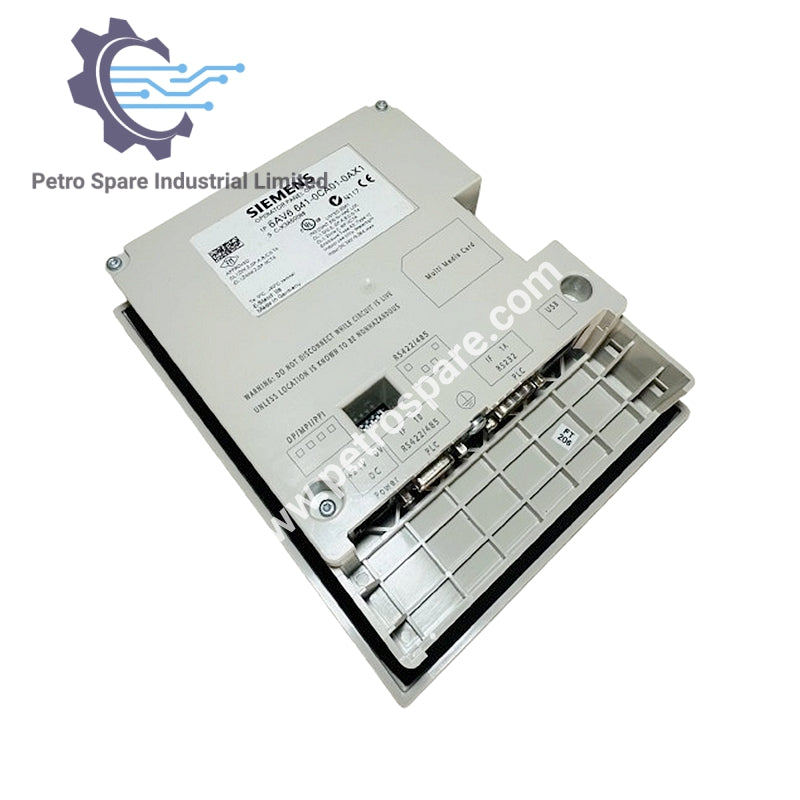

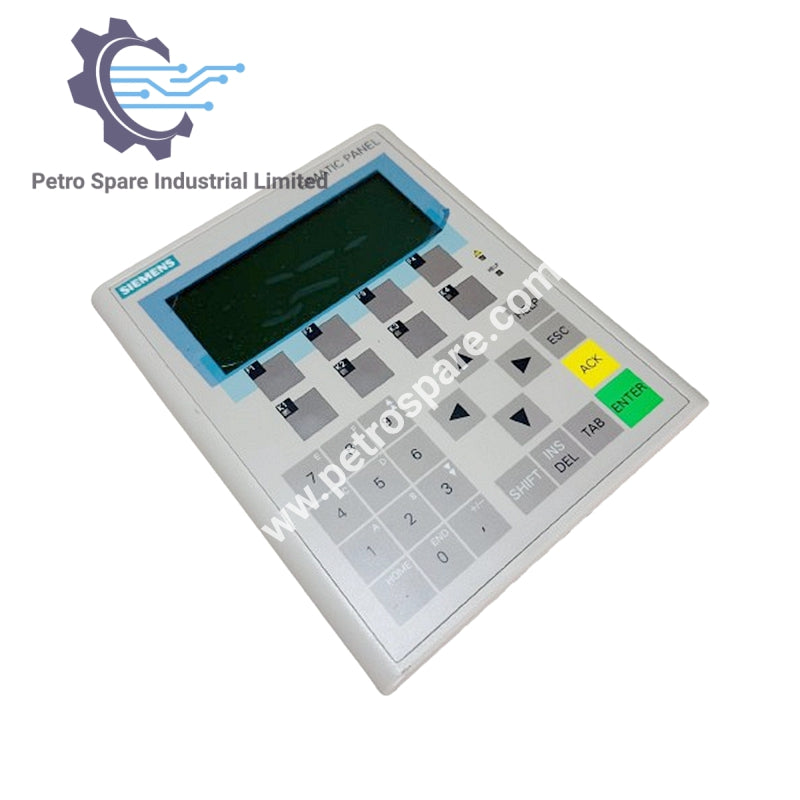

6AV6641-0CA01-0AX1 is a Siemens SIMATIC Operator Panel OP77B with LC backlit 4.5" STN display, graphics capability, MPI/PROFIBUS DP interface, printer/USB connectivity, MMC slot, and configuration via WinCC flexible 2004 Compact.

Display

• Design: STN

• Diagonal: 4.5 in

• Colors: 2 (black/white)

• Resolution: 160 × 64 pixels

• Backlight MTBF (25 °C): 100,000 h

Control Elements

• Keyboard: Membrane type

Processor & Memory

• Processor type: ARM

• Memory type: Flash / RAM

• User memory available: 1000 KB

Indicators

• Info LED: Yes

• Power LED: No

• Error LED: No

Dimensions & Weight

• Front width: 150 mm

• Front height: 186 mm

• Cutout width: 135 mm

• Cutout height: 171 mm

• Depth: 38.5 mm

• Weight: 0.5 kg

---
