6AV3617-1JC20-0AX1

Product Overview

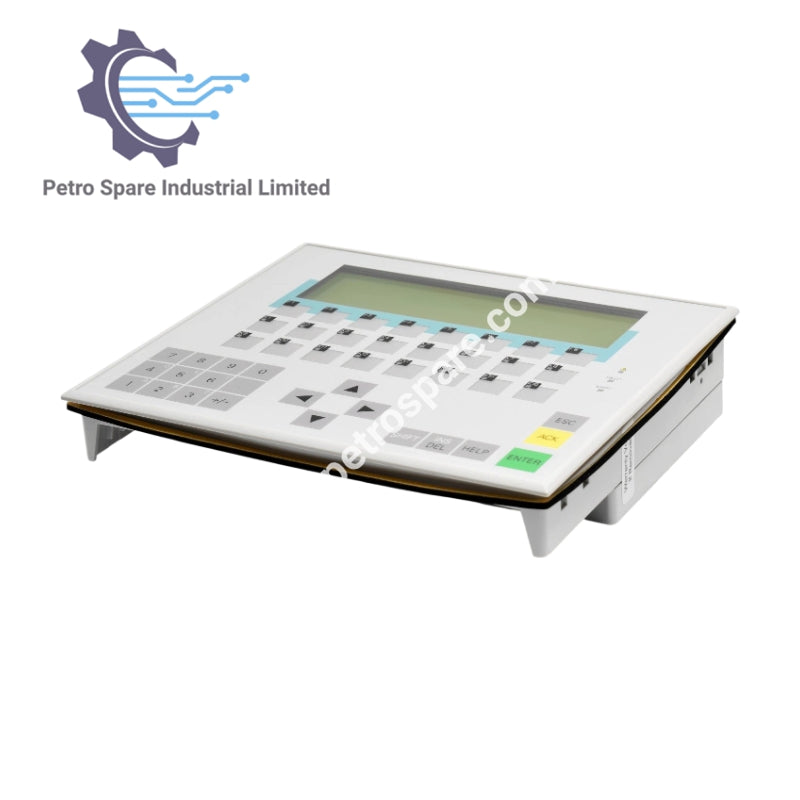

6AV3617-1JC20-0AX1 is an operator panel with a backlit LC display, suitable for SIMATIC S7 and PROFIBUS-DP applications.

Technical Specifications

• Display
  • Type: LC display
  • Number of lines, max.: 8
  • Characters per line, max.: 40
  • Backlighting: Yes
  • MTBF backlighting (at 25 °C): ~200,000 hours
• Control Elements
  • Operating options: Keys
  • Function keys, programmable: 24 function keys, 16 with LEDs
  • Membrane keyboard: Yes
• Supply Voltage
  • Type of supply voltage: 24 V DC
  • UPS connectable (serial): No
  • Rated current: 0.34 A
  • Power: 10 W
• Drives
  • Diskette drive: No
  • CD-ROM: No
  • Hard disk: No
• Memory
  • Type: Flash / RAM
  • Usable memory for user data: 256 KB
• Battery
  • Backup battery: Optional 3.6 V
