6AV2124-1QC02-0AX1

Product Overview

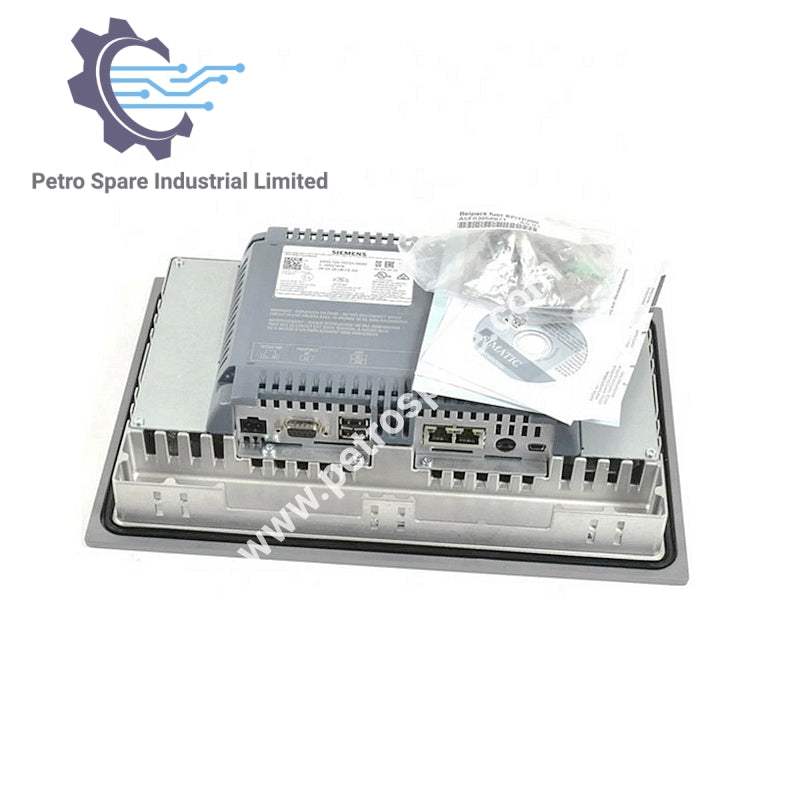

6AV2124-1QC02-0AX1 is a Siemens SIMATIC HMI KP1500 Comfort panel with key operation, 15" widescreen TFT display, 16 million colors, PROFINET and MPI/PROFIBUS DP interfaces, 24 MB configuration memory, and compatibility with WinCC Comfort V14 SP1 or higher.

Display

• Technology: TFT

• Diagonal: 15.4 in

• Width: 331.2 mm

• Height: 207 mm

• Colors: 16,777,216

• Resolution: 1280 × 800 pixels

• Backlight MTBF (25 °C): 80,000 h

• Backlight dimmable: Yes (LED)

Electrical Data

• Input current (nominal): 1.7 A

• Inrush current (I²t): 0.5 A²·s

• Power consumption (typ.): 41 W

Processor & Memory

• Processor type: X86

• Flash memory: Yes

• RAM: Yes

• User memory available: 24 MB

Dimensions & Weight

• Front width: 483 mm

• Front height: 310 mm

• Cutout width: 450 mm

• Cutout height: 291 mm

• Depth: 75 mm

• Weight: 4.7 kg

---
