6AV2123-2MA03-0AX0

Overview

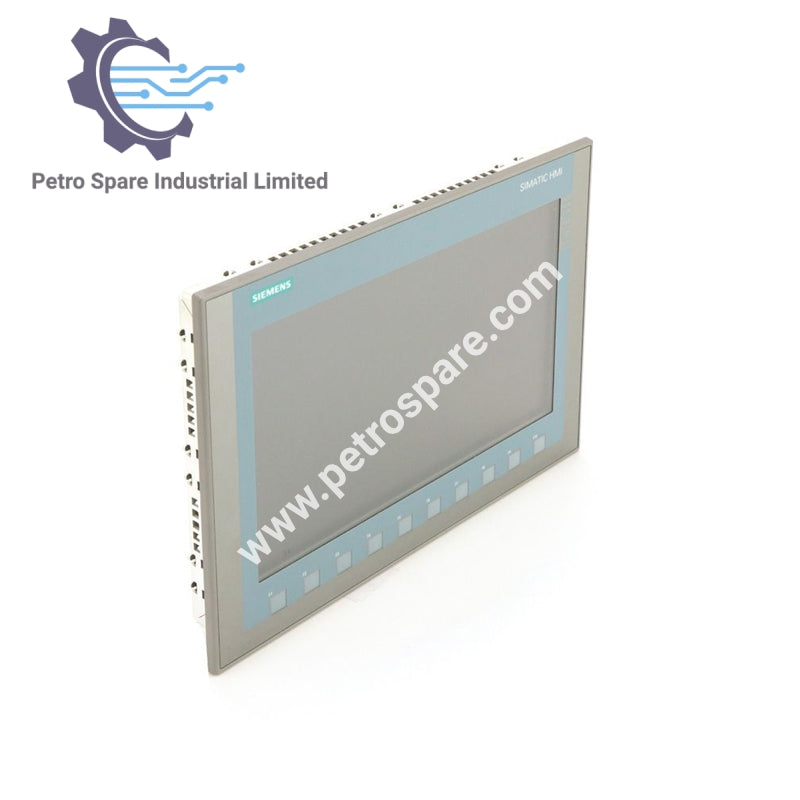

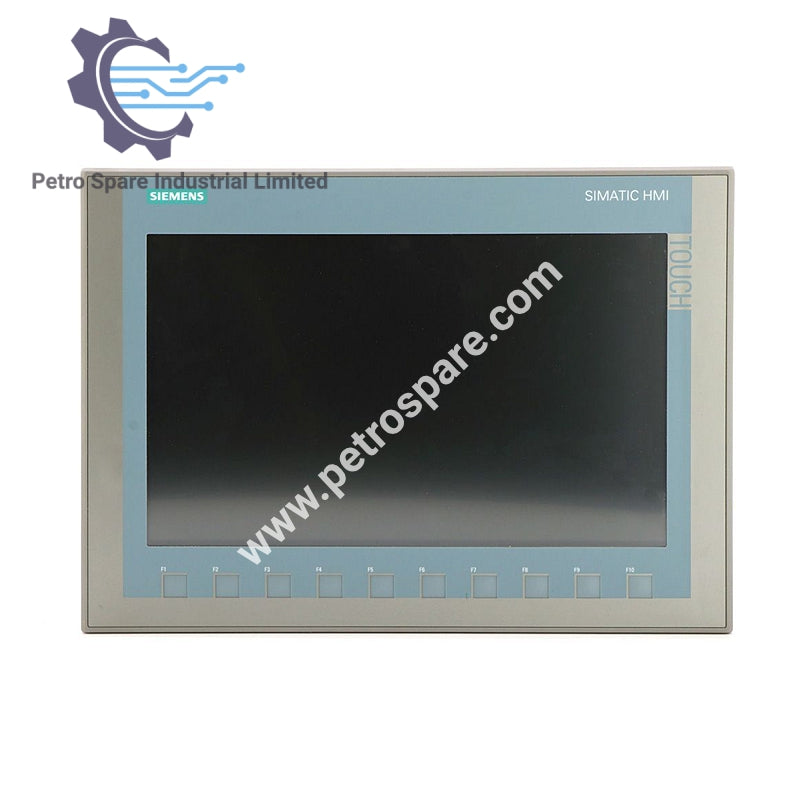

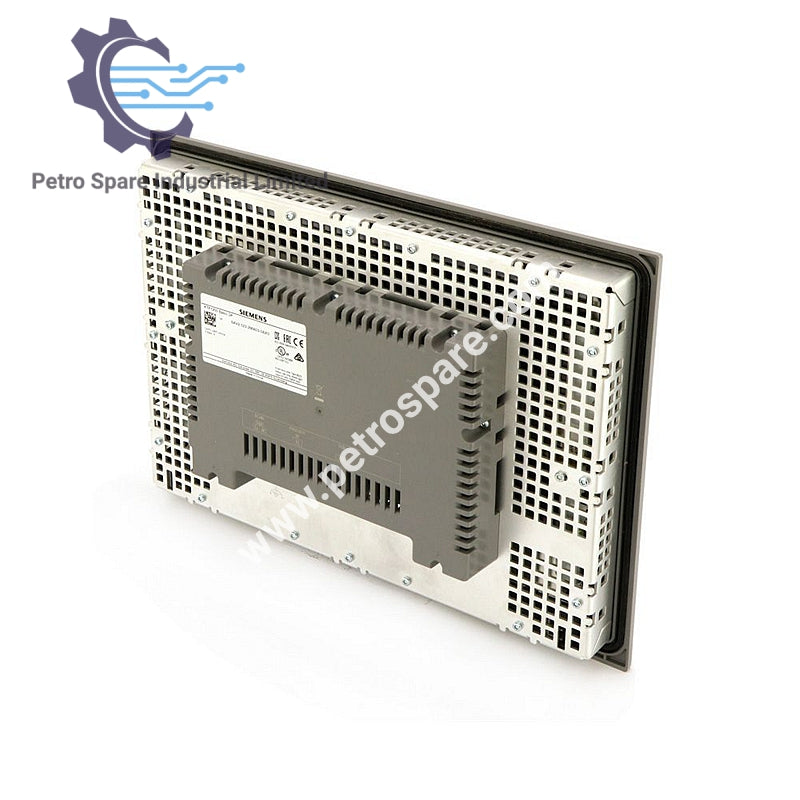

6AV2123-2MA03-0AX0 is a Siemens SIMATIC HMI KTP1200 Basic DP Panel with a 12" TFT touchscreen, supporting PROFIBUS and configurable via WinCC Basic V13/STEP 7 Basic V13.

Display Specifications

• Type: TFT widescreen, LED backlighting

• Screen Diagonal: 12 in

• Width: 261.1 mm

• Height: 163.2 mm

• Number of Colors: 65,536

• Resolution: 1,280 × 800 pixels

• Backlight MTBF: 20,000 h

• Backlight Dimmable: Yes

• Operation: Key/touch

Supply Voltage

• Type: DC

• Rated Voltage: 24 V

• Permissible Range: 19.2–28.8 V

Mechanical & Material

• Enclosure Material: Plastic (front)

• Housing Front Width: 330 mm

• Housing Front Height: 245 mm

• Mounting Cutout Width: 310 mm

• Mounting Cutout Height: 221 mm

• Overall Depth: 54.9 mm

• Weight: 1,710 g

---
