Product Overview

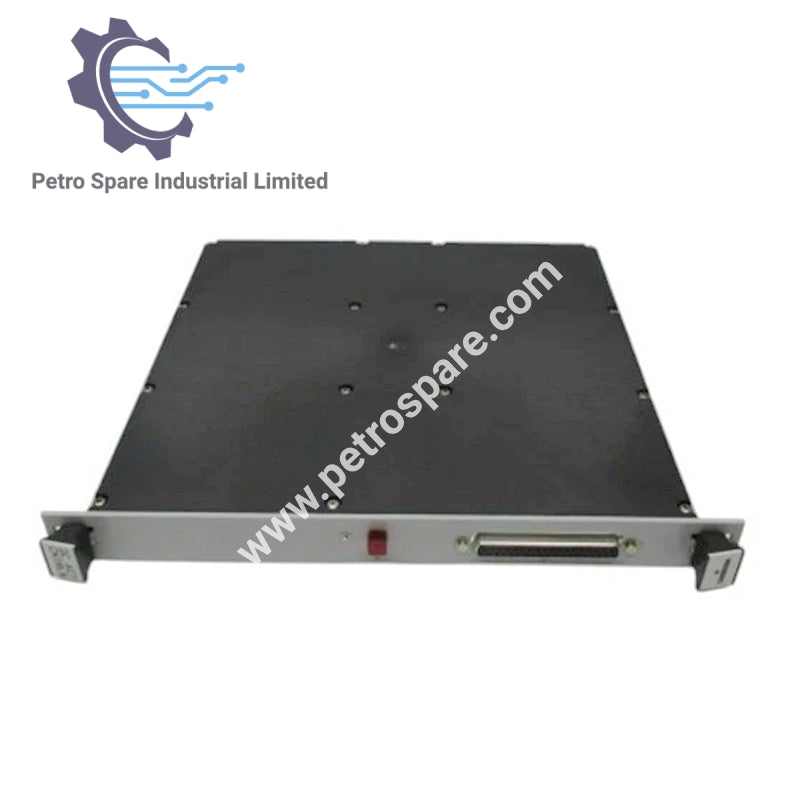

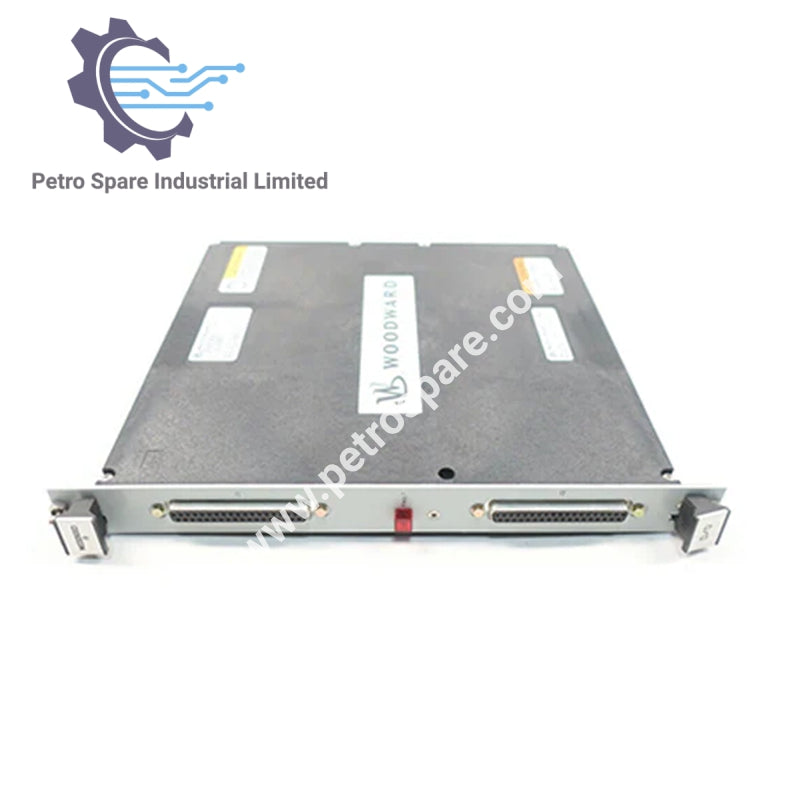

5501-432 is an Actuator Control Module by Woodward designed for precise control of two independent actuator channels at 200 mA with integrated diagnostics and fault monitoring.
General Information
-
Manufacturer: Woodward
-
Part Number: 5501-432
-
Product Type: Actuator Control Module
-
Number of Channels: 2
Functional Description
-
Control Type: Integrating or proportional, hydromechanical, or pneumatic actuators
-
Feedback Devices: 1 or 2 per channel
-
Actuator Feedback: Provides position feedback for accurate control
Electrical Characteristics
-
Operating Current: 200 mA
-
Output Channels: Two independent channels for separate actuator control
Interface and Cabling
-
Required Cable: MicroNet low-density discrete (gray) cable
-
Alternative Cable: Digital (black) cable for specific configurations
Monitoring and Diagnostics
-
Diagnostic Functions: Real-time fault and status reporting
-
Health Monitoring: Provides actuator performance data and alarm indications
-
Maintenance Support: Facilitates troubleshooting and reduces downtime
