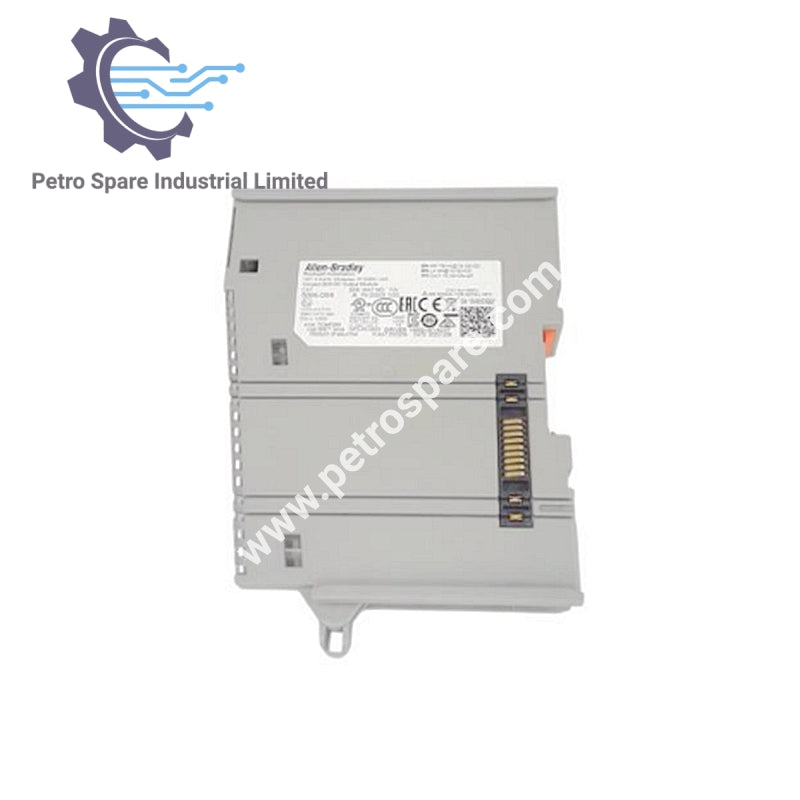

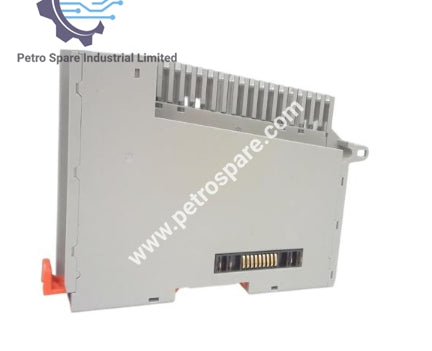

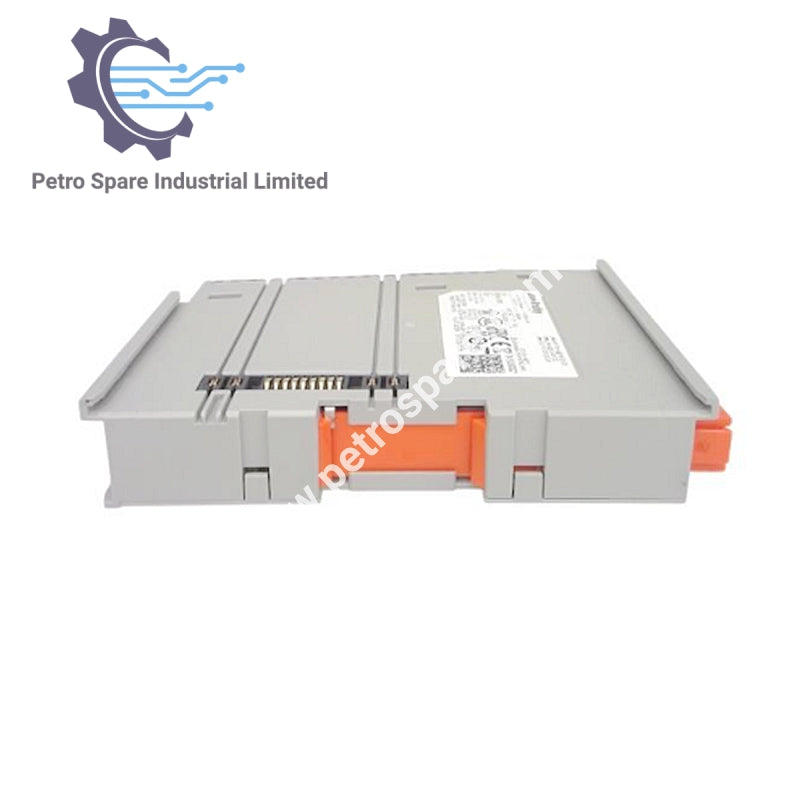

5069-OB8

Overview

• Model: 5069-OB8

• Type: DC Digital Output Module

• Brand: Rockwell Allen‑Bradley

• Series: Compact 5000 I/O

• Application: 8‑point 24 V DC digital output, industrial automation

Output Specifications

• Number of Outputs: 8 channels (2 groups of 4)

• Output Voltage (Nominal): 24 V DC

• Output Voltage Range: 10–32 V DC

• Output Current per Channel: 2.0 A

• Output Current per Group: 4.0 A

• Output Current per Module: 8.0 A

• Output Delay Time: ≤ 100 µs ±10 µs @ 25 °C, 0.5 A load

• Minimum Pulse Width: 200 µs @ 0.5 A, 25 °C

• Output States (Fault/Program Mode): Hold last state, ON, OFF (default)

Electrical Characteristics

• Power Dissipation: 3.2 W

• Voltage Category: 24 V DC

• Isolation Voltage: 250 V continuous (basic insulation)

Mechanical Specifications

• Slot Width: 1

• Terminal Block Options: 5069‑RTB18‑SPRING RTB, 5069‑RTB18‑SCREW RTB

• Enclosure Type: None (open‑style)

Performance Features

• CIP Sync: Supported

• Pattern Matching: Supported

---
