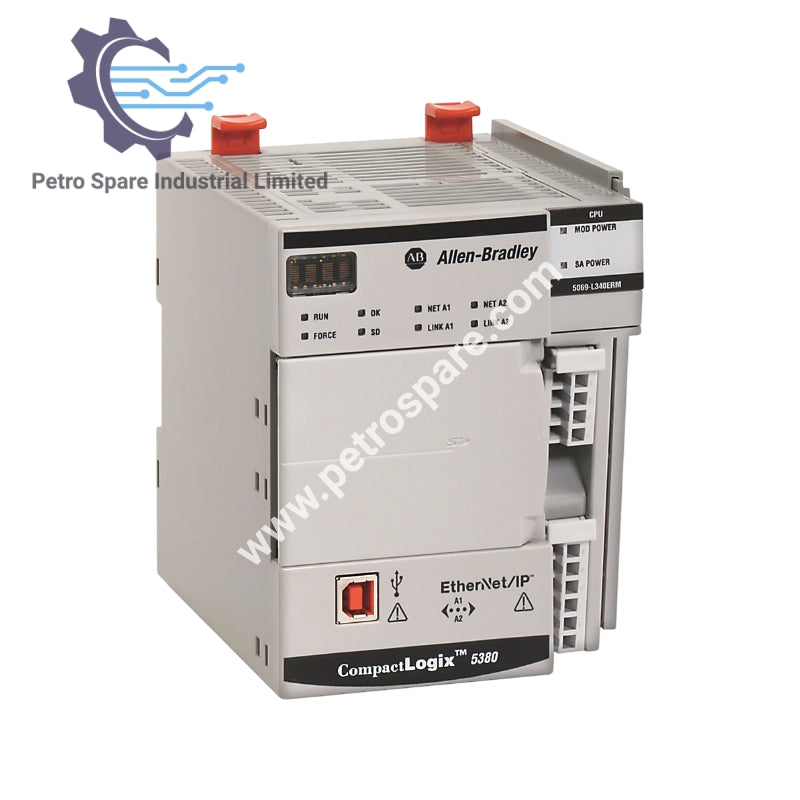

5069-L330ERS2

Overview

• Model: 5069-L330ERS2

• Type: Compact GuardLogix SIL2 Controller

• Application: Safety‑rated CompactLogix controller with integrated GuardLogix functionality, supporting SIL2 applications

General Specifications

• Product Line: CompactLogix 5069

• Part Number: 5069-L330ERS2

• Weight: 0.71 kg (1.56 lbs)

• Module Type: Compact GuardLogix Controller

• Series: CompactLogix

Memory & Tasks

• Application Memory: 3 MB

• Safety Memory: 1.5 MB

• Non‑volatile Memory: 2 GB via 1784‑SD2 (included)

• Tasks: 31 standard tasks + 1 safety task

• Controller Tasks: 32 total

• Programs per Task: 1000

• User Memory: 3 MB + 1.5 MB safety

Safety & Ratings

• SIL Rating: SIL 2

• Integrated Motion: Yes

• Maximum Motion Axes: None

Communication

• Ports:

  • 2 × Ethernet/IP ports

  • 1 × USB Type B 2.0 full‑speed

• Ethernet/IP Topologies: Device Level Ring, Star, Linear

• Communication Rates:

  • Ethernet: 10 Mbps / 100 Mbps / 1 Gbps

  • USB: 12 Mbps

I/O & Programming

• Local I/O Modules Supported: 31

• Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, Sequential Function Chart

---
