Overview

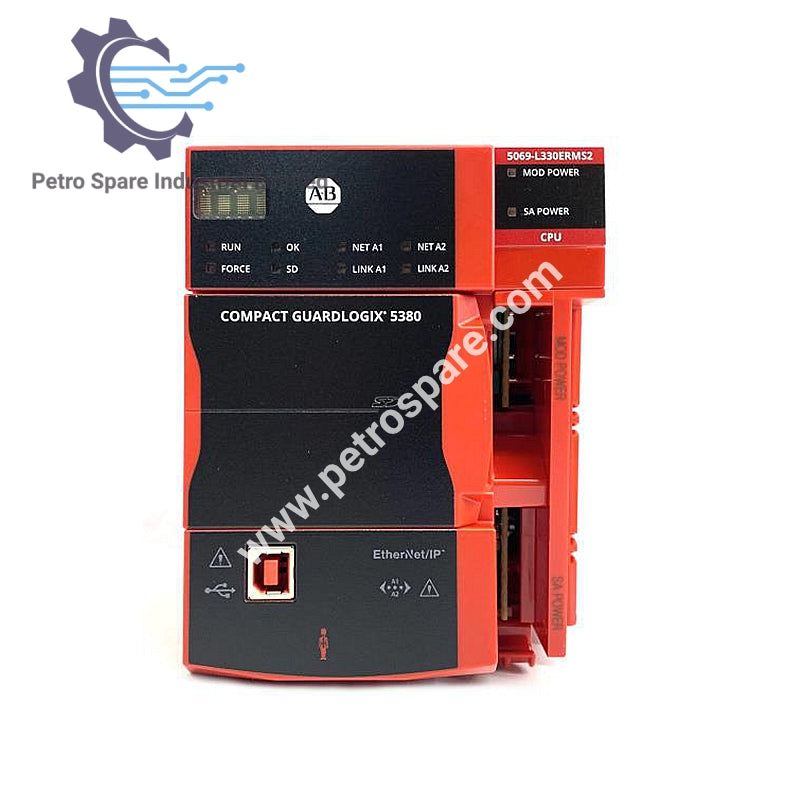

Allen-Bradley 5069-L330ERMS2 is a Compact GuardLogix 5380 SIL 2 controller module with advanced safety, communication, and high-capacity I/O performance.

Controller Tasks

• Task Types: Continuous, Periodic, Event

• Capacity: 31 standard tasks, 1 safety task

• Programs per Task: 1000

• Event Triggers: All supported

Communication Ports

• USB Port: 1 (USB 2.0, Type B, full speed 12 Mbps, for programming, configuration, firmware update, online edits only)

• Ethernet Ports: 2

• Ethernet Performance: 10 Mbps, 100 Mbps, 1 Gbps, full-duplex only

• Modes Supported: Dual-IP mode (unique IP per port), Linear/DLR mode (single IP)

• Network Topologies: DLR, Star, Linear

I/O Capacity

• Class 0/1 I/O (Max):

  • 128,000 without CIP Security

  • 40,000 with integrity

  • 20,000 with integrity and confidentiality

Message Rate Capacity

• HMI/MSG (Class 3 Max):

  • 2000 without CIP Security

  • 1500 with integrity

  • 900 with integrity and confidentiality

---
