5069-L310ER

Overview

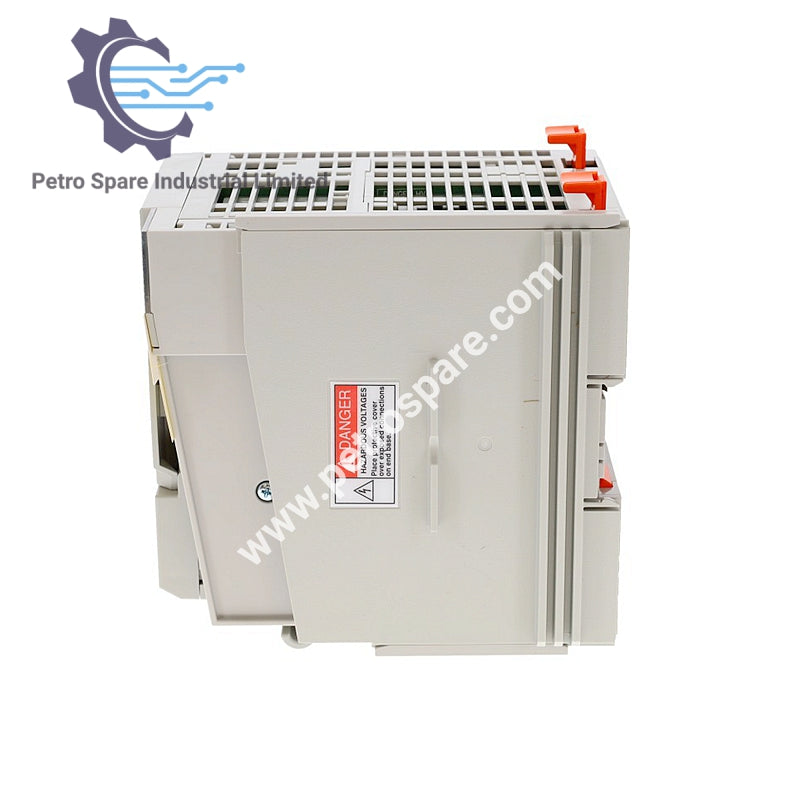

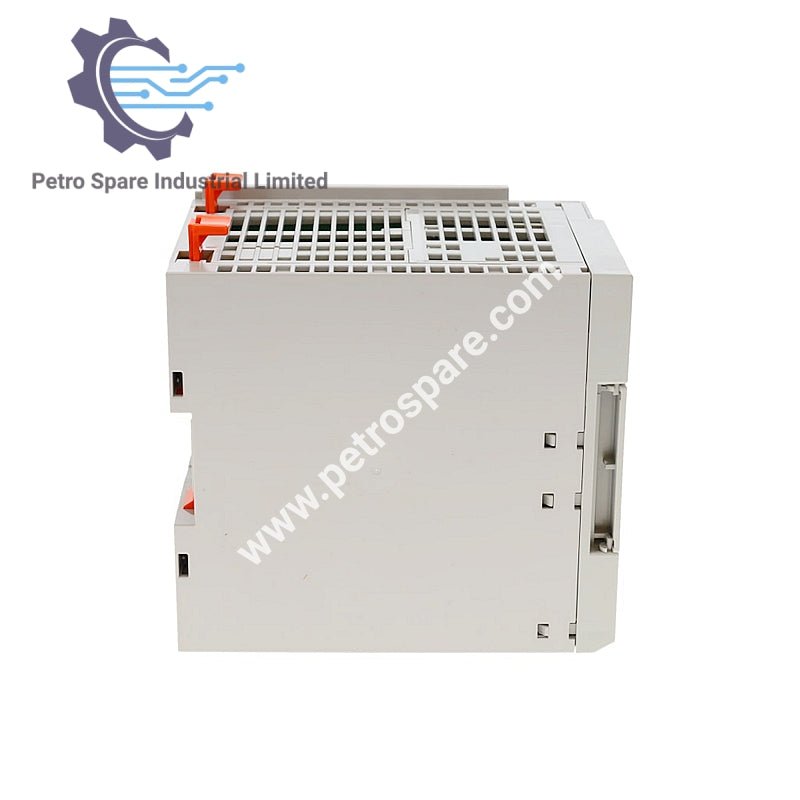

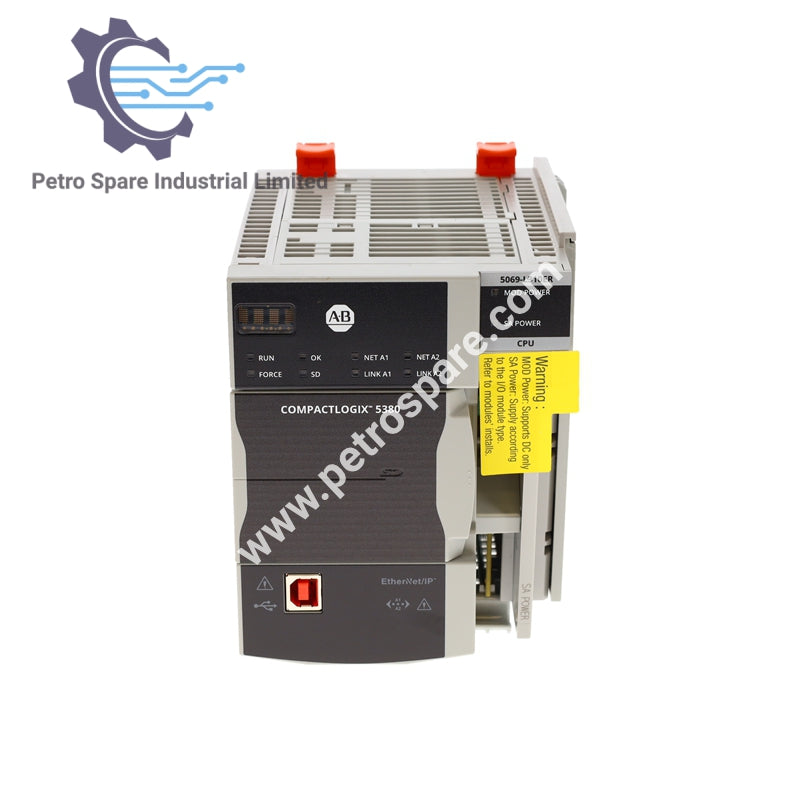

Allen-Bradley 5069-L310ER is a CompactLogix 5380 controller module with 1 MB user memory, supporting up to 8 local I/O modules and 24 EtherNet/IP devices.

Specifications

• Category: Controllers

• Controller: CompactLogix 5380

• Controller Capacity: 1 MB

• I/O Modules (Max): 8

• EtherNet/IP Nodes (Max): 24

• Integrated Motion: None

• Safety Rating Selection: None

• Communications Protocols: EtherNet/IP, EtherNet/OCPP

• Software, Configuration: RSLogix5000 / Studio 5000 (Logix Designer)

• Catalog Number: Controller, CompactLogix 5380, 1 MB User Memory, 8 I/Os, 24 EtherNet/IP Devices

Environmental Ratings

• Operating Temperature (Max): 50 °C

• Operating Temperature (Min): 0 °C

• Storage Temperature (Max): 85 °C

• Storage Temperature (Min): -40 °C

• Relative Humidity (Max): 95 %RH

Notes

• Terminals: 5380 controllers do not include removable terminals; purchase 5069-RTB64-SCREW or 5069-RTB64-SPRING kits separately.

• SD Cards: High capacity SD cards (1784-SDHC8 and 1784-SDHC32) are supported only for CompactLogix 5069-L3 & 5069-L4 controllers, not for CompactLogix 1769 controllers.

---
