330104-00-06-20-01-00

Description

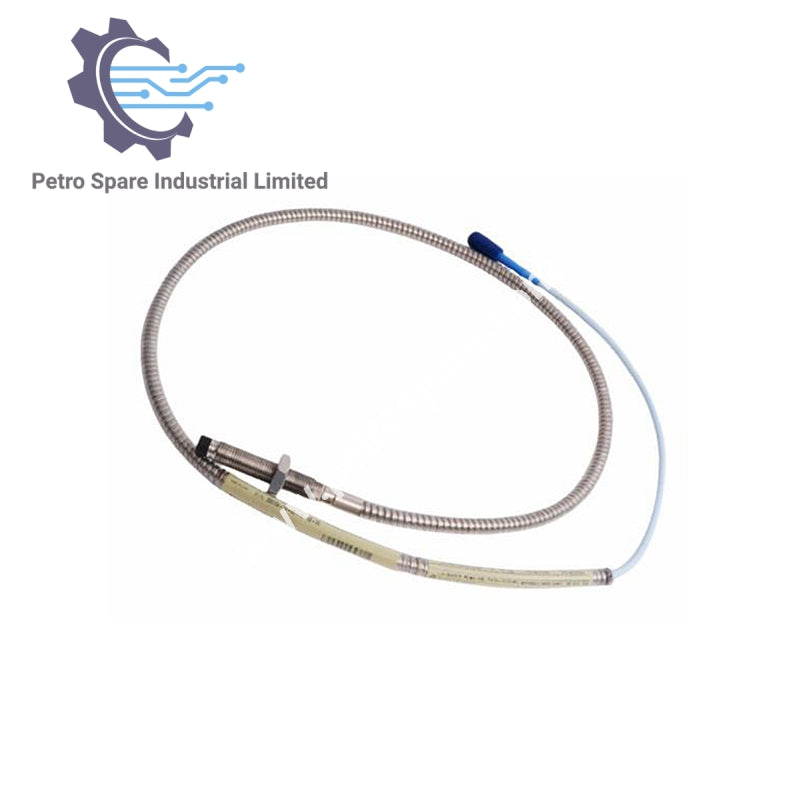

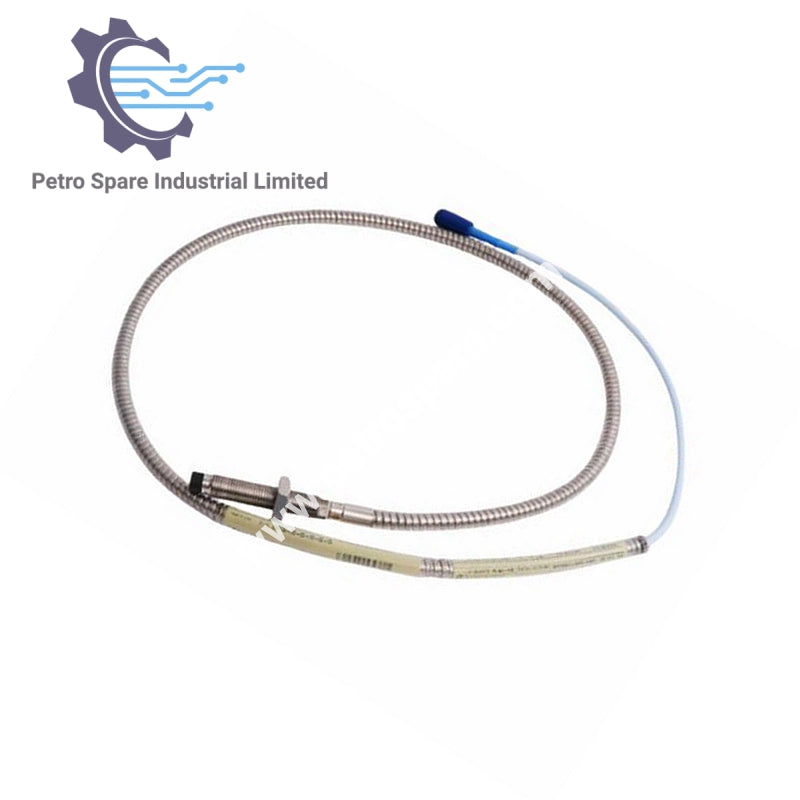

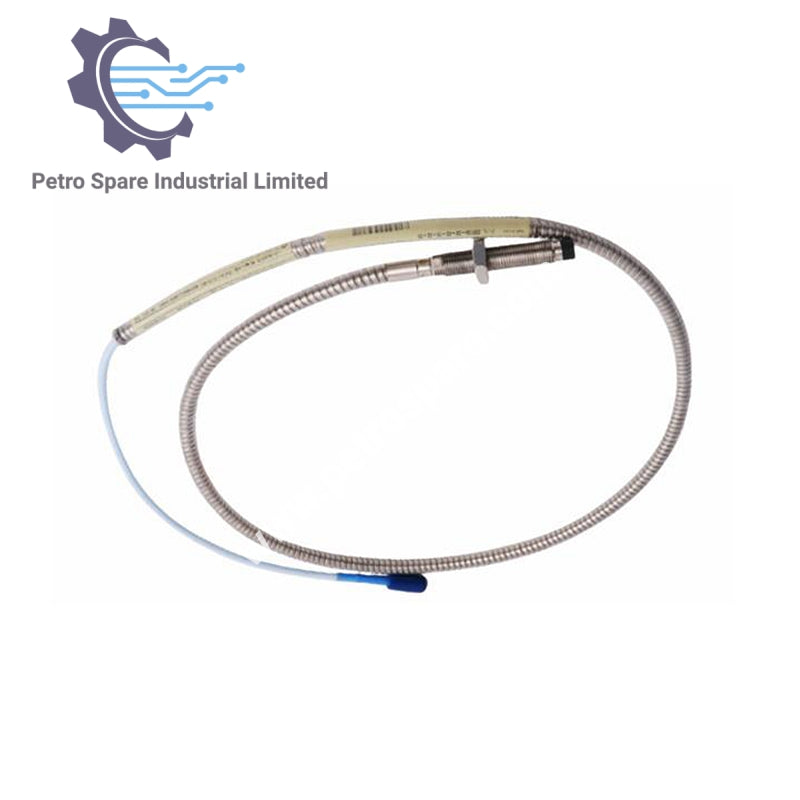

The Bently Nevada 330104-00-06-20-01-00 is a 3300 XL 8 mm proximity probe with a 60 mm case length and a 2.0 meter armored cable.

General Information

• Unthreaded length option: 00 = 0 mm

• Case length option: 06 = 60 mm

• Total cable length: 20 = 2.0 meters (6.6 feet)

• Connector and cable type: 01 = Miniature coaxial ClickLoc connector with connector protector, standard cable

• Agency approval: 00 = Not required

Mechanical

• Probe tip material: Polyphenylene sulfide (PPS)

• Probe case material: AISI 303 or 304 stainless steel (SST)

Cable Specifications

• Standard cable: 75Ω triaxial, FEP insulated, available in 0.5, 1, 1.5, 2, 3, 5, or 9 meters

---
