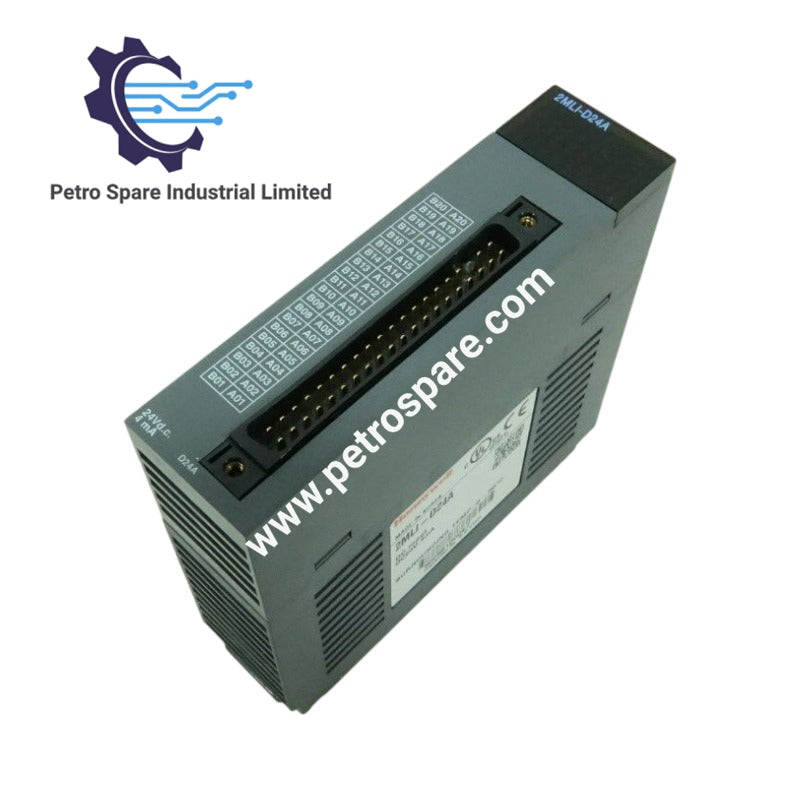

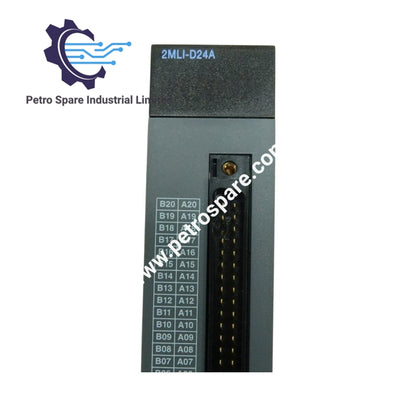

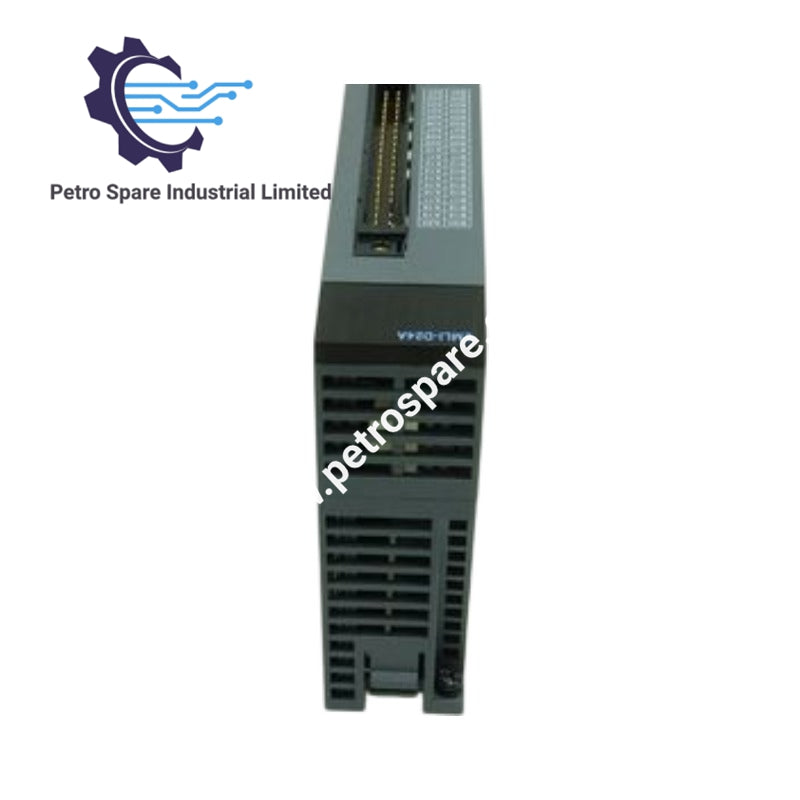

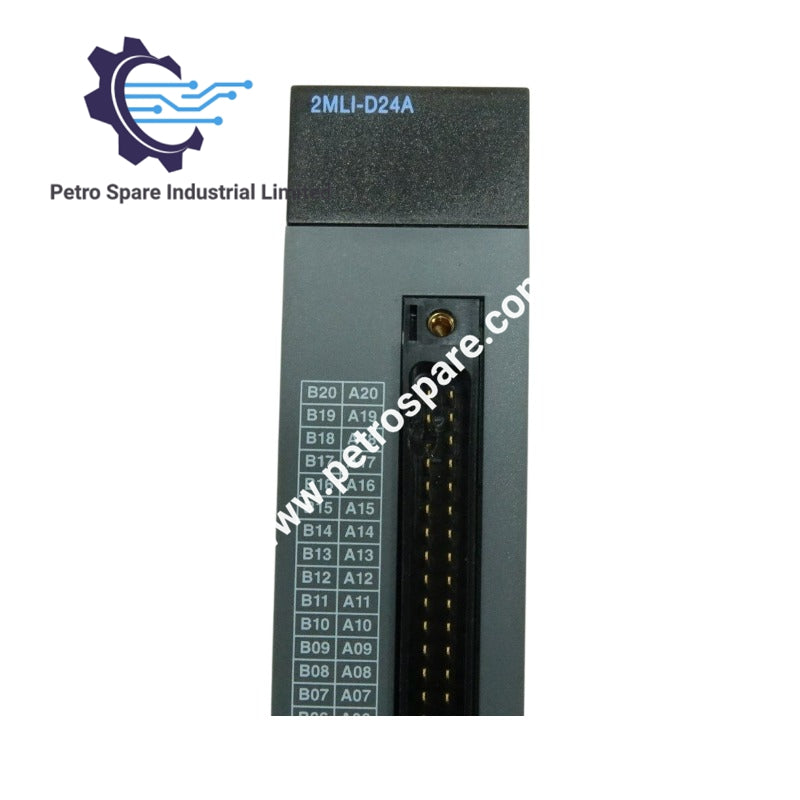

2MLI-D24A-CC

Product Overview

The Honeywell 2MLI-D24A-CC is a high-performance Digital Input Module belonging to the MasterLogic PLC (Programmable Logic Controller) series.

Technical Specifications

• Manufacturer: Honeywell
• Model/Part Number: 2MLI-D24A-CC
• Series: MasterLogic PLC
• Module Type: Digital Input Module

• Number of Input Points: 24 channels
• Rated Input Voltage: 24V DC
• Input Current: Approximately 4–5 mA per channel (typical)
• On-Voltage / On-Current: ≥ 19V DC / ≥ 3 mA
• Off-Voltage / Off-Current: ≤ 5V DC / ≤ 1 mA

• Response Time (OFF → ON): ≤ 3 ms or 5 ms (software configurable)
• Response Time (ON → OFF): ≤ 3 ms or 5 ms (software configurable)
• Isolation Method: Photo-coupler (optical isolation)
• Common Type (COM): Single common or group-based configuration depending on wiring base

• Environmental Protection: Conformal coated (CC) for enhanced resistance to moisture, dust, and chemicals
• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +70°C

• Status Indication: Front-panel LED indicators for channel monitoring and diagnostics

---
