2711P-T9W21D8S

Product Overview

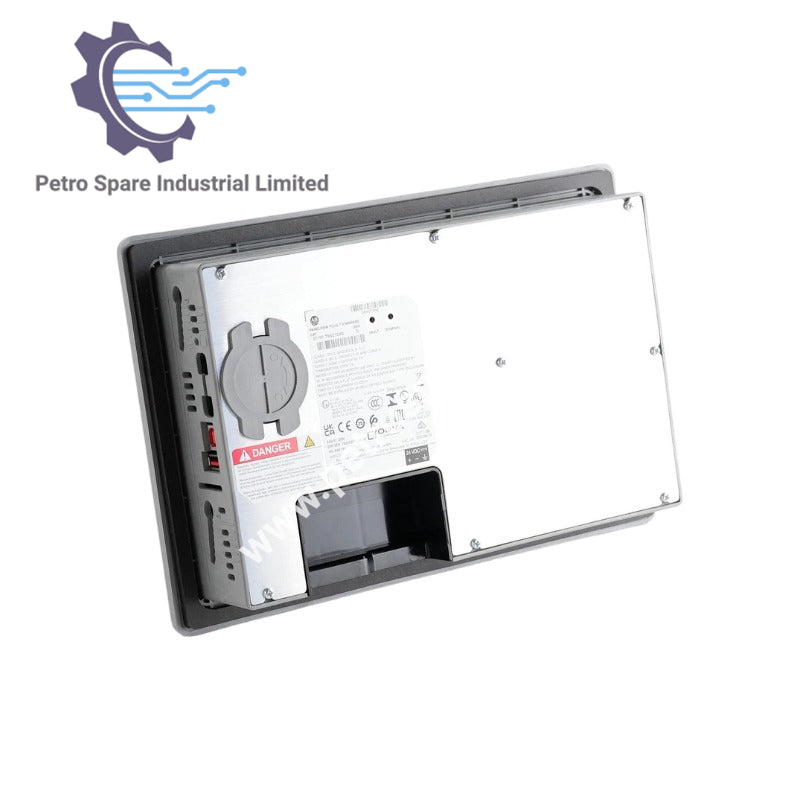

The Allen‑Bradley 2711P-T9W21D8S is a PanelView Plus 7 Standard operator terminal with a 9‑inch TFT touchscreen display, EtherNet/IP communication, and an integrated ARM processor for industrial HMI applications.

Display Specifications

• Display Technology: TFT (Thin Film Transistor)
• Display Size: 9 inches
• Display Resolution: 800 x 480 pixels
• Display Colours: 262 k
• Display Brightness: 300 cd/m²
• Display Backlight Life: 50,000 hours

Operator Input

• Operator Input Method(s): Touch
• Touch Screen Type: Resistive
• Operating Force, Touch Screen: 0.98 N

Processor & Memory

• Processor / CPU: ARM
• RAM, Installed: 512 MB
• Non‑Volatile Memory: 100 MB
• Memory Card Slots: 1 x SD/MMC

Real‑Time Clock & Battery

• Real Time Clock: Integrated
• Battery Type: Lithium
• Service Life, Battery: 4 years

Communication & Interfaces

• Ethernet Interfaces: 1 x 10/100 Mbps (RJ‑45)
• Communications Ports (On Board): 1 x USB Device Port
• Peripheral I/O Interface(s): 1 x USB Host
• Communications Protocols: EtherNet/IP, EtherNet/OCPP

Power Supply

• Power Supply: 18‑30 V DC
• Power Consumption (Max.): 50 W

Cutout Dimensions

• Height, Cutout: 162 mm
• Width, Cutout: 252 mm

Weight

• Weight: 1.29 kg

---
