2711-T5A5L1

Product Overview

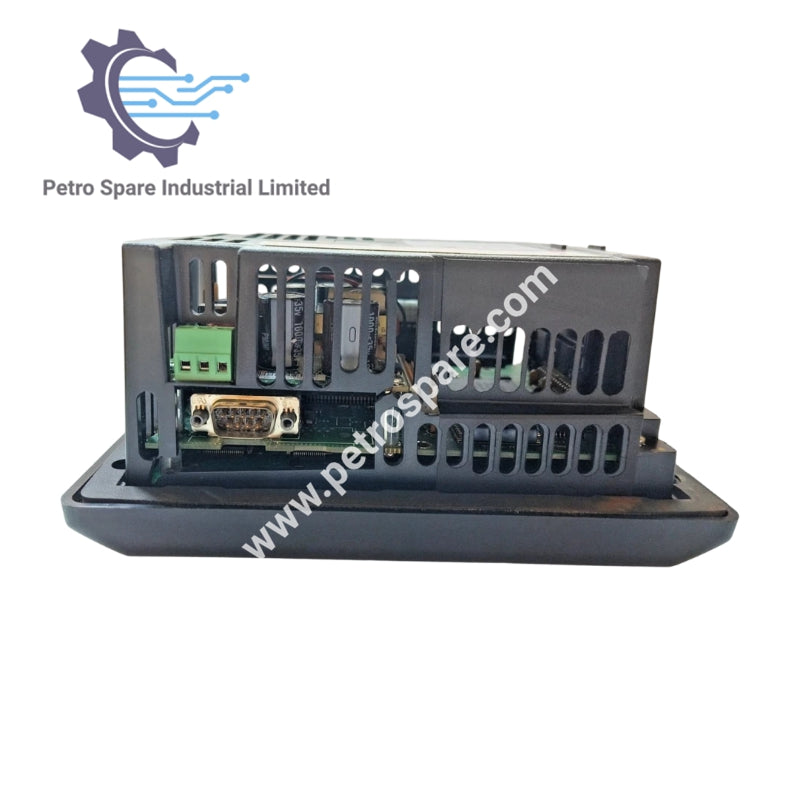

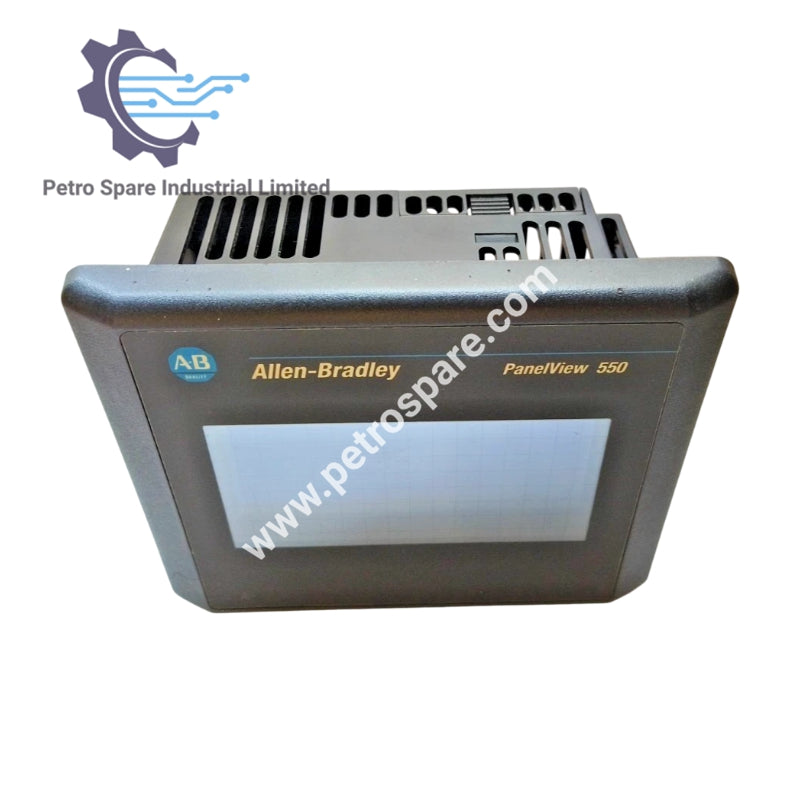

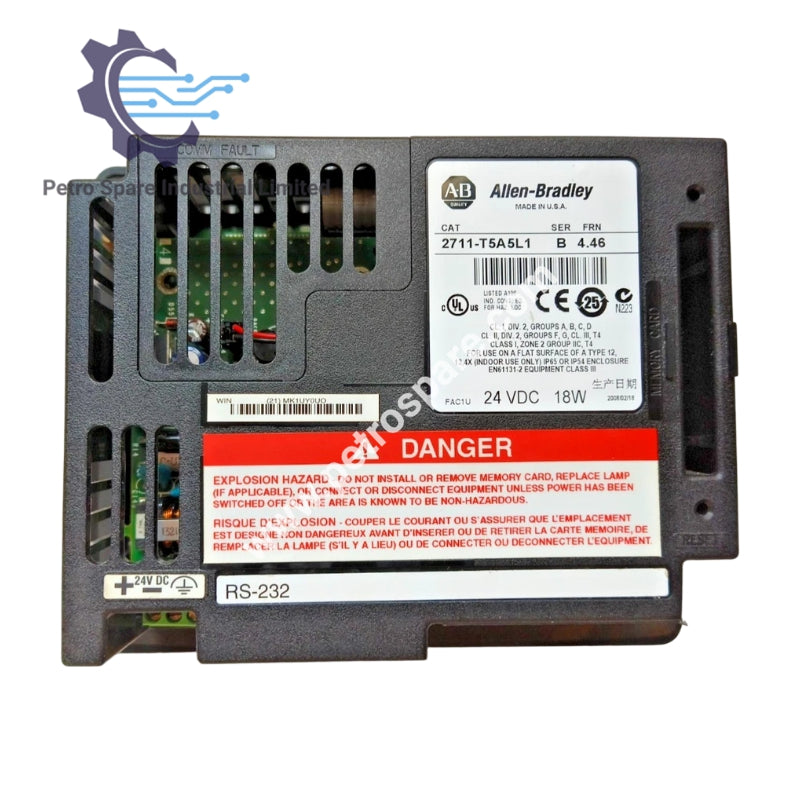

The 2711-T5A5L1 is a PanelView 550 Standard Operator Terminal.

Technical Specifications

Manufacturer: Allen Bradley
Product Line: PanelView 550
Product Family: PanelView Standard Terminals
Product Type: Operator Terminal

Display:
Display Type: LCD (Liquid Crystal Display)
Display Size: 5.5 in.
Display Area: 120 × 60 mm (4.75 × 2.38 in.)
Resolution: 256 × 128
Display Color: Monochrome (blue mode)
Backlight Life: LED, 100,000 hours

Input / Interface:
Input Type: Touch
Touchscreen: Analog resistive touchscreen
Touch Cell Size: 26 × 30 pixels

Communication:
Communication Ports: RS-232 (DH-485 protocol support)
Communication Type: DH-485 over RS-232
Communication Cable: 2711-NC13

Power:
Input Voltage Range: 18–30V DC (24V DC nominal)
Input Power: 24V DC

Memory:
Application Runtime Memory: 170 KB
Nonvolatile Memory: 240 KB

Environmental:
Operating Temperature: 0–55 °C (32–131 °F)
Heat Dissipation: 20 W (69 BTU/hr)

Physical:
Weight: 2.06 lbs (0.94 kg)

Product Lifecycle Status: Discontinued / Obsolete

---
