2711-T5A15L1

Product Overview

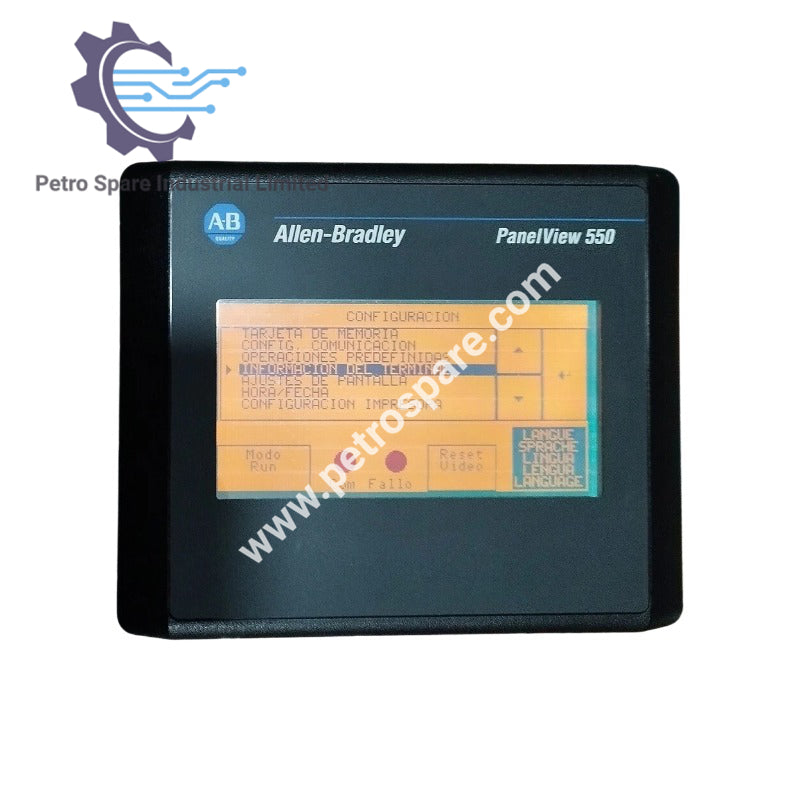

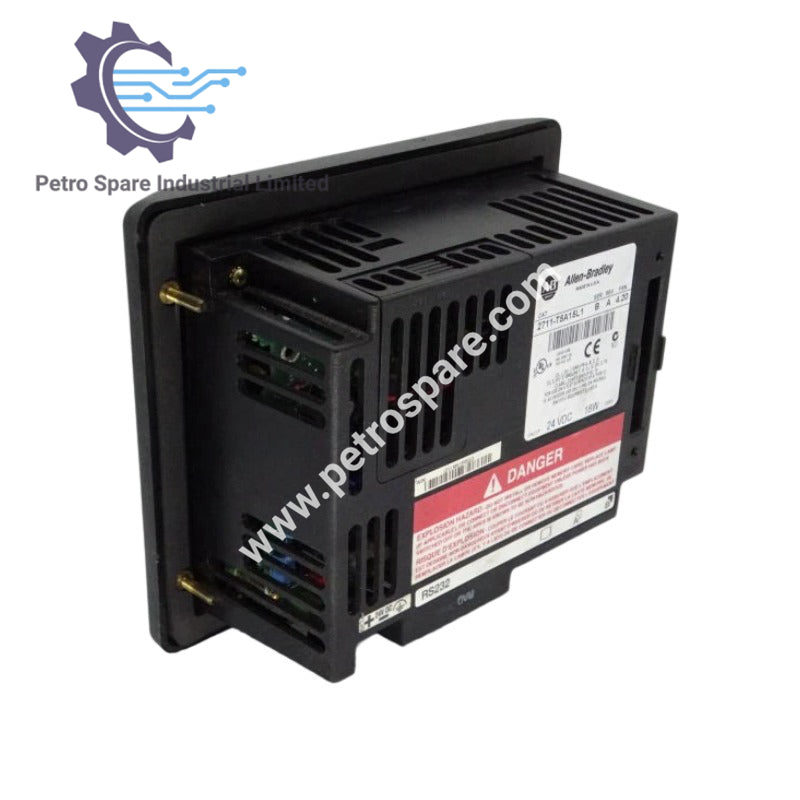

The Allen‑Bradley 2711-T5A15L1 is a PanelView 550 Standard operator terminal with a 5.5‑inch monochrome LCD blue mode display and touch input, designed for industrial HMI applications.

Display Specifications

• Display type: Monochrome LCD blue mode display.
• Display size: 5.5 in.
• Display color: Monochrome LCD blue mode.
• Display area: 120 x 60 mm (4.75 x 2.38 in.).
• Resolution: 256 x 128.
• Backlight: 100,000 hr LED backlight life.

Touchscreen

• Touch cells: 128.
• Actuation: 1 million presses.
• Touch cell size: 26 x 30 pixels.

Memory

• Application memory: 170 KB application runtime; 240 KB nonvolatile RAM (application objects plus text and bitmaps).
• Integrated memory: 170 KB application runtime; 240 KB nonvolatile memory.

Communication

• Communication ports: ControlNet; RS232 (printer).
• Communication: ControlNet Communication and RS‑232 Printer Port.
• Communication cable: 2711‑NC13.

Power Specifications

• Input voltage range: 18…32V DC.
• Nominal input supply: 24V DC.
• Input power: 24V DC.
• Heat dissipation: 20 W (69 BTU/HR).

Enclosure & Installed Depth

• Enclosure: NEMA Type 12/13, 4X (Indoor use only), IP54, IP65.
• Installed depth: 64 mm (2.54 in.); 109 mm (4.30 in.) with memory card retainer; 188 mm (7.40 in.) with memory card retainer and clearance to insert/remove memory card.

Temperature & Weight

• Operating temperature: 0…55°C (32…131°F).
• Weight: 2.31 lbs (1.05 kg).

---
