2300/20-00

Overview

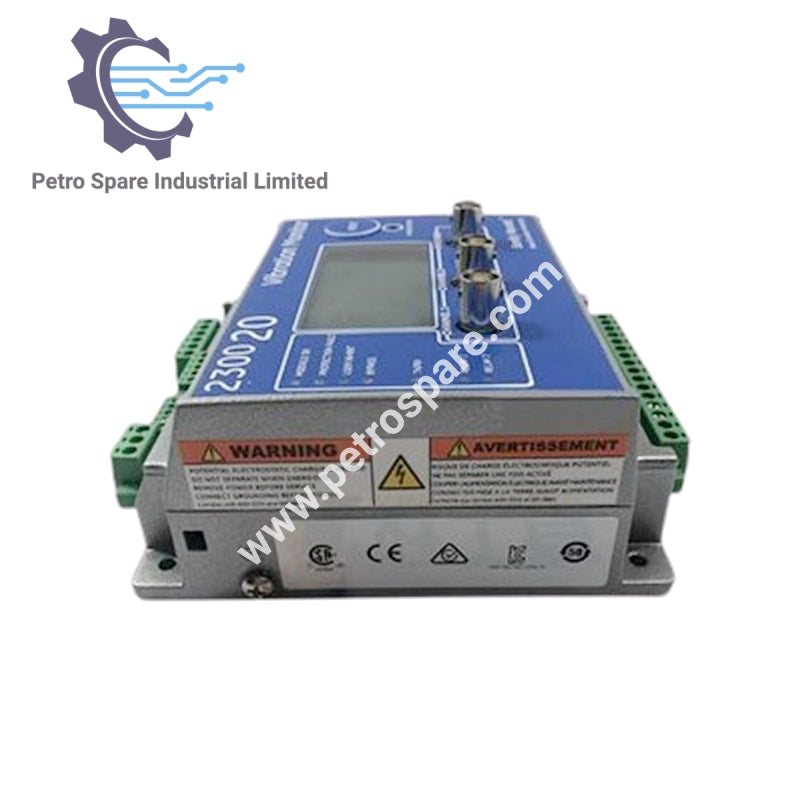

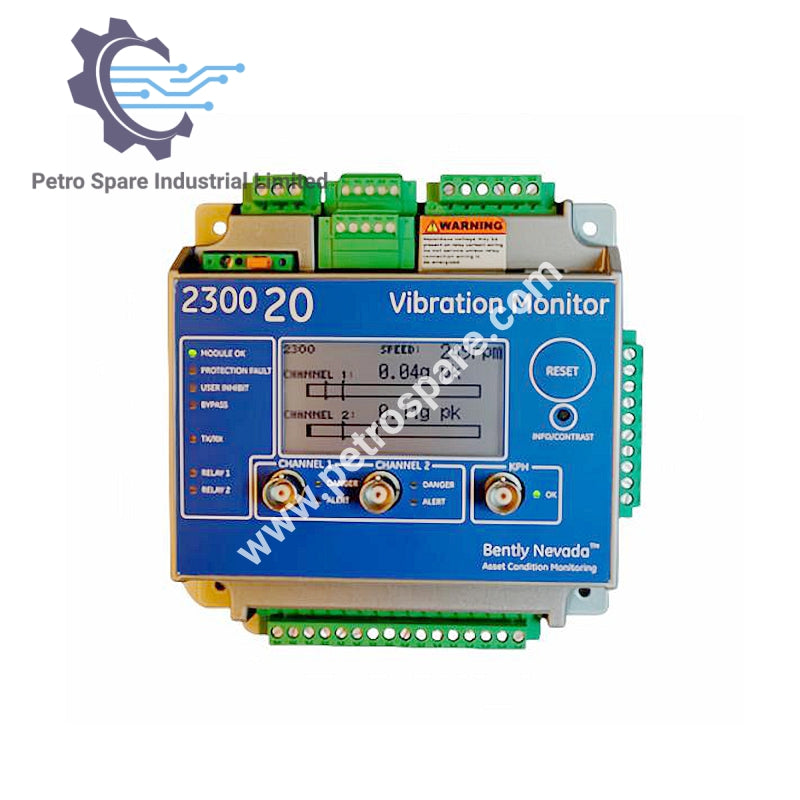

2300/20-00 is a Bently Nevada 2300 Series vibration monitor designed for machinery protection and condition monitoring, supporting ICP accelerometers with configurable outputs.

Identification

• Part number: 2300/20-00

• Series: 2300

• Approvals option: 00 (None)

Dimensions

• Width: 127 mm

• Depth: 127 mm

• Height: 76.2 mm

Power Input

• Voltage: 18–36 V DC

• Consumption: 7.5 W max

Signal Inputs

• Channel types: ICP accelerometers

• Bandpass filter: 0.2 Hz–20 kHz

• Scale factor range: 5–1000 mV/g

• Full scale range: 2–80 g peak

• Current sink/source: 3.3 mA ±5 %

• Open circuit voltage: –21 to –24 V DC

Outputs

• Buffered outputs: 3 (via BNC connectors)

• Vibration outputs: 2

• Speed output: 1

4–20 mA Output

• Channels: 2

• Voltage compliance: 0–12 V DC

• Load resistance: 0–600 Ω

• Resolution: 0.3662 µA

• Accuracy: 1 %

• Update rate: 100 ms

• Clamp current: 2 mA default

---
