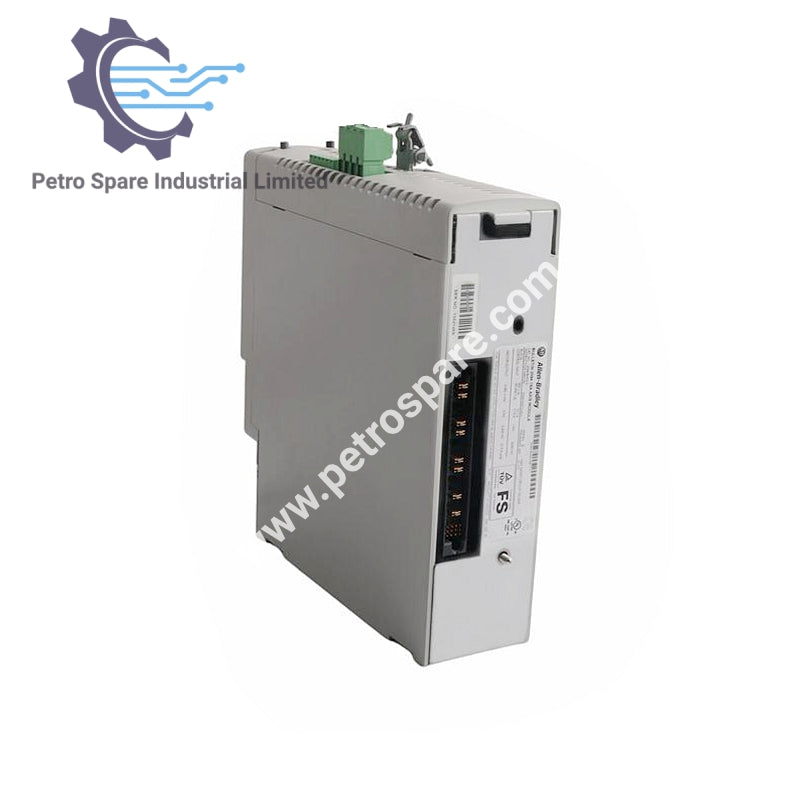

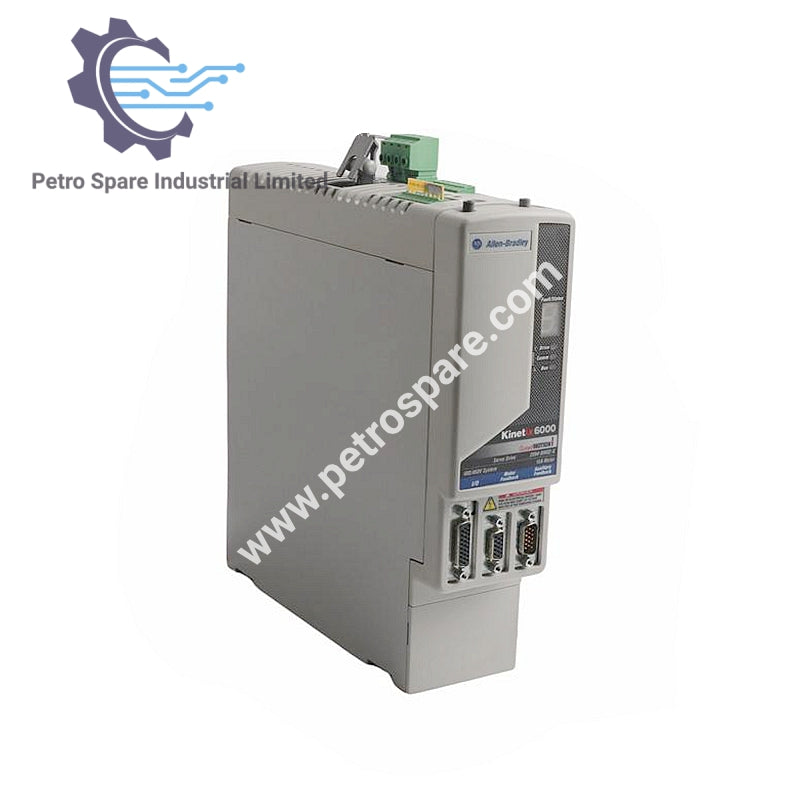

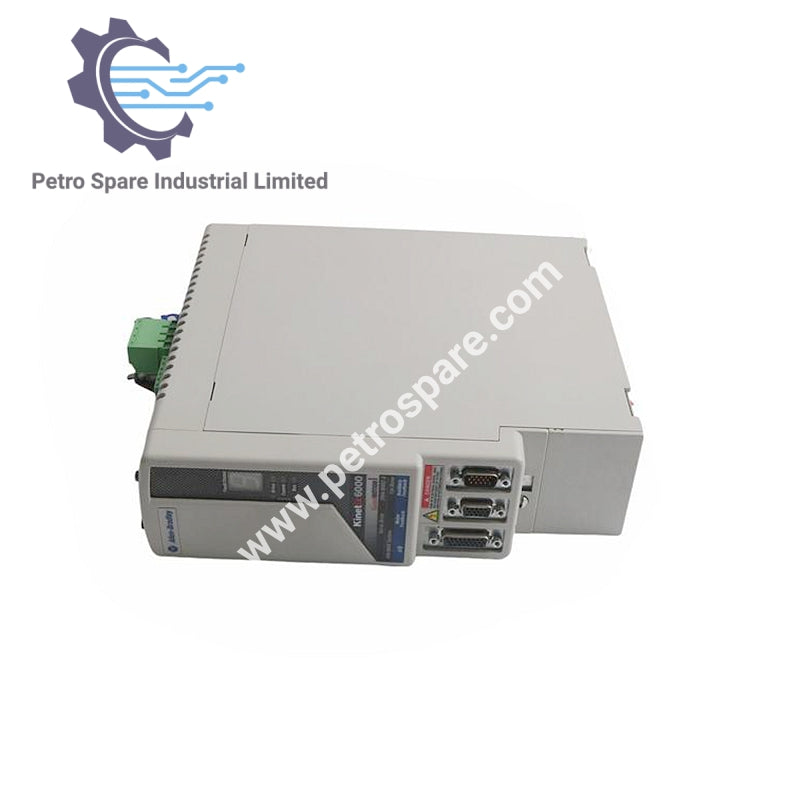

2094-BM02-S

Overview

• Model: 2094-BM02-S

• Type: Integrated Axis Module (AM, 400/460 V Class)

• Application: Axis module for Kinetix 6000 multi‑axis servo drive systems, supporting Safe Torque Off and advanced safety standards

Electrical Characteristics

• AC Input Voltage: 324 … 528 V rms, 3‑phase (nominal 360 … 480 V)

• AC Input Frequency: 47 … 63 Hz

• AC Input Frequency (nominal): 50/60 Hz

• AC Input Current (nominal rms): 24.0 A

• AC Input Current (max inrush, 0‑peak): 22.0 A

• DC Input Voltage (Common Bus Follower): 458 … 747 V

• DC Input Current (Common Bus Follower): 22.6 A

• Bus Power (continuous): 6.6 kW

• Output Current (continuous, rms): 10.3 A

• Output Current (continuous, 0‑peak): 14.6 A

Performance

• Velocity Loop Bandwidth: 500 Hz

• Current Loop Bandwidth: 1300 Hz

• PWM Output Frequency: 4 kHz

• Integration Type: Common AC bus capable, common DC bus capable

• Communications Protocols: SERCOS III

---
