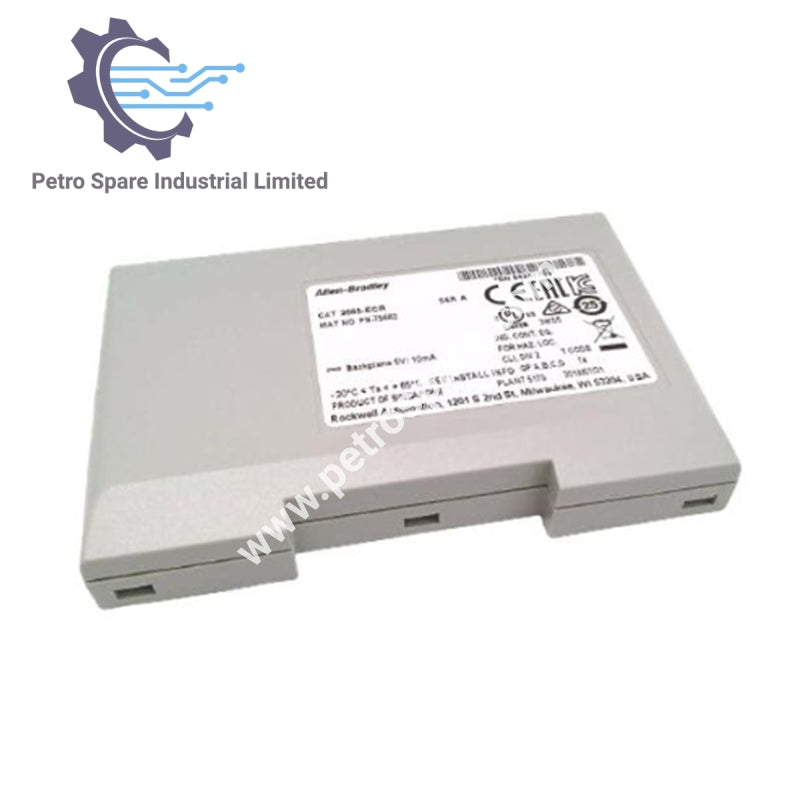

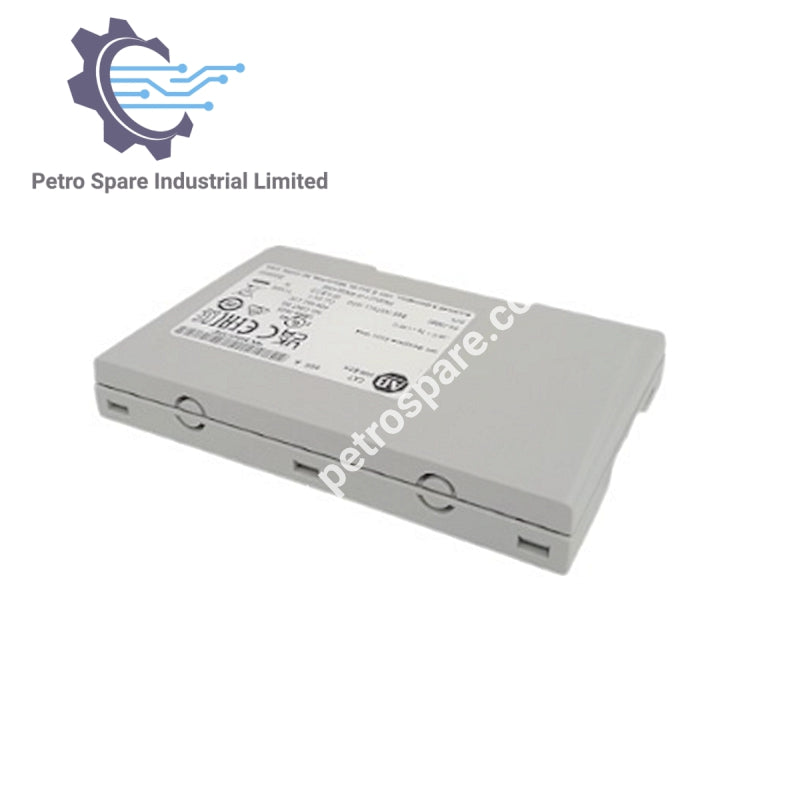

2085-ECR

Overview

• Model: 2085-ECR

• Type: Expansion Module End Cap Terminator

• Series: Allen-Bradley Micro800 (Micro850/870 Expansion I/O, Bulletin 2085)

• Component Type: PLC & I/O Specialty Module

• Shipping Weight: 50 g (1.76 oz)

Mechanical Specification

• Dimensions (H × W × D): 96.4 × 15.6 × 59.1 mm (3.8 × 0.62 × 2.33 in)

• Form Factor: End cap terminator for expansion I/O modules

Electrical & Functional Specification

• Module Function: Provides termination for Micro800 expansion I/O modules

• Specialty Role: Required to complete expansion module installation

Environmental Specification

• Operating Temp: -20 to 65 °C (-4 to 149 °F)

• Storage Temp: -40 to 85 °C (-40 to 185 °F)

• Relative Humidity: 5–95%, non-condensing

• Shock Acceleration (Max): 25 g

• Vibration Acceleration (Max): 2 m/s²

• Vibration Frequency (Operational Max): 500 Hz

---
