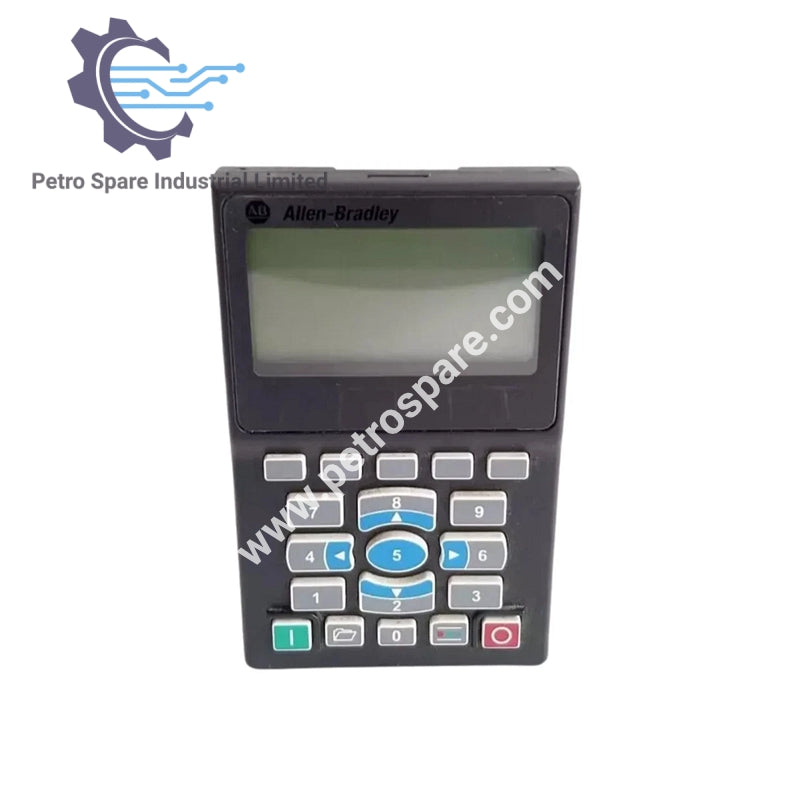

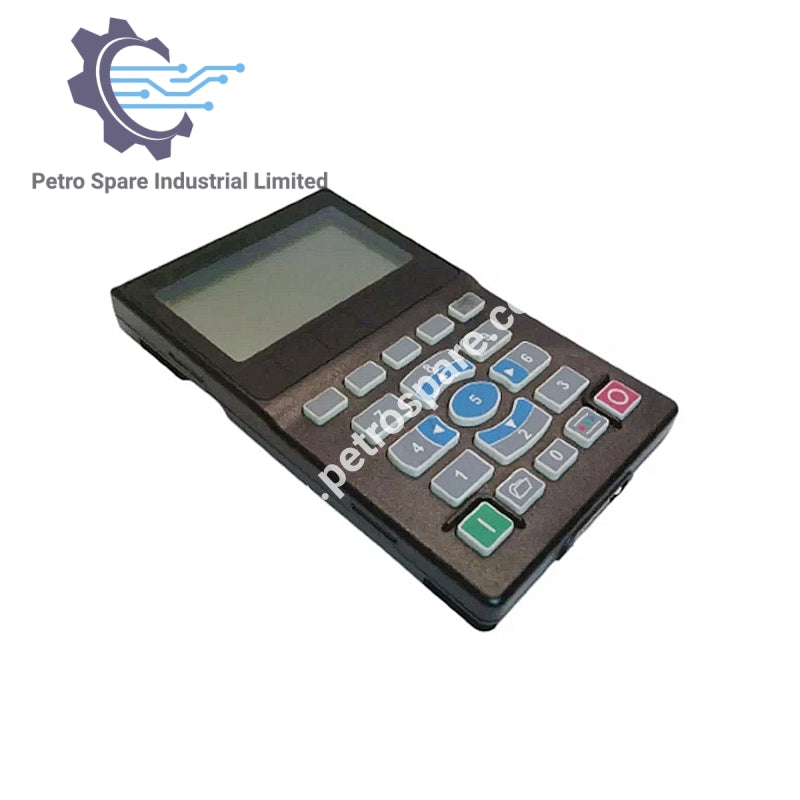

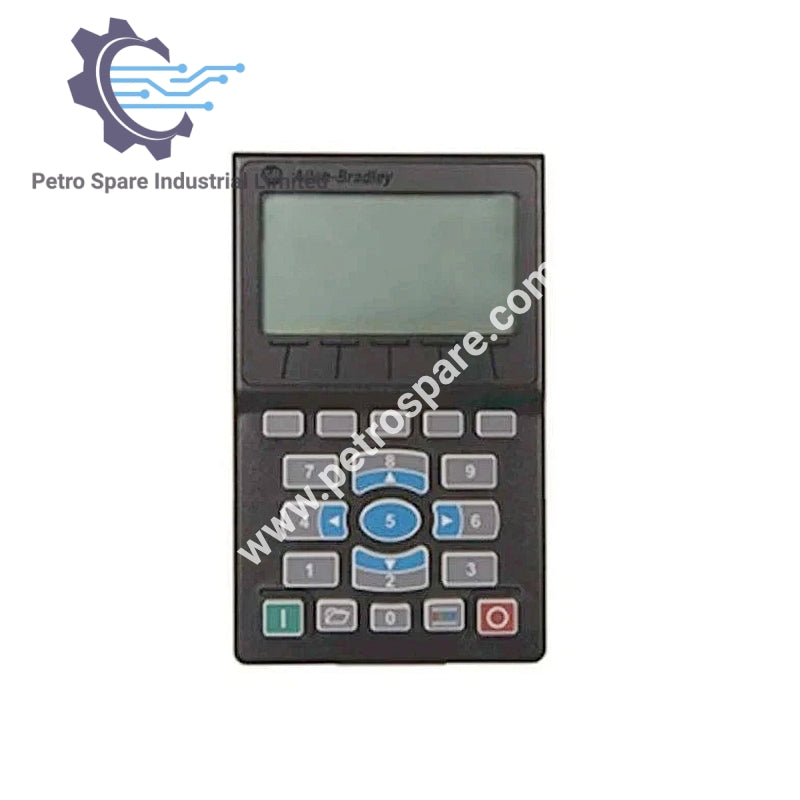

20-HIM-A6

Overview

• Model: 20-HIM-A6

• Type: Human Interface Module (HIM)

• Series: PowerFlex Accessories

• Display Type: LCD with full numeric keypad

• Protocol: Drive Peripheral Interface (DPI)

• Communication Port: 1 × DPI connector

Electrical Specification

• Supply Voltage: 12 VDC (from host drive)

• Current Consumption: 140 mA

• Data Rate: 125 / 500 Kbps

Mechanical Specification

• Mounting Style: Integrated or door/panel mount

• Protection Rating: NEMA 1 (when mounted)

Environmental Specification

• Operating Temperature Range: 0–50 °C (32–122 °F)

• Storage Temperature Range: -40–85 °C (-40–185 °F)

• Relative Humidity: 5–95%, non-condensing

• Shock Resistance: 30 G, 11 ms (±1 ms pulse)

• Vibration Resistance: 2.5 G @ 5 Hz–2 kHz

---
