1756-PLS

Product Overview

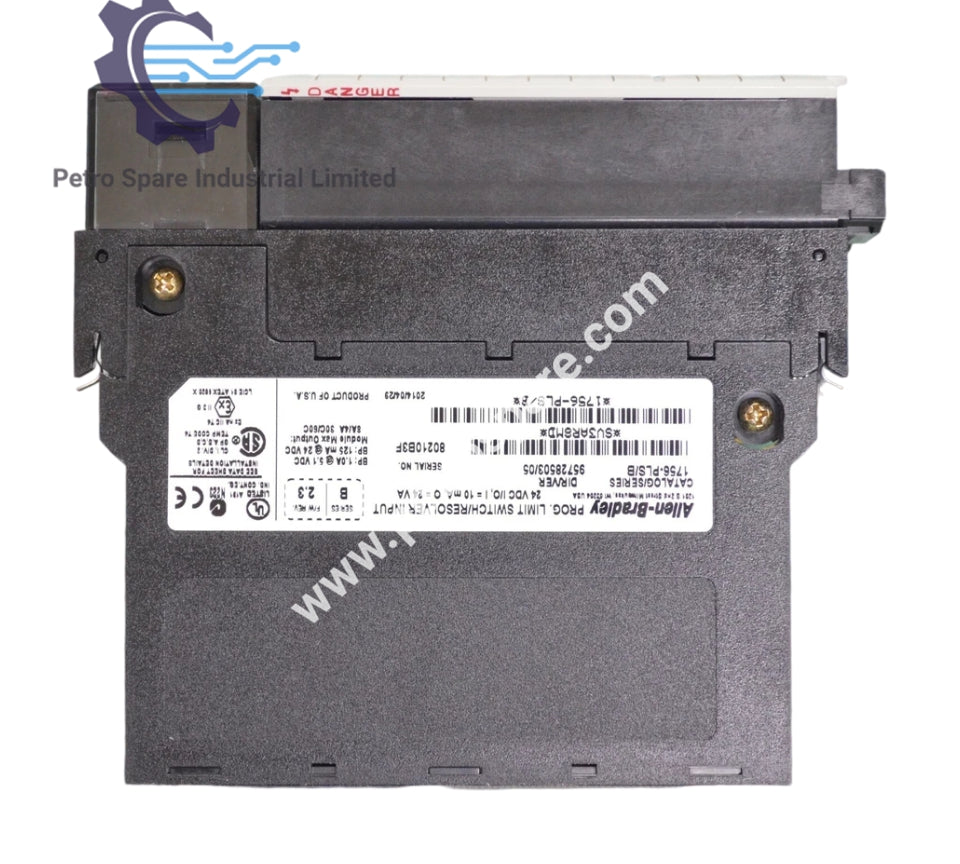

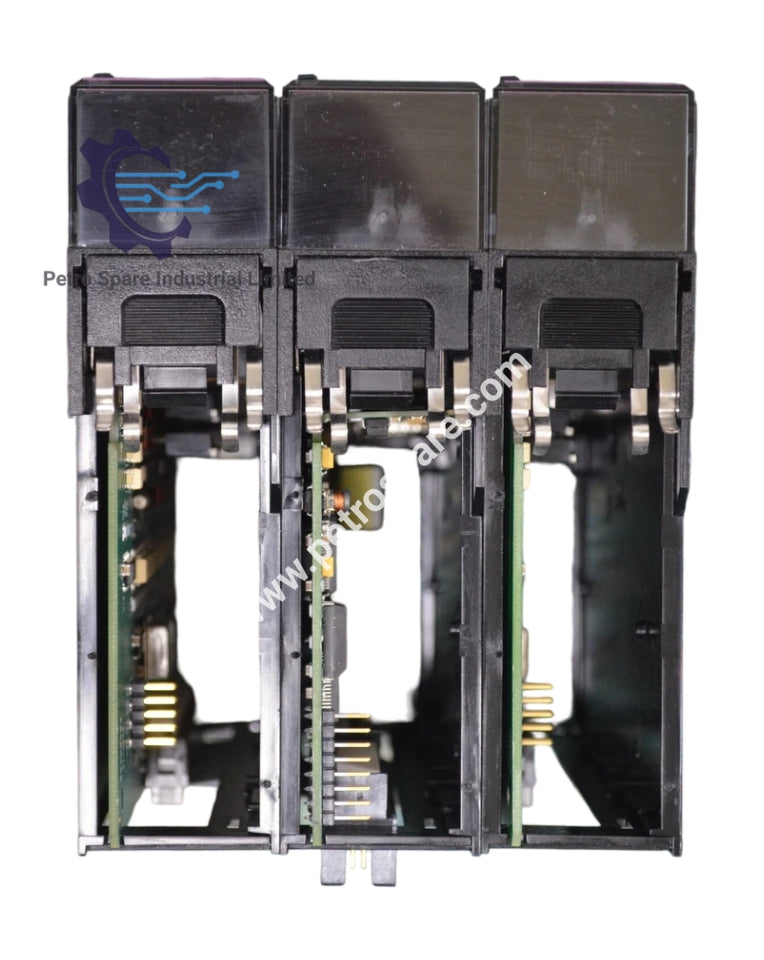

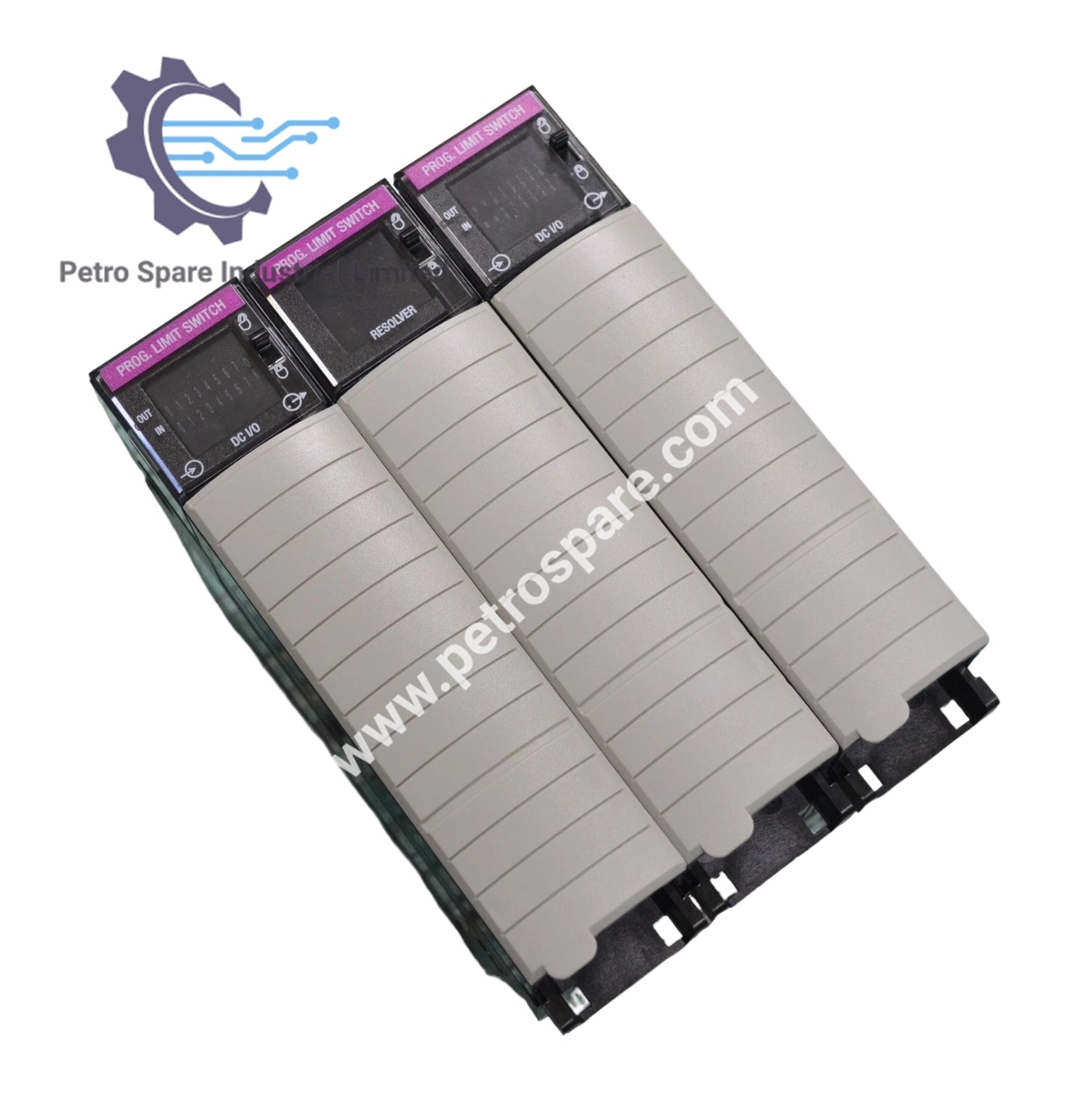

1756-PLS: The 1756-PLS is a programmable limit switch module that mounts in a ControlLogix chassis.

Technical Specifications

• Product Series: ControlLogix (Bul. 1756 / 1757)

• Product Type: Specialty Module

• Digital Output Type: 12/24V DC Sourcing / 12/24V DC Sink

• Number of Digital Outputs: 16

• Digital Input Type: 12/24V DC Sourcing / 12/24V DC Sink

• Number of Digital Inputs: 16

• Module Specific Functions: ControlLogix programmable limit switch module

• Operating Temperature, Max: 60 °C

• Operating Temperature, Min: 0 °C

• Storage Temperature, Max: 85 °C

• Storage Temperature, Min: -40 °C

• Relative Humidity, Max: 95 %RH

• Vibration Acceleration (Max.): 2 m/s²

• Vibration Frequency, Operational (Max.): 500 Hz

• Standards Compliance: Yes
